# What is incremental_update?

**incremental_update** is a mechanism that reduces processing time by leveraging the results of the previous **Unification** process and applying stitching only to updated records.

## How does incremental_update improve efficiency?

1. When `incremental_columns: [time]` is specified, the Unification Algorithm combines the previous final graph with the graph generated from newly added records. This allows the process to start from a state where most of the stitching is already complete, leading to faster convergence.
2. When `incremental_columns: [time]` is specified, the enrichment process applies the `canonical_id` only to the delta records. This significantly shortens processing time compared to enriching the `canonical_id` for all records.


## Dataset

Using the table from [Example](/products/customer-data-platform/id-unification/p3_canonical_id_learning) as a base, we will insert records during the **incremental_update** process and observe how the update is applied.

## Table Used in Example1

Assume the data from Example1 is stored in the `test_id_unification_ex5` database.

| date |  | site_aaa | site_aaa |  | site_xxx | site_xxx |  | site_yyy | site_yyy |  | site_zzz | site_zzz |
|  --- | --- | --- | --- | --- | --- | --- | --- | --- | --- | --- | --- | --- |
| month | day | td_client_id | td_global_id |  | td_client_id | td_global_id |  | td_client_id | td_global_id |  | td_client_id | td_global_id |
| 1 | 5 | aaa_001 | 3rd_001 |  |  |  |  | yyy_001 | 3rd_001 |  |  |  |
|  | 15 | aaa_001 | 3rd_002 |  |  |  |  |  |  |  | zzz_001 | 3rd_002 |
|  | 25 | aaa_001 | 3rd_003 |  |  |  |  |  |  |  |  |  |
| 2 | 5 | aaa_001 | 3rd_004 |  | xxx_001 | 3rd_004 |  |  |  |  |  |  |
|  | 15 |  |  |  | xxx_001 | 3rd_005 |  | yyy_002 | 3rd_005 |  |  |  |
|  | 25 |  |  |  |  |  |  | yyy_002 | 3rd_006 |  | zzz_003 | 3rd_006 |
| 3 | 5 |  |  |  |  |  |  |  |  |  | zzz_003 | 3rd_007 |
|  | 15 |  |  |  | xxx_002 | 3rd_008 |  |  |  |  | zzz_003 | 3rd_008 |
|  | 25 | aaa_002 | 3rd_009 |  | xxx_002 | 3rd_009 |  |  |  |  |  |  |
| 4 | 5 | aaa_002 | 3rd_010 |  |  |  |  | yyy_003 | 3rd_010 |  |  |  |
|  | 15 |  |  |  |  |  |  | yyy_003 | 3rd_011 |  | zzz_004 | 3rd_011 |
|  | 25 |  |  |  | xxx_003 | 3rd_012 |  |  |  |  | zzz_004 | 3rd_012 |
| 5 | 5 | aaa_003 | 3rd_013 |  | xxx_003 | 3rd_013 |  |  |  |  |  |  |
|  | 15 | aaa_003 | 3rd_014 |  |  |  |  |  |  |  |  |  |
|  | 25 | aaa_003 | 3rd_015 |  |  |  |  | yyy_004 | 3rd_015 |  | zzz_005 | 3rd_015 |
| 6 | 5 | aaa_003 | 3rd_016 |  | xxx_004 | 3rd_016 |  |  |  |  |  |  |
|  | 15 |  |  |  | xxx_004 | 3rd_017 |  |  |  |  | zzz_005 | 3rd_017 |
|  | 25 |  |  |  |  |  |  | yyy_005 | 3rd_018 |  | zzz_005 | 3rd_018 |


## Records to be Added Later

| date |  | site_aaa | site_aaa |  | site_xxx | site_xxx |  | site_yyy | site_yyy |  | site_zzz | site_zzz |
|  --- | --- | --- | --- | --- | --- | --- | --- | --- | --- | --- | --- | --- |
| month | day | td_client_id | td_global_id |  | td_client_id | td_global_id |  | td_client_id | td_global_id |  | td_client_id | td_global_id |
| 7 | 5 | aaa_004 | 3rd_017 |  | xxx_005 | 3rd_018 |  | yyy_006 | 3rd_019 |  | zzz_006 | 3rd_018 |
|  | 15 | aaa_004 | 3rd_018 |  |  |  |  |  |  |  | zzz_007 | 3rd_018 |
|  | 25 |  |  |  |  |  |  |  |  |  |  |  |
| 8 | 5 | aaa_005 | 3rd_018 |  | xxx_005 | 3rd_018 |  |  |  |  |  |  |
|  | 15 |  |  |  | xxx_006 | 3rd_019 |  | yyy_006 | 3rd_019 |  | zzz_008 | 3rd_019 |
|  | 25 | aaa_005 | 3rd_019 |  |  |  |  | yyy_007 | 3rd_019 |  |  |  |


We will add the above records midway and observe the **incremental_update** process.

## Workflow example

### id_unification_ex5.dig


```yaml
timezone: UTC # Asia/Tokyo
schedule:
  daily>: 09:00:00

+call_unification:
  http_call>: https://api-cdp.treasuredata.com/unifications/workflow_call
  headers:
    - authorization: ${secret:td.apikey}
  method: POST
  retry: true
  content_format: json
  content:

    run_canonical_ids: true
    run_enrichments: true
    run_master_tables: true

    full_refresh: false
    keep_debug_tables: true

    unification:
      !include : unification_ex5.yml
```

### unification_ex5.yml


```yaml
name: test_id_unification_ex5

keys:
  - name: td_client_id
  - name: td_global_id

tables:
  - database: test_id_unification_ex5
    table: site_aaa
    incremental_columns: [time]
    key_columns:
      - {column: td_client_id, key: td_client_id}
      - {column: td_global_id, key: td_global_id}
  - database: test_id_unification_ex5
    table: site_xxx
    incremental_columns: [time]
    key_columns:
      - {column: td_client_id, key: td_client_id}
      - {column: td_global_id, key: td_global_id}

  - database: test_id_unification_ex5
    table: site_yyy
    incremental_columns: [time]
    key_columns:
      - {column: td_client_id, key: td_client_id}
      - {column: td_global_id, key: td_global_id}

  - database: test_id_unification_ex5
    table: site_zzz
    incremental_columns: [time]
    key_columns:
      - {column: td_client_id, key: td_client_id}
      - {column: td_global_id, key: td_global_id}

canonical_ids:
  - name: unified_cookie_id
    merge_by_keys: [td_client_id, td_global_id]
    merge_iterations: 5
    incremental_merge_iterations: 3

master_tables:
  - name: master_table_ex5
    canonical_id: unified_cookie_id
    attributes:
    - name: td_client_id
      array_elements: 5
      source_columns:
        - {table: site_aaa, order: last, order_by: time, priority: 1}
        - {table: site_xxx, order: last, order_by: time, priority: 1}
        - {table: site_yyy, order: last, order_by: time, priority: 1}
        - {table: site_zzz, order: last, order_by: time, priority: 1}
    - name: td_global_id
      array_elements: 5
      source_columns:
        - {table: site_aaa, order: last, order_by: time, priority: 1}
        - {table: site_xxx, order: last, order_by: time, priority: 1}
        - {table: site_yyy, order: last, order_by: time, priority: 1}
        - {table: site_zzz, order: last, order_by: time, priority: 1}
```

## Settings for incremental_update

### full_refresh: false


```yaml
  content:

    run_canonical_ids: true
    run_enrichments: true
    run_master_tables: true

    full_refresh: false
    keep_debug_tables: true

    unification:
      !include : unification_ex5.yml
```

By setting `full_refresh: false` in the `content:` section of the dig file, you enable the configuration for `incremental_update`. However, note that `incremental_update` is not performed on a daily basis. Instead, a `full_refresh` (processing all records as usual) is performed once every three days.

### incremental_columns:

Warning
Currently, any setting other than `incremental_columns: [time]` will result in all processes being executed as `full_refresh`. Avoid using other configurations.


```yaml
tables:
  - database: test_id_unification_ex5
    table: site_aaa
    incremental_columns: [time]
    key_columns:
      - {column: td_client_id, key: td_client_id}
      - {column: td_global_id, key: td_global_id}
```

In the `tables:` section of the YAML file, you can configure `incremental_columns: [column1, column2,...]` for each table. When the `+get_next_high_water_mark` task records where processing left off, the order specified in this option will be used for sorting:


```SQL
ORDER BY column1 DESC, column2 DESC,...
```

The first row in this sorted order (the most recent record) will have its column1, column2,... values recorded.

If this option is not set, the `+get_next_high_water_mark` task will not run. The Unification Algorithm will operate in a manner similar to `full_refresh`, and all records in the `enriched_` tables will be replaced.

#### incremental_columns: [time]

When `incremental_columns: [time]` is specified (only the `time` column is defined), the process qualifies as `incremental_update`. The Unification Algorithm considers only newly added records, and instead of replacing entire `enriched_` tables, enrichment is performed on newly added records and appended to the table. As of now, only the `[time]` setting enables efficient incremental updates, so keep this in mind.

### incremental_merge_iterations:


```yaml
canonical_ids:
  - name: unified_cookie_id
    merge_by_keys: [td_client_id, td_global_id]
    merge_iterations: 5
    incremental_merge_iterations: 3
```

In the `canonical_ids:` configuration, the number of iterations for loops during `incremental_update` can be specified using `incremental_merge_iterations:`. If not set, the default value is `2`.

## How to Verify if incremental_update Was Performed

A `full_refresh` is performed once every three days, while `incremental_update` is executed on other days. On the second or third day of the schedule execution, check the most recent session (history) of the workflow (WF) using the methods below to identify sessions where `incremental_update` was processed.

### Method 1: Check the +extract_and_merge Task


```SQL
drop table if exists "unified_cookie_id_graph_unify_loop_0";
create table "unified_cookie_id_graph_unify_loop_0" with (bucketed_on = array['follower_id'], bucket_count = 512) as
-- incremental extraction and merge to the previous graph
select
  coalesce(prev.follower_id, next.follower_id) as follower_id,
  coalesce(prev.follower_ns, next.follower_ns) as follower_ns,
```

If the comment just above the `select` statement reads:


```SQL
-- incremental extraction and merge to the previous graph
```

then this WF session performed an `incremental_update`. Conversely, for `full_refresh`, the comment will read:


```SQL
-- full extraction
```

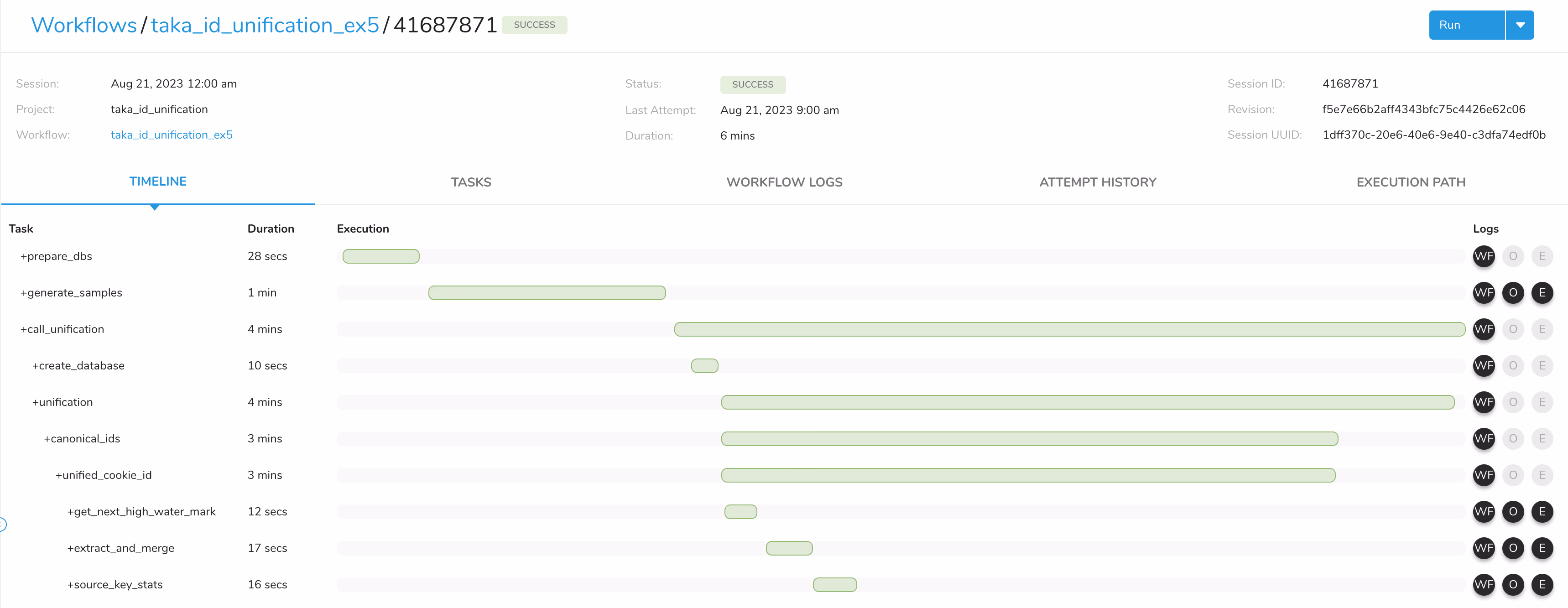

### Method 2: Check if the +source_key_stats Task Was Executed

![canonical_id_1](/assets/8-1-1.c0a099edd6327582c58fa5ccb880ffdbcbf6fd79c20c84ab967c92643ece2699.b7a43e2a.avif)

In the TIMELINE or TASKS section of the WF session, if the `+source_key_stats:` task was executed, it indicates a `full_refresh`. If this task was not executed, it signifies an `incremental_update`.

On days when `incremental_update` is executed, you can add new records using the [SQL for Appending Records](https://github.com/treasure-data/treasure-boxes/blob/master/tool-box/id-unification-samples/queries/insert_samples_ex5.sql) and rerun the WF to confirm the processing of newly added records during the `incremental_update`.

## Explanation of the Unification Algorithm

### graph_unify_loop_0

In an `incremental_update`, the creation of the initial graph differs. The initial graph is formed by combining the following two graphs:

1. The graph for newly added records
2. The final graph from the previous execution


#### 1. The Graph for Newly Added Records

![canonical_id_1](/assets/graph_unify_loop_0.46e50526aa92b099b1896d60907469d84f80226d10aa858b8026611e611ed92d.b7a43e2a.avif)

#### 2. The Final Graph from the Previous Execution

![canonical_id_1](/assets/graph_unify_loop_4.eeb038dad40ab18297837ed8929da6c3bf2680ba3067a9b2626b7d81b27d2f5c.55be243a.avif)

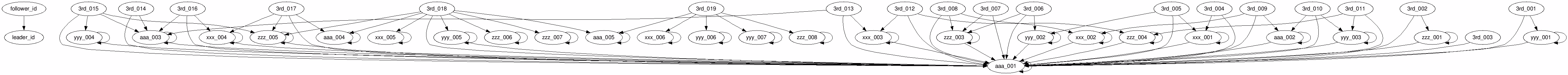

#### graph_unify_loop_0

The initial graph for `incremental_update` is the result of combining these two graphs.

![canonical_id_1](/assets/graph_unify_loop_0.ef5ff3880e9ed2bebd162c3a783164138edc6bbfbeb7535283ce74fd5a9abb7d.1622d91e.avif)

Starting from this graph allows the algorithm to converge with fewer iterations. In most cases, during the first loop, when the leader is replaced, it converges to `aaa_001` (see Example 2), bringing it closer to convergence.

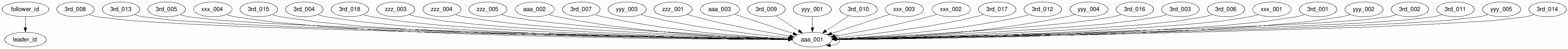

### graph_unify_loop_1 (and Similar Graphs for 2, etc.)

![canonical_id_1](/assets/graph_unify_loop_1.b592f2309152450e6335ca66d049c0b3b77649338f04db1a7c6488fc527c9e63.1622d91e.avif)

In practice, it is confirmed that the graph converges in the first iteration.

## Output

### master_table

Since the newly added records also belong to the same individual, the `master_table` consists of a single record. The `canonical_id` is generated based on `aaa_001`, so its value remains unchanged from the previous execution.

#### Result Example

| unified_cookie_id | td_client_id | td_global_id |
|  --- | --- | --- |
| Su-bHvUu9NN_ | ["yyy_007", "aaa_005", "xxx_006", "yyy_006", "zzz_008"] | ["3rd_019", "3rd_019", "3rd_019", "3rd_019", "3rd_019"] |


### enriched_ Table

Under the configuration `incremental_columns: [time]`, when an `incremental_update` is performed, `canonical_id` is not assigned to all records in the `enriched_` Table with a Replace operation. Instead, `canonical_id` is assigned only to the updated records, and these are appended to the existing `enriched_` Table. This drastically reduces the time required for the enrichment task.

## Limitation for incremental_update

### When Records from the Past are Deleted or Updated

In `incremental_update`, any deletions or updates to past records are not taken into the ID unification immediately. This requires careful attention. However, since a `full_refresh` is performed once every three days, those changes will be addressed during that process.
