# What is do_not_merge_key?

The `do_not_merge_key:` option applies stitching rules that differ from the traditional Unification stitching rules:

1. If the values of the key specified in `do_not_merge_key:` are different, records must **not** be stitched together (even if other keys link them).
2. Records without this key's value can be stitched together using other keys.


## When to Use `do_not_merge_key`

1. You have a unique key (e.g., `member_id`, `customer_id`) to ensure personal uniqueness.
2. For records lacking this key, you want to stitch based on secondary keys (e.g., `email`, `tel`) wherever possible.


By setting `do_not_merge_key: member_id`, records with distinct `member_id`s remain separate. For records without `member_id`, stitching proceeds using the available keys.

Let's deepen our understanding with specific examples.

## Dataset

This page use a single, simple table for this example.

### site_aaa

| member_id | email | tel | name |
|  --- | --- | --- | --- |
| 1 | a@ex.com | 1111 | Taka |
| 2 | a@ex.com | 2222 | Tatsuo |
| 3 | b@ex.com | 3333 | Naruse |
| 3 | b@ex.com | 4444 | Yuichiro |
| NULL | c@ex.com | 5555 | Minero |
| NULL | c@ex.com | 6666 | Kaz |


### id_unification_ex4.dig

First, let's introduce the Workflow (WF) to be executed in this section.


```yaml
+call_unification:
  http_call>: https://api-cdp.treasuredata.com/unifications/workflow_call
  headers:
    - authorization: ${secret:td.apikey}
  method: POST
  retry: true
  content_format: json
  content:

    run_canonical_ids: true
    run_enrichments: true
    run_master_tables: true

    full_refresh: true
    keep_debug_tables: true

    unification:
      !include : unification_ex4.yml
```

### unification_ex4.yml


```yaml
name: test_id_unification_ex4

keys:
  - name: member_id
  - name: email

tables:
  - database: test_id_unification_ex4
    table: site_aaa
    key_columns:
      - {column: member_id, key: member_id}
      - {column: email, key: email}

canonical_ids:
  - name: person_id
    merge_by_keys: [member_id, email]
    merge_iterations: 3
    do_not_merge_key: member_id

master_tables:
  - name: master_table_ex4
    canonical_id: person_id
    attributes:
      - name: member_id
        source_columns:
          - {table: site_aaa, priority: 1}
      - name: email
        source_columns:
          - {table: site_aaa, priority: 1}
      - name: tel
        array_elements: 2
        source_columns:
          - {table: site_aaa, priority: 1}
      - name: name
        array_elements: 2
        source_columns:
          - {table: site_aaa, priority: 1}
```

## Cases Where Default ID Unification Falls Short

For example, consider scenarios where the email used as a key includes shared addresses like mailing lists or family emails. In such cases, linking data based solely on email might mistakenly associate different individuals.

- However, removing email as a key would hinder proper stitching.
- On the other hand, there may also be keys like `member_id` that ensure personal uniqueness.


Here’s a potential stitching approach you might consider:

1. Prioritize stitching based on the values of `member_id` wherever possible.
2. If no `member_id` value exists, attempt stitching using email as a secondary key.


Let’s revisit the table below.

| member_id | email | tel | name |
|  --- | --- | --- | --- |
| 1 | a@ex.com | 1111 | Taka |
| 2 | a@ex.com | 2222 | Tatsuo |
| 3 | b@ex.com | 3333 | Naruse |
| 3 | b@ex.com | 4444 | Yuichiro |
| NULL | c@ex.com | 5555 | Minero |
| NULL | c@ex.com | 6666 | Kaz |


Given this data:

- Rows 1 and 2 share the same email but different `member_id`s, so they shouldn’t be merged.
- Rows 3 and 4 share the same `member_id` and should be merged.
- Rows 5 and 6 lack `member_id`, so they should be merged based on email.


This ideal stitching behavior could be achieved using a specific unification option: `do_not_merge_key`.

## Without Using `do_not_merge_key`

Let’s consider a conventional approach without `do_not_merge_key` by configuring `canonical_ids` as shown below:


```yaml
canonical_ids:
  - name: person_id
    merge_by_keys: [member_id, email]
    merge_iterations: 3
```

The output (`enriched_site_aaa` table) wouldn’t meet expectations. Rows 1 and 2, despite having different `member_id`s, are treated as the same individual because they share the same email. This happens even though their shared email is merely a mailing list address.

| member_id | email | tel | name | canonical_id |
|  --- | --- | --- | --- | --- |
| 1 | a@ex.com | 1111 | Taka | 4ydklKlyPnfa |
| 2 | a@ex.com | 2222 | Tatsuo | 4ydklKlyPnfa |
| 3 | b@ex.com | 3333 | Naruse | xqaWYjT4GR3a |
| 3 | b@ex.com | 4444 | Yuichiro | xqaWYjT4GR3a |
| NULL | c@ex.com | 5555 | Minero | NEKDReELMAx |
| NULL | c@ex.com | 6666 | Kaz | NEKDReELMAx |


How can we ensure rows 1 and 2 are treated as different individuals?

## Using `do_not_merge_key`

Next, let’s configure `canonical_ids` with the `do_not_merge_key` option and execute the unification:


```yaml
canonical_ids:
  - name: person_id
    merge_by_keys: [member_id, email]
    merge_iterations: 3
    do_not_merge_key: member_id
```

This results in the desired output where rows 1 and 2 are treated separately, while rows 5 and 6 are merged based on email.

| member_id | email | tel | name | canonical_id |
|  --- | --- | --- | --- | --- |
| 1 | a@ex.com | 1111 | Taka | 4ydklKlyPnfa |
| 2 | a@ex.com | 2222 | Tatsuo | XNKI3XAY1Hja |
| 3 | b@ex.com | 3333 | Naruse | xqaWYjT4GR3a |
| 3 | b@ex.com | 4444 | Yuichiro | xqaWYjT4GR3a |
| NULL | c@ex.com | 5555 | Minero | NEKDReELMAx |
| NULL | c@ex.com | 6666 | Kaz | NEKDReELMAx |


The `master_table` output is as follows:

| person_id | member_id | email | tel | name |
|  --- | --- | --- | --- | --- |
| 58MMqWNFdAhu | 1 | a@ex.com | [1111] | ["Taka"] |
| WDbg4Lovngdu | 2 | a@ex.com | [2222] | ["Tatsuo"] |
| wkL-X_7PU2Ju | 3 | b@ex.com | [4444, 3333] | ["Yuichiro", "Naruse"] |
| UVs_qHcWwZnz | NULL | c@ex.com | [6666, 5555] | ["Kaz", "Minero"] |


## Explanation of Unification Algorithm

The Unification Algorithm for this case is explained.

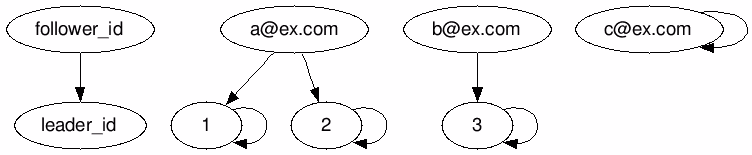

### graph_unify_loop_0 (1,2,3,graph also)

![canonical_id_1](/assets/graph_unify_loop_0.129fa62cb7c5b49d11a529d4000ba9f21e0fbcc81518bca666605cf3bfb06cbe.d0727cad.avif)

In fact, the initial graph is the final state this time.
In the conventional Algorithm, "leader_id: 2" should be replaced (merged) by "leader_id: 1" , but `do_not_merge_key:` is set to member_id, so that it is not merged. So, no further changes are made.

### Generation and assignment of `canonical_id`

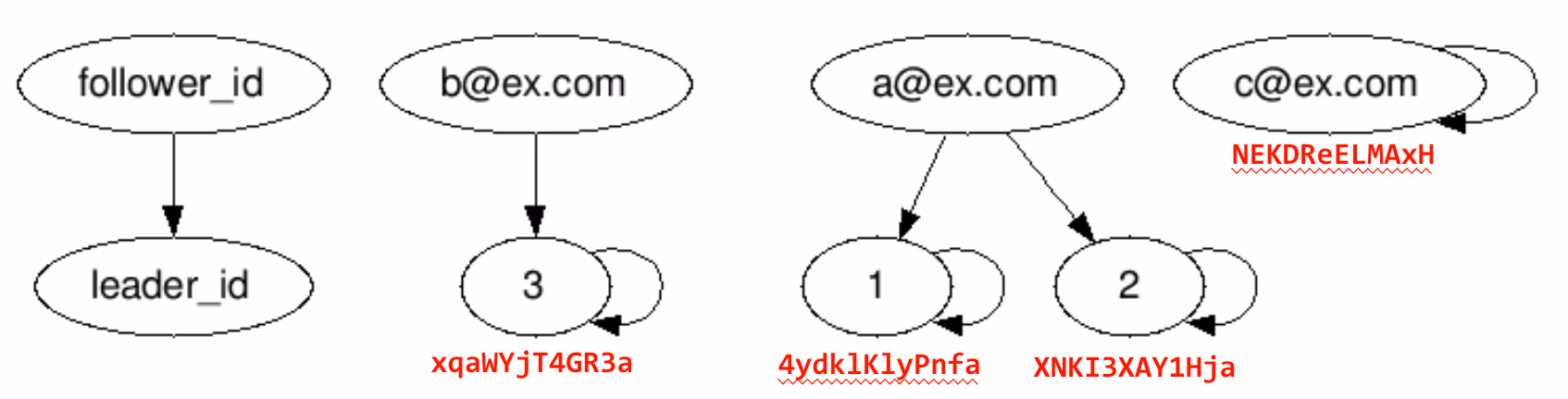

In this case, four different `canonical_ids` will be generated.

![canonical_id_1](/assets/7-2-1.1644eded0d718158cff2cdc00623d8d470eed253436d1dd1e680e83f52b38f3d.d0727cad.avif)

The difference is that "follower: a@ex.com" points to two leaders, "member_id: 1" and "member_id: 2," regardless of the state of convergence.

In fact, there are 2 rows of records for a@ex.com in the lookup table.

| id | `canonical_id` |
|  --- | --- |
| 1 | 4ydklKlyPnfa |
| 2 | XNKI3XAY1Hja |
| 3 | xqaWYjT4GR3a |
| a@ex.com | 4ydklKlyPnfa |
| a@ex.com | XNKI3XAY1Hja |
| b@ex.com | xqaWYjT4GR3a |
| c@ex.com | NEKDReELMAxH |


This means that the algorithm has converged without "all the followers point to only one leader," which is one of the [methods to determine algorithm convergence](/products/customer-data-platform/id-unification/p9_knowledge). However, the other method, "checking the output of the `+report_diff` task in WF Logs" is still valid.

## Cases where do_not_merge_key should be used

Finally, let's review the cases in which do_not_merge_key should be used. 1.

1. (Assumption) You have one key whose uniqueness is guaranteed (e.g. member_id, customer_id, etc.).
2. for records that do not have the value of key 1., we want to proceed with stitching as much as possible, using a key whose uniqueness is not partially guaranteed (e.g., email, tel, etc.).


In this case, if you set `do_not_merge_key: member_id`, the records will be judged as different persons even if other keys are stitched with the same value, as long as member_id is different. However, for records that do not have member_id, other keys are stitched together to the maximum extent possible.
