# Squirrel SQL Install and Use With TD

SQuirreL SQL is an open-source Java SQL Client program for any JDBC compliant database. You can use SQuirrelSQL as a SQL authoring tool to interactively develop SQL queries with Treasure Data.

Your screens might be different from these.

* [Install SQuirrel](#install-squirrel)
* [Download Treasure Data JDBC Driver](#download-treasure-data-jdbc-driver)
* [Add Treasure Data JDBC Driver](#add-treasure-data-jdbc-driver)
* [Connect to Treasure Data](#connect-to-treasure-data)
* [Issue the Query](#issue-the-query)


# Install SQuirrel

Download the latest SQuirreL SQL installer as a JAR file:

* [SQuirrel SQL: Download and Installation](http://squirrel-sql.sourceforge.net/)

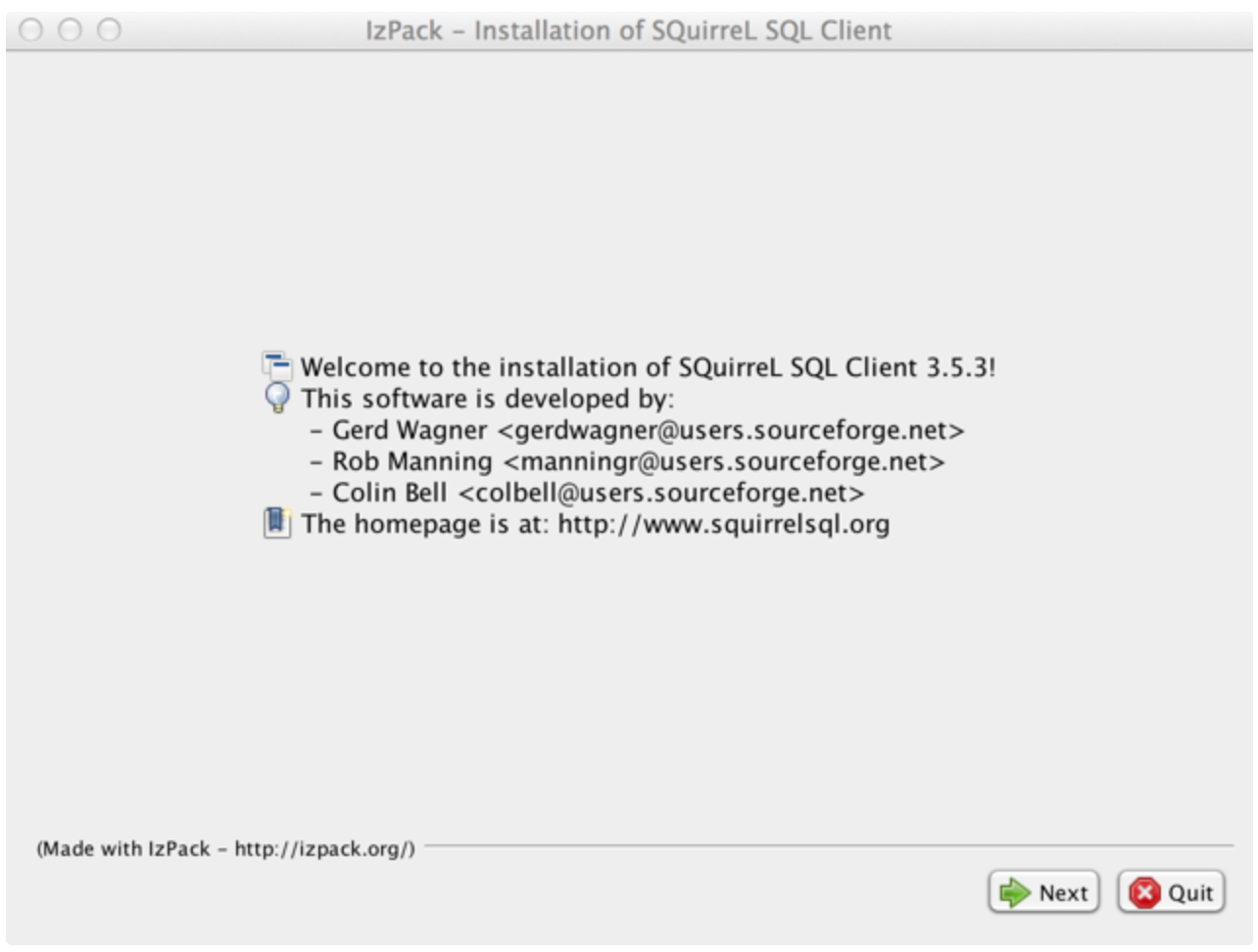

After you execute the JAR file, the installer starts.

Select **Next** to proceed through the installation.

![](/assets/image-20190926-193727.064c6b5fe669d7fb5d5ef348370b5e6e9de7a8df51eae0f92c660074747d0826.60bcc915.png)

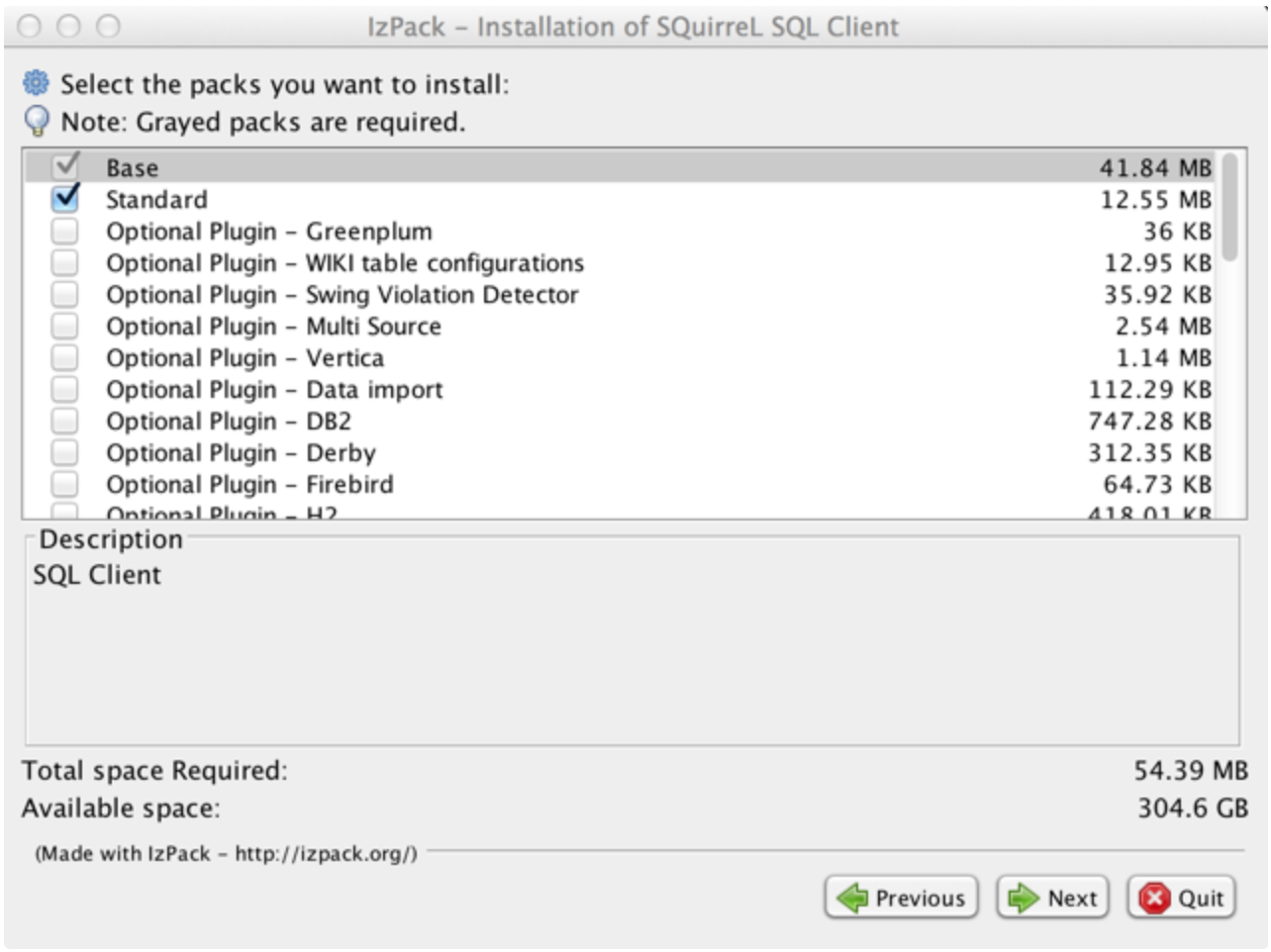

Only the Standard pack is required for Treasure Data.

![](/assets/image-20190926-193807.36e99493b92194c7dfc4ba4f4a58cdbbd038840fcdf04d45c7548cdf749de3b2.60bcc915.png)

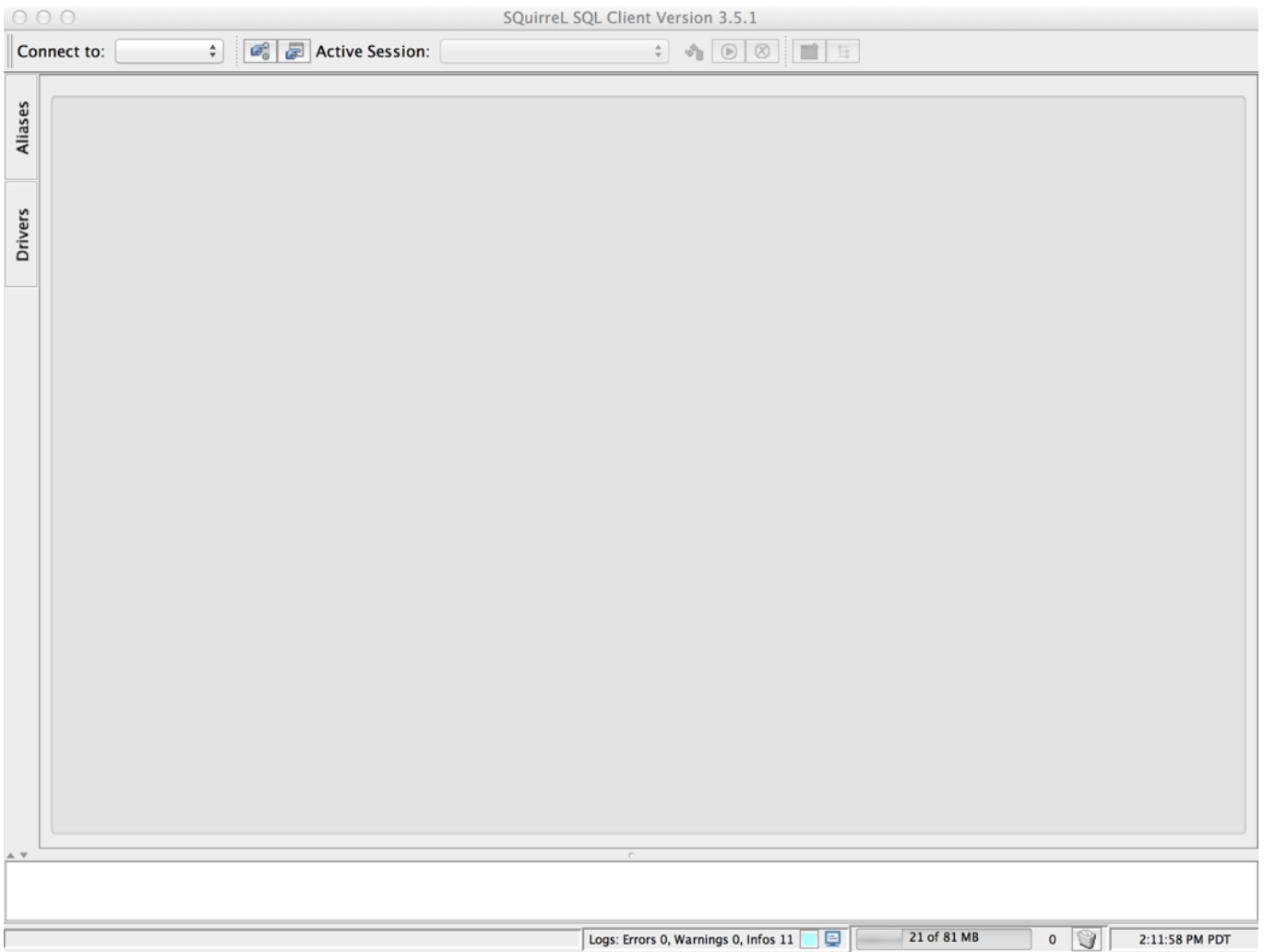

When the installation is complete, launch SQuirreL SQL.

![](/assets/image-20190926-193842.4de3fe4cfa3256c8bb5bfb23bdb5d4073565d6accae1a7d4e75378ad33ddda60.60bcc915.png)

# Download Treasure Data JDBC Driver

Download Treasure Data’s JDBC Driver:

[JDBC Driver Download](/products/customer-data-platform/data-workbench/queries/hive/quickstart)

Then, put the driver into the SQuirreL SQL's driver directory.


```bash
$ mv td-jdbc-0.2.10-jar-with-dependencies.jar /Applications/SQuirreLSQL.app/Contents/Resources/Java/lib/
```

The target directory is $SQUIRREL_SQL_INSTALL_PATH/lib/ on Windows and Linux.

# Add Treasure Data JDBC Driver

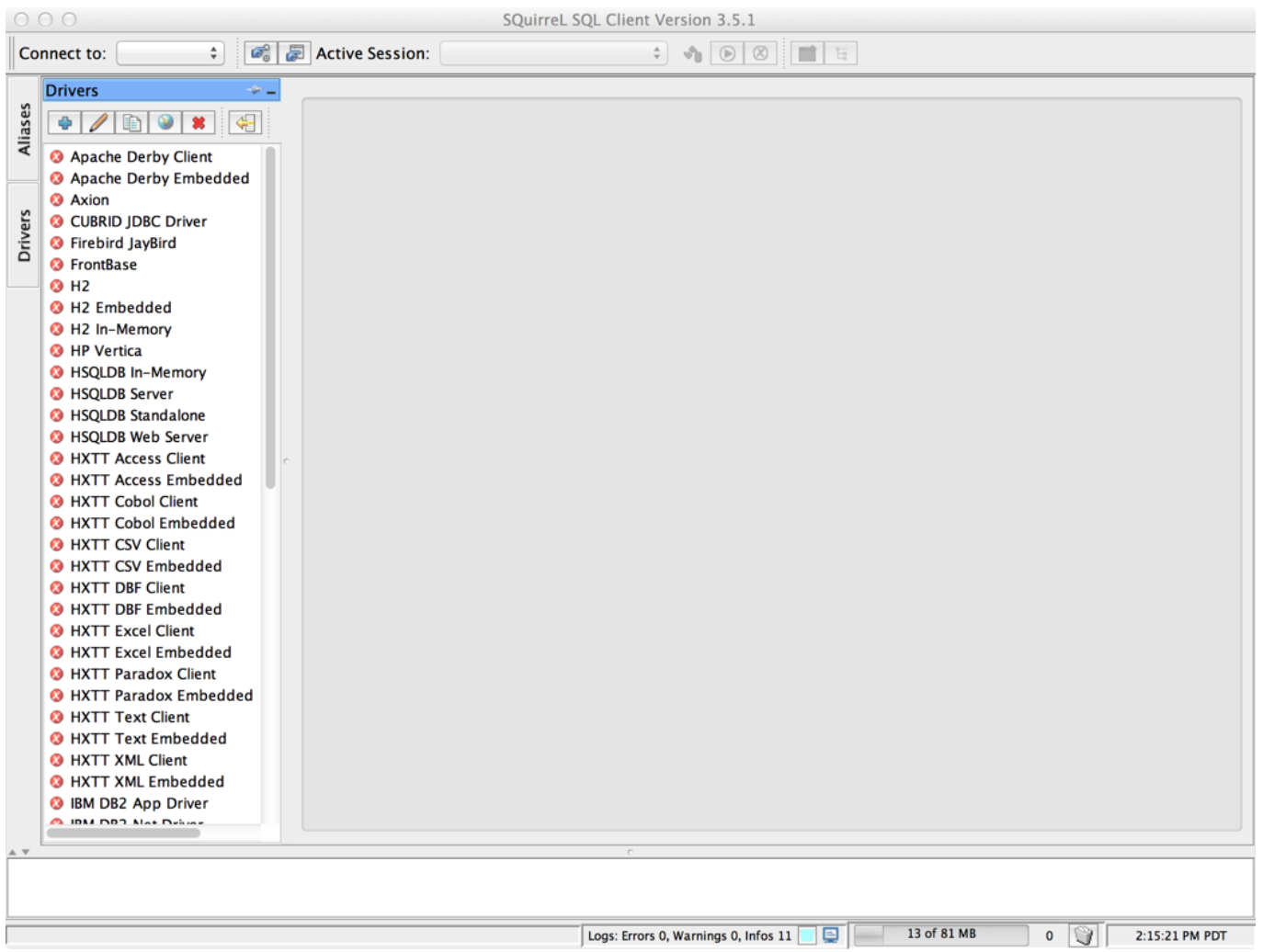

Select **Drivers** in the left pane, and select + (the plus sign) to add a new driver.

![](/assets/image-20190926-193933.43b37841230774f8f96bfd84c73d14f9552178187a8edafe94ffc0b2fc27b4b0.60bcc915.png)

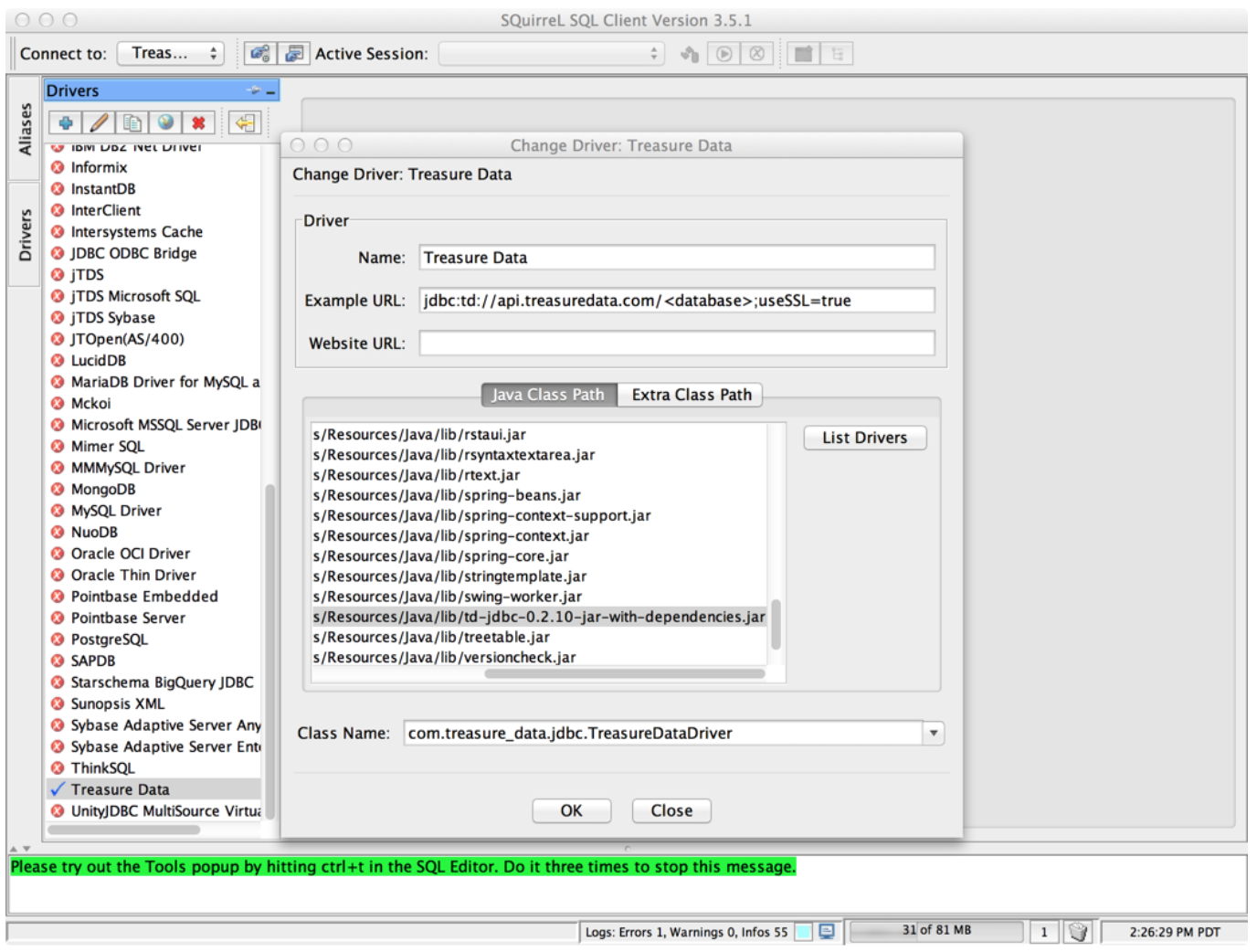

Complete the information as shown in the following example.

![](/assets/image-20190926-194037.7cbd2746ef8fad06618e5812c9b4b688b08fb4f161e4164362b5a865d3f10ee3.60bcc915.png)

* Name: Treasure Data
* Example URL:
  * Hive: jdbc:td://api.treasuredata.com/< database >;useSSL=true;type=hive
  * Presto: jdbc:td://api.treasuredata.com/< database >;useSSL=true;type=presto
* Java Class Path: td-jdbc-xxx.jar
* Class Name: com.treasuredata.jdbc.TreasureDataDriver


# Connect to Treasure Data

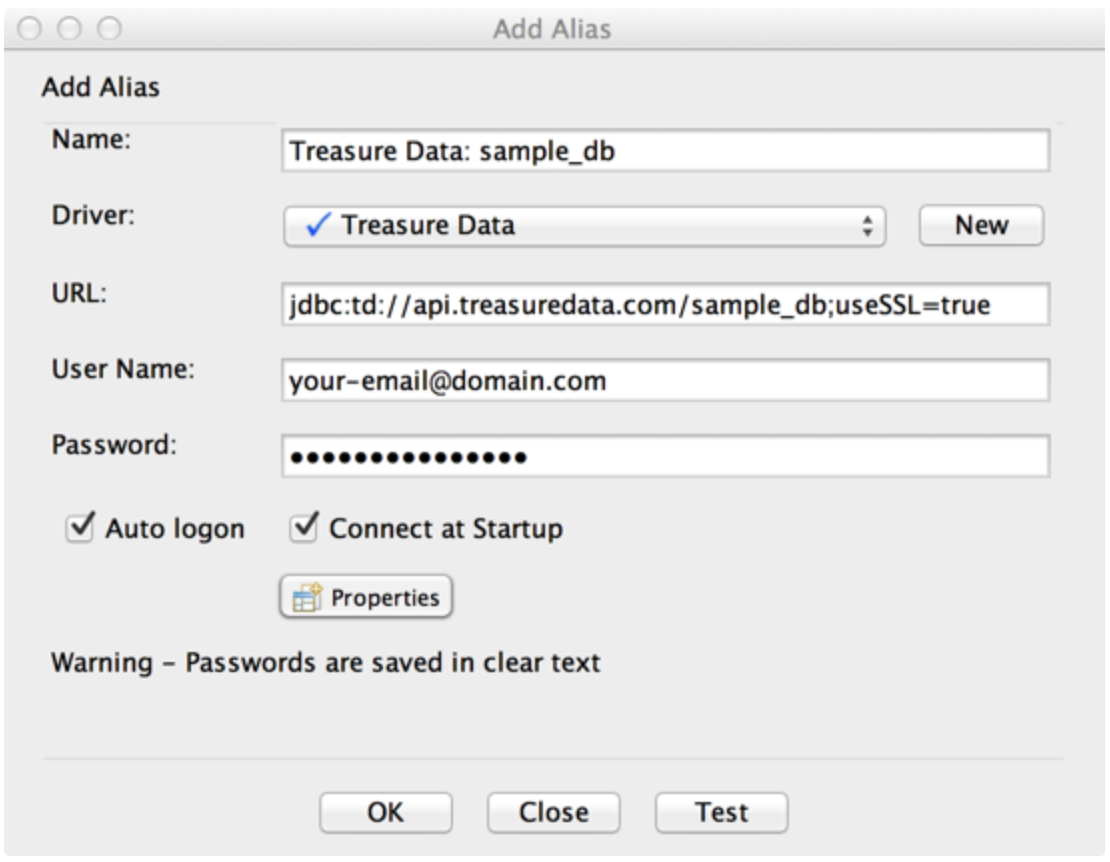

Select the Aliases tab on the left pane and select + (the plus sign) to add the Alias.

![](/assets/image-20190926-194148.77623ce0cede48db62b548e37ac161a3514de0100dc2dac0e539345fb50c1c7f.60bcc915.png)

* Name: Whatever you like
* Driver: Treasure Data
* URL: jdbc:td://api.treasuredata.com/< YOUR_DATABASE_NAME >;useSSL=true
* User Name: Your account email
* Password: Your account password

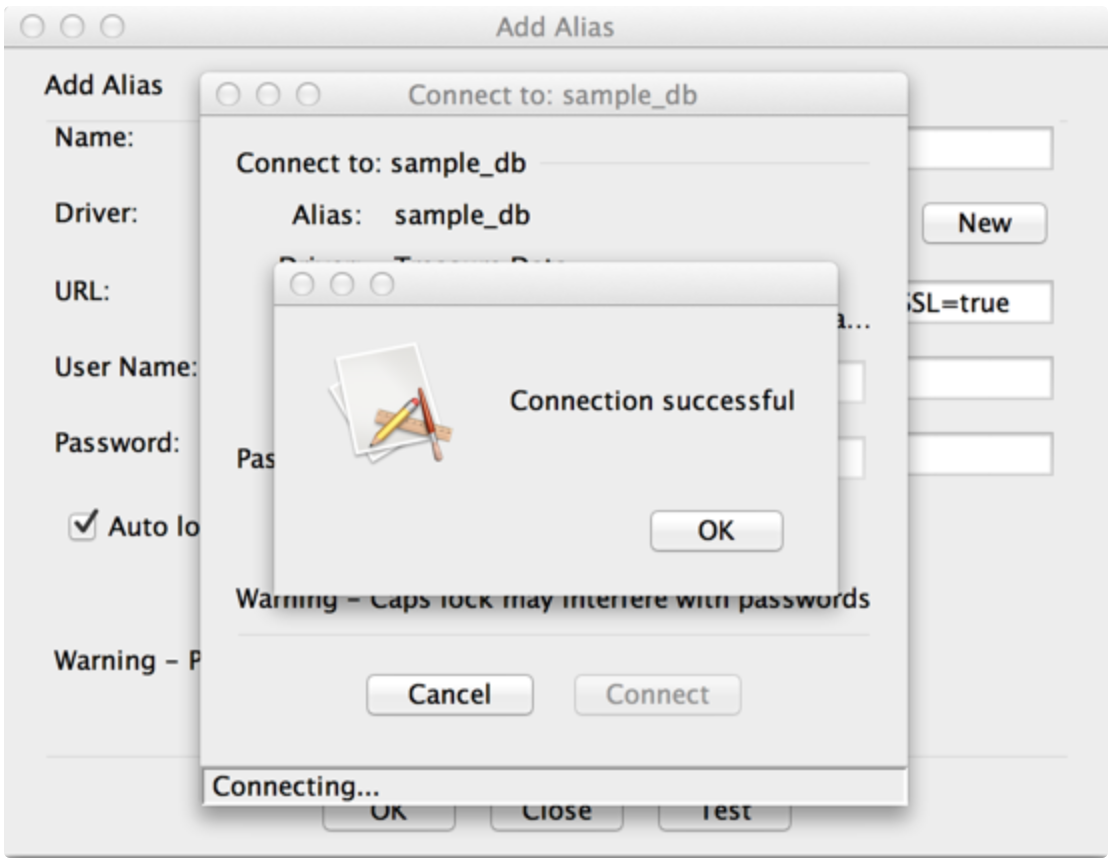

Select **Test** when the forms are filled. If the information is correct, you receive the message
Connection is successful.

![](/assets/image-20190926-194247.4462526e81f2e910ad23e4025c88d3cd25dc3366570bcd35eea64c11f8a74121.60bcc915.png)

Select **OK**.

# Issue the Query

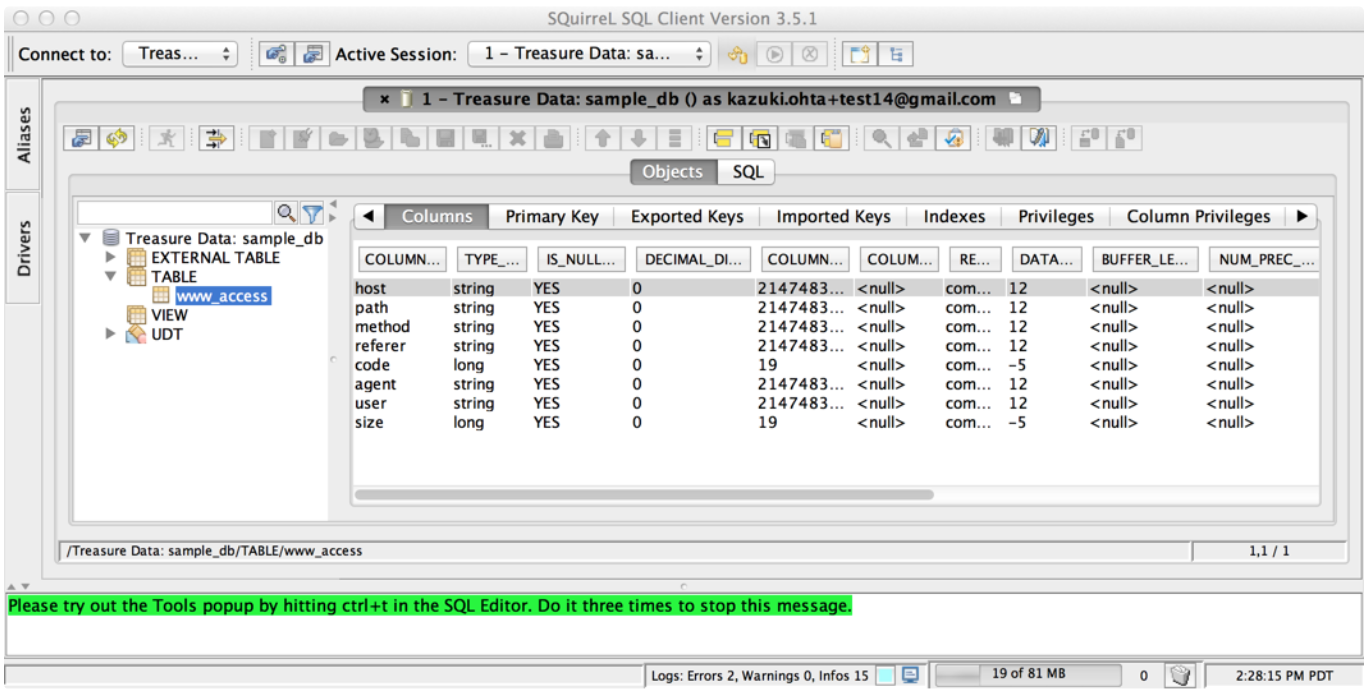

You’ll see a list of tables and their columns by GUI.

![](/assets/image-20190926-194326.719fb1e669819b72229df000280dffbd178785df9d36452b43e44971fc50ba0a.60bcc915.png)

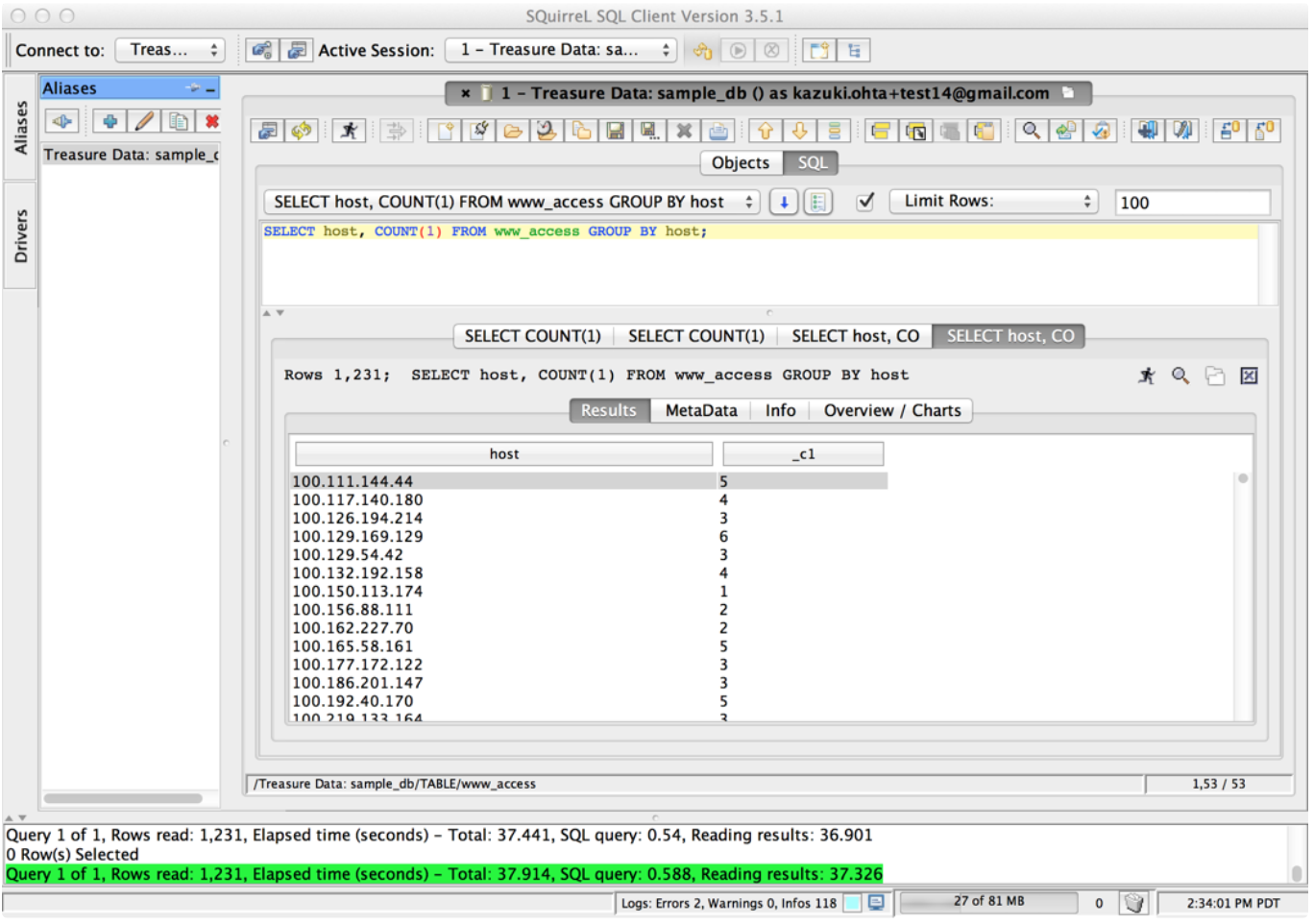

Move to the SQL pane, and edit the SQL query to be thrown. Select `Ctrl + Enter` when the query is ready. The query runs and then shows the results. You can check the progress of the query from the TD Console.

![](/assets/image-20190926-194409.9ed1d272fbd11ee0553c1b1861fb8959468fff29b75ef48e5cd75de71ce2ebc1.60bcc915.png)
