Engage Content Creation

Engage Studio's Email Editor, powered by Beefree SDK, offers a robust and user-friendly interface for creating stunning, responsive email campaigns. This guide walks you through how to design emails using the intuitive drag-and-drop editor and how to personalize them using Liquid templates.

Getting Started

  • Navigate to Email Messages > Create New

  • Choose to start with a blank template or select a pre-designed template

Understanding the Interface

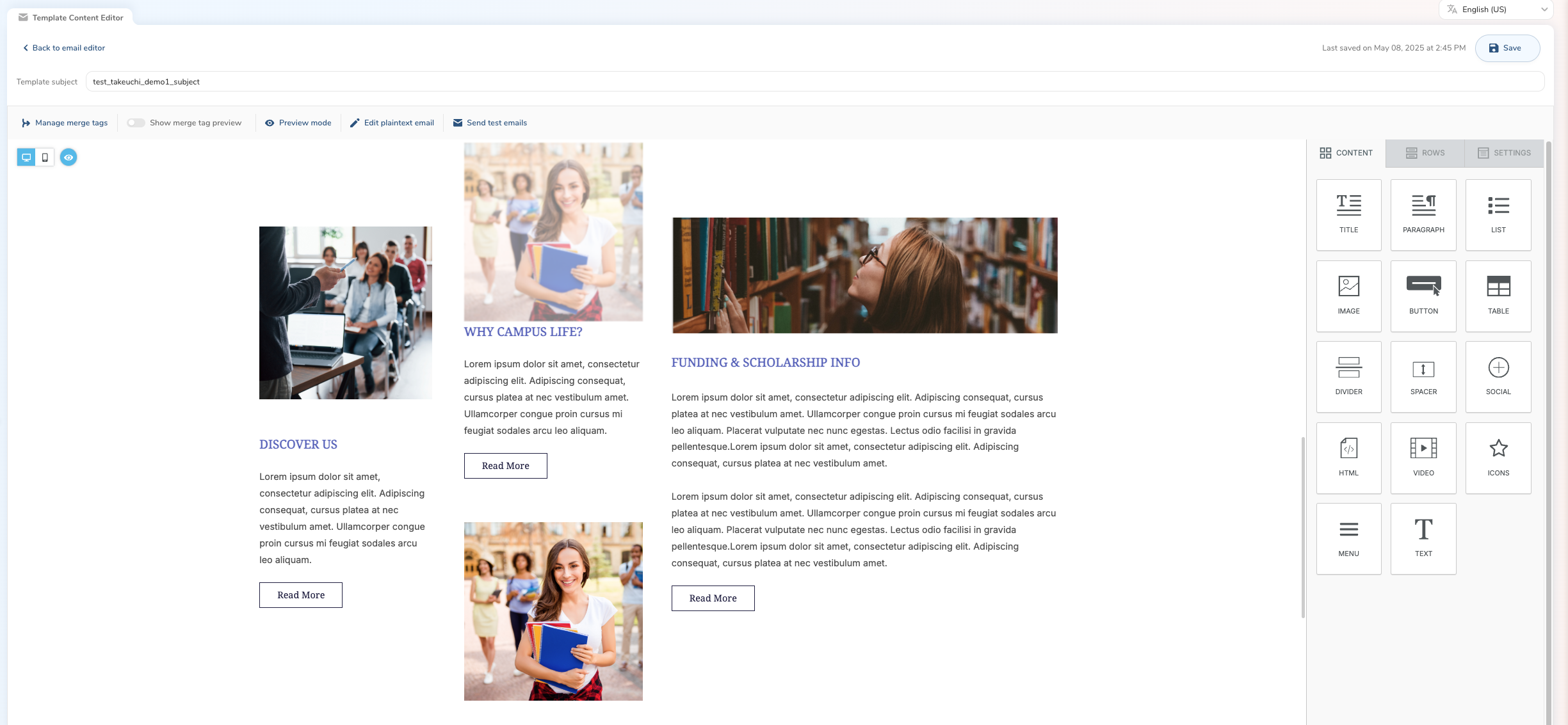

The Email Content Editor consists of three key sections:

  • Stage : The canvas where you drag and arrange content blocks and rows.

  • Sidebar : Where you configure layout, content, and style.

  • Toolbar : Includes device preview (desktop/mobile), undo/redo, and preview/send test.

Building Your Email

Step 1: Add Structure

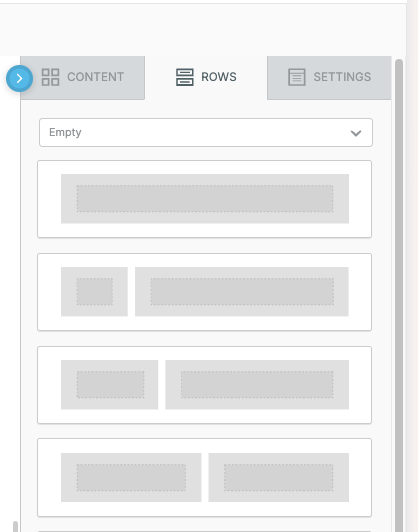

  • Drag "Row" elements from the Sidebar to the Stage to define layout.

  • Choose from multiple column configurations.

Tips:

  • Rows define horizontal structure (sections).

  • Support up to six columns (emails)

  • Customizable options: background color, borders, mobile behavior.

  • Columns can be resized, added, or styled individually.

Step 2: Add Content

  • Drag content blocks like Text, Image, Button, etc., into row sections.

  • Click on elements to open their settings in the Sidebar.

Features:

  • Auto-fit to column width.

  • Supports Text, Media (Image/Video/GIF), Interactive (Button, Social), and Layout (Divider/Spacer/Menu).

  • Individual customization: padding, visibility, conditions.

Step 3: Customize Design

  • Use the Sidebar to set colors, fonts, spacing, and alignment.

Key Features

Personalization with Merge Tags

  • Click "Merge Tags" in the Content Sidebar.

  • Insert tags like {{ profile.name }} into text blocks.

  • Sample data and preview help visualize output.

Mobile Responsiveness

  • Switch between desktop and mobile preview.

  • Layouts adapt automatically.

Image Editor

  • Double-click images to crop, resize, or apply filters.

Dynamic Content & Conditional Display

  • Add display conditions to rows or blocks based on profile attributes.

  • Example: Show discount banner only to VIPs.

Custom Attributes (Merge Tags Enhancements)

  • Human-readable labels (e.g., "Customer Name" not {{ profile.name }})

  • One-click insertion and preview with sample content

Advanced Features

Dynamic Content Using Liquid

Engage Studio supports Liquid syntax in email templates for advanced personalization.

Basic Syntax:

  • Variables:__{{ profile.name }}

  • Logic: {% if profile.vip %}Thank you{% endif %}

  • Loops: {% for product in profile.products %}{{ product.name }}{% endfor %}

  • Filters: {{ profile.name | upcase }}

Use Cases:

  • Conditional Content : Display content only if profile conditions match.

  • Dynamic Image URLs : Loop through JSON list of items and show personalized products.

Example: Displaying a discount to VIPs

Testing and Preview

  • Click "Preview" to open a real-time rendering.

  • Use "Send Test" to deliver a sample email.

  • Dark Mode Preview included.

The Beefree-powered editor ensures:

Current Limitations

The following features are not yet available or under development:

  • Link validation

  • Spell check

  • Import HTML file (contact support to try)

  • Export HTML file

  • Email QA automation

  • Global Style Settings

  • Image Hosting : Images uploaded in the Image Manager are hosted in Beefree’s AWS S3 and CloudFront. These will not migrate to TD storage. Use external image URLs if permanence is needed.
