Recency, frequency, monetary value (RFM) is a marketing analysis model that segments a company's customer base by purchasing patterns. Specifically, it evaluates a customer's recency (how long ago they made a purchase), frequency (how often they make purchases), and monetary value (how much money they spend). Ranking by quantile is performed for each recency, frequency, and monetary value. Customers are clustered by RFM scores using the k-means algorithm, into categories such as Loyalists, Champions, and Lost Customers.
This notebook runs RFM analysis on a given transaction table specified by input_table option. The expected input table schema depends on the parameter aggregated_input.
When aggregated_input is set to False , the input_table schema is expected as follows:
| user | tstamp | amount |
|---|---|---|
| 3105285968 | 2011-04-05 | 115 |
| 1850985734 | 2011-11-23 | 1037 |
| 274382808 | 2011-04-25 | 17 |
| 358273144 | 2011-04-02 | 60 |
| ... | ... | ... |
For each user,
- Recency is defined by days since the latest tstamp
- Frequency is defined by number of transactions
- Monetary is defined by total amount
The max tstamp value in input_table is used for the reference date to define recency.
When aggregated_input is set to True , the input_table schema is expected as follows:
| user | recency | frequency | monetary_value |
|---|---|---|---|
| 3105285968 | 10 | 3 | 200.12 |
| 1850985734 | 20 | 5 | 500.3 |
| 274382808 | 30 | 1 | 50.4 |
| ... | ... | ... |
If aggregated_input is False, missing value handling is done. If aggregated_input is True, missing value handling is not done and you would have to do the preprocessing on your own beforehand.
Ranking by quantile is performed for each recency , frequency , and monetary_value. Quantile ranks in r_quartile/f_quartile/m_quartile ranges from 1 to 4 and the higher the value, the better it is. RFM score is defined by (r_quartile + f_quartile + m_quartile) / 3.
Sample _output_table_:
| 61612 | 3181 | 4 | 4115 | 3 | 1 | 4 | R3F1M4 | 2.6667 | Promising | 0 | R3F2M2 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 9549 | 3227 | 8 | 1456 | 2 | 3 | 2 | R2F3M2 | 2.3333 | Need attention | 1 | R1F1M1 |
| 21495 | 3326 | 6 | 2770 | 1 | 2 | 3 | R1F2M3 | 2.0 | High Value Sleeping | 0 | R3F2M2 |
| 39408 | 3290 | 9 | 4893 | 2 | 4 | 4 | R2F4M4 | 3.3333 | Cannot lose them | 0 | R3F2M2 |
| 8120 | 3216 | 5 | 1056 | 2 | 1 | 1 | R2F1M1 | 1.3333 | Hibernating | 1 | R1F1M1 |
| 45110 | 3818 | 2 | 133 | 1 | 1 | 1 | R1F1M1 | 1.0 | Lost customers | 1 | R1F1M1 |
| ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... |
| user | recency | frequency | monetary_value | r_quartile | f_quartile | m_quartile | rfm_quartile | rfm_score | rfm_segment | rfm_cluster_id | rfm_cluster_rank |

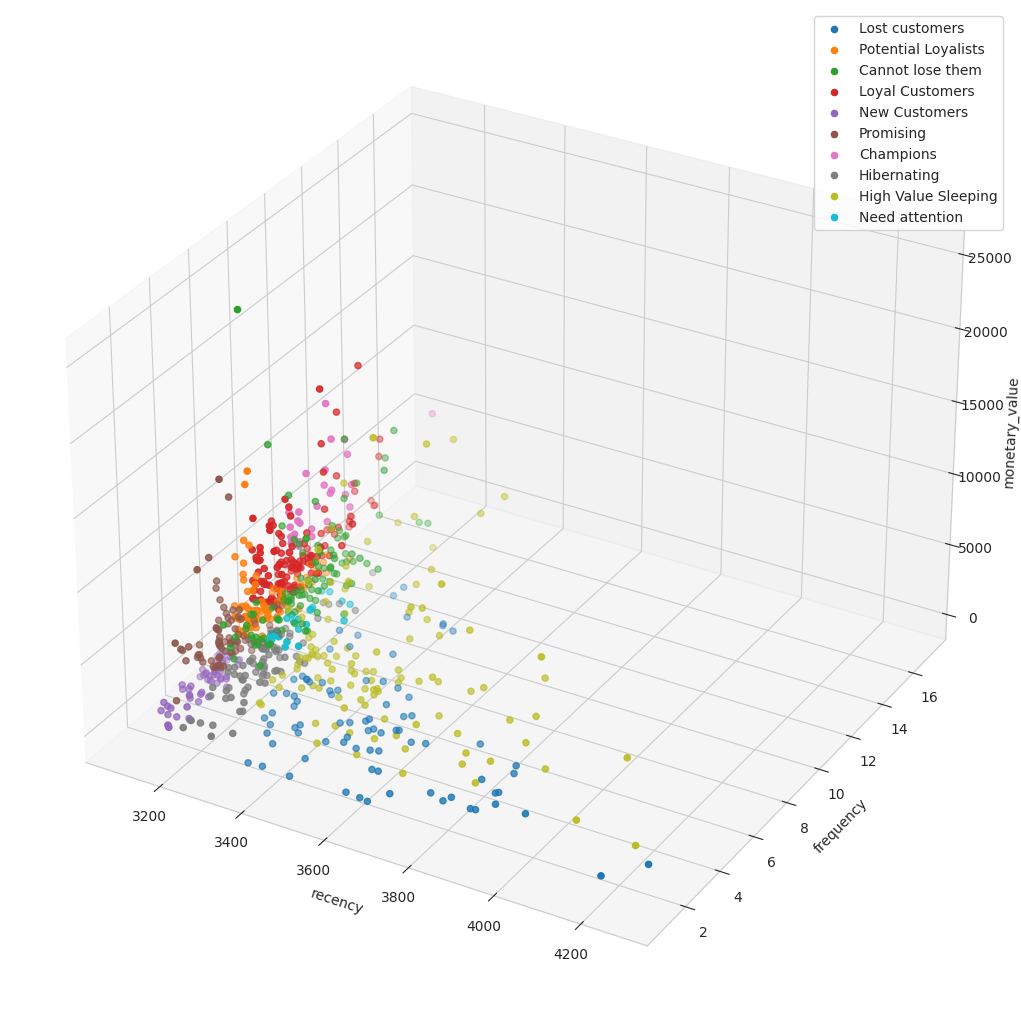

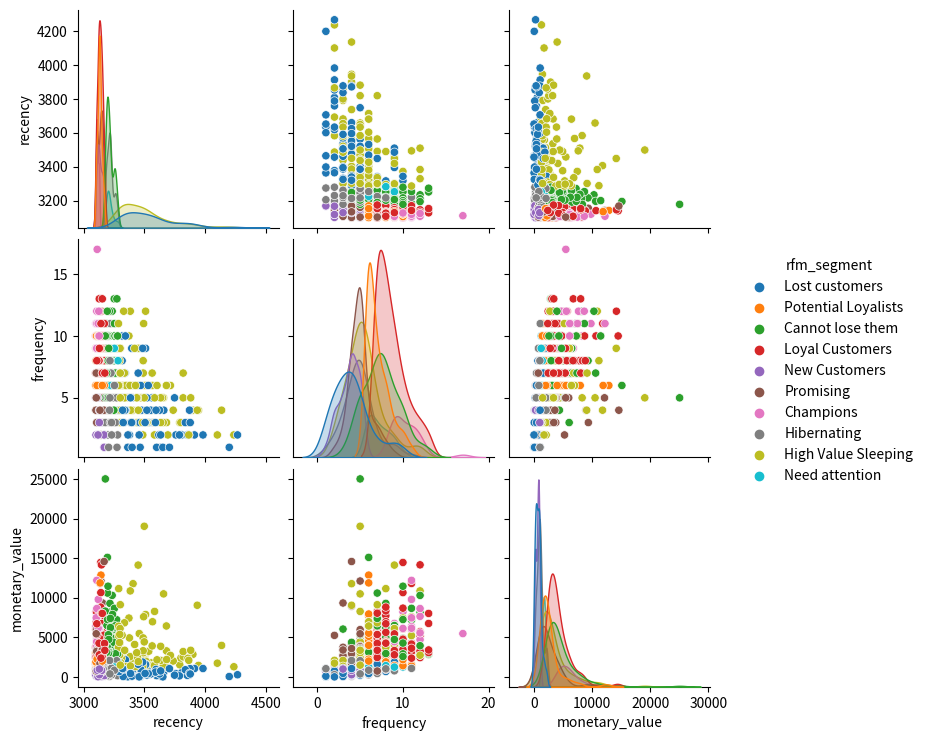

Users are clustered by RFM scores using the k-means algorithm. rfm_cluster_rank explains cluster traits. When cluster size is 3, the cluster R3F3M3 represents that recency , frequency , and monetary_value are high and it is a promising cluster. Whereas, R1F1M1 means that recency, frequency, and monetary_values are low.
An optimal number of clusters is automatically calculated from min_clusters to max_clusters. You can override this calculation by setting the num_clusters option.
When audience_name is specified, recency, frequency, monetary_values,__r_quartile, f_quartile, m_quartile, rfm_score, rfm_segment, rfm_cluster_rank in output_table are attached as attribute columns of the Master Segment and Segments using rfm_segment and rfm_cluster_rank are being defined.

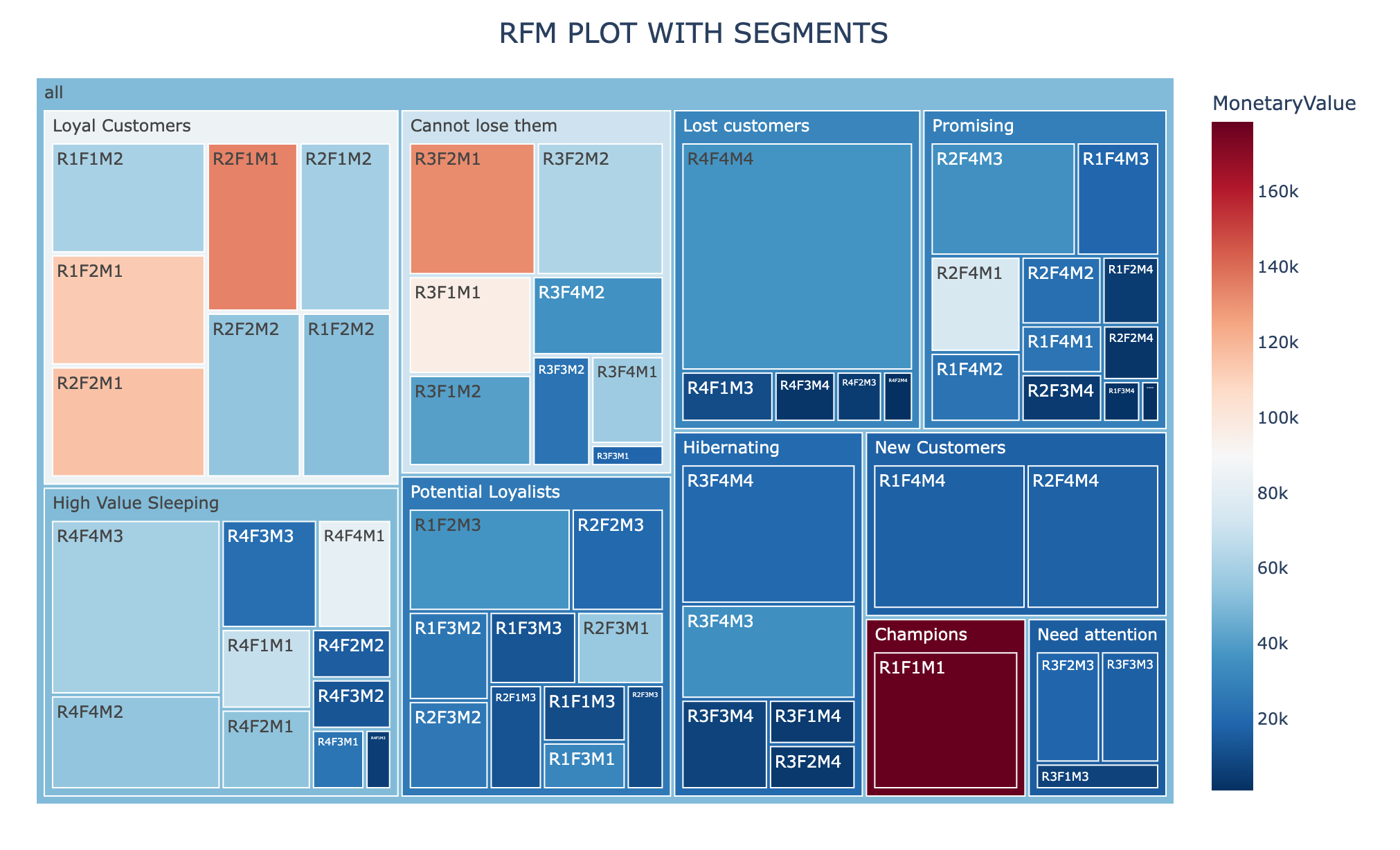

rfm_segment names follow an industy-standard naming used by multiple players. See this treemap and pseudo code for rfm_segment naming rules.
See the following table for the description of 10 RFM segments.
| Segment name | Description | RFM Quartile values |
|---|---|---|
| Champions | Ideal customers. Bought recently, buys often and spends the most. | R4F4M4 |
| Loyal Customers | Spends good money. Responsive to promotions. These are very active and very valuable customers. | R4F4M3, R4F3M4, R4F3M3, R3F4M4, R3F4M3, R3F3M4, R3F3M3 |
| Potential Loyalists | Recent customers, spent good amount, bought more than once. | R4F4M2, R4F3M2, R4F2M4, R4F2M3, R4F2M2, R3F4M2, R3F3M2, R3F2M4, R3F2M3, R3F2M2 |
| Promising | Recent shoppers bought relatively recently for high value, or frequently. So, a promising customer segment. | R4F4M1, R4F3M1, R4F2M1, R4F1M4, R4F1M3, R4F1M2, R3F4M1, R3F3M1, R3F2M1, R3F1M4, R3F1M3, R3F1M2 |
| New Customers | Bought recently, but not often. | R4F1M1, R3F1M1 |
| Cannot lose them | Made big purchases and often, but long time ago. Large revenue comes for this segment and better not lose their attention. | R2F4M4, R2F4M3, R2F3M4, R2F3M3, R2F2M4, R2F2M3, R2F1M4, R2F1M3 |
| Need attention | Potential loyalist is losing attention. So, needs attention. | R2F4M2, R2F3M2, R2F2M2 |
| Hibernating | Low spenders, low frequency, purchased long time ago. Not worth give attention to them. | R2F4M1, R2F3M1, R2F2M1, R2F1M2, R2F1M1 |
| High Value Sleeping | Past potential loyalist sleeping. Worth awaking their losing interests again. | R1F4M4, R1F4M3, R1F4M2, R1F3M4, R1F3M3, R1F3M2, R1F2M4, R1F2M3, R1F2M2, R1F1M4, R1F1M3 |
| Lost customers | Lowest recency, frequency, and monetary scores. This segment has the lowest priority. | R1F4M1, R1F3M1, R1F2M1, R1F1M2, R1F1M1 |
Find a sample workflow in Treasure Boxes.
+rfm:
ipynb>:
notebook: RFM
input_table: ml_datasets.cosmetics_store
user_column: user_id
tstamp_column: event_time
amount_column: price | parameter name | description | required | data type | default value | example value |
|---|---|---|---|---|---|
| input_table | specify a TD table used for RFM analysis like dbname.table_name | yes | string (dbname.table_name) | ||
| ml_dataset.td_rfm | |||||
| user_column | specify a column name for user | no | string | user | user |
| tstamp_column | specify a column name for timestamp | no | string | tstamp | time |
| amount_column | specify a column name for transaction amount such as purchase amount | no | string | amount | purchase_amount |
| output_table | specify a TD table to export RFM result as dbname.table_name | no | string (dbname.table_name) | ||
| ml_output.rfm | |||||
| min_clusters | specify a minimum number of clusters | no | integer | 2 | 5 |
| max_clusters | specify a maximum number of clusters | no | integer | 8 | 25 |
| num_clusters | specify a fixed number of clusters | no | integer | None | 3 |
| hide_table_contents | suppress showing table contents | no | boolean | false | false |
| audience_name | Audience name to merge an attribute table | no | string | None | master_segment_name |
| foreign_key | foreign key column name of a master segment used for Audience integration. user_column value is used if not set. | no | string | None | td_canonical_id |
| disable_clustering | disables clustering | no | boolean | false | false |
| aggregated_input | Allows to input aggregated table | no | boolean | false | false |
