Attribute groupings are defined by the value in the groupingName field of the attributes objects contained in Treasure Data parent segment objects. By default groupingName is set to NULL. However, if groupingName is set to a string value, an attribute grouping is created in the Treasure Data console with that name. Any attributes objects that have that string specified in groupingName will be included in the attribute grouping.
In Figure 1, at the end of this article, there is a complete listing of a parent segment object. The attributes of the object (i.e. the table columns of the segment) start on line 34. Observe that both of the objects described in the attributes object have groupingName set to null (line 47 and 61).
34: "attributes":[
35: {
36: "audienceId":"12345",
37: "id":"56662",
38: "name":"c1-test",
39: "type":"string",
40: "parentDatabaseName":"_mobile_sdk",
41: "parentTableName":"android",
42: "parentColumn":"c1",
43: "parentKey":"c0",
44: "foreignKey":"c_comment",
45: "matrixColumnName":"c1",
46: "usedBySegmentInsight":false,
47: "groupingName": null
48: },
49: {
50: "audienceId":"12345",
51: "id":"56663",
52: "name":"c2-test",
53: "type":"string",
54: "parentDatabaseName":"_mobile_sdk",
55: "parentTableName":"android",
56: "parentColumn":"activity_date",
57: "parentKey":"c0",
58: "foreignKey":"c_comment",
59: "matrixColumnName":"activity_date",
60: "usedBySegmentInsight":false,
61: "groupingName": null

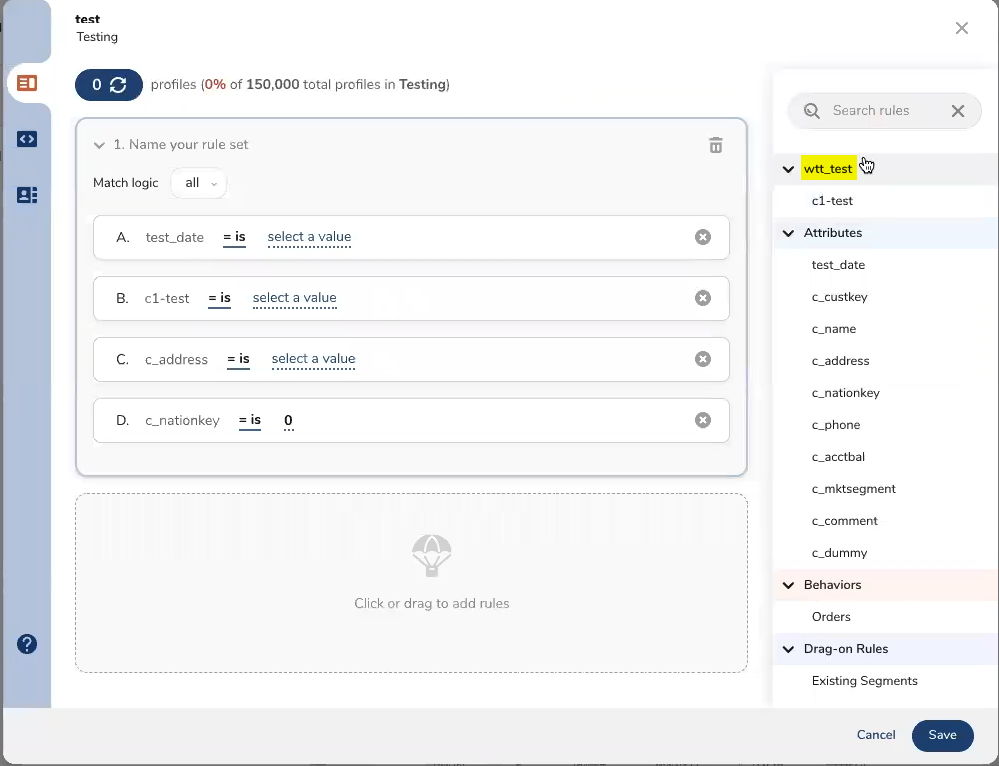

62: } However, if groupingName were changed, for example, to wtt_test (as shown in line 47) then an attribute grouping would be created with the name wtt_test.
35: {
36: "audienceId":"12345",
37: "id":"56662",
38: "name":"c1-test",
39: "type":"string",
40: "parentDatabaseName":"_mobile_sdk",
41: "parentTableName":"android",
42: "parentColumn":"c1",
43: "parentKey":"c0",
44: "foreignKey":"c_comment",
45: "matrixColumnName":"c1",
46: "usedBySegmentInsight":false,
47: "groupingName": 'wtt_test'
48: },
There are three steps in creating an attribute grouping:
- Getting the parent segment ID
- Getting the parent segment object
- Patching the parent segment object with a
groupingName
There are two ways you can get the ID of the parent segment you want to work with. You can use the Treasure Data Console or you can make an Audience API call.

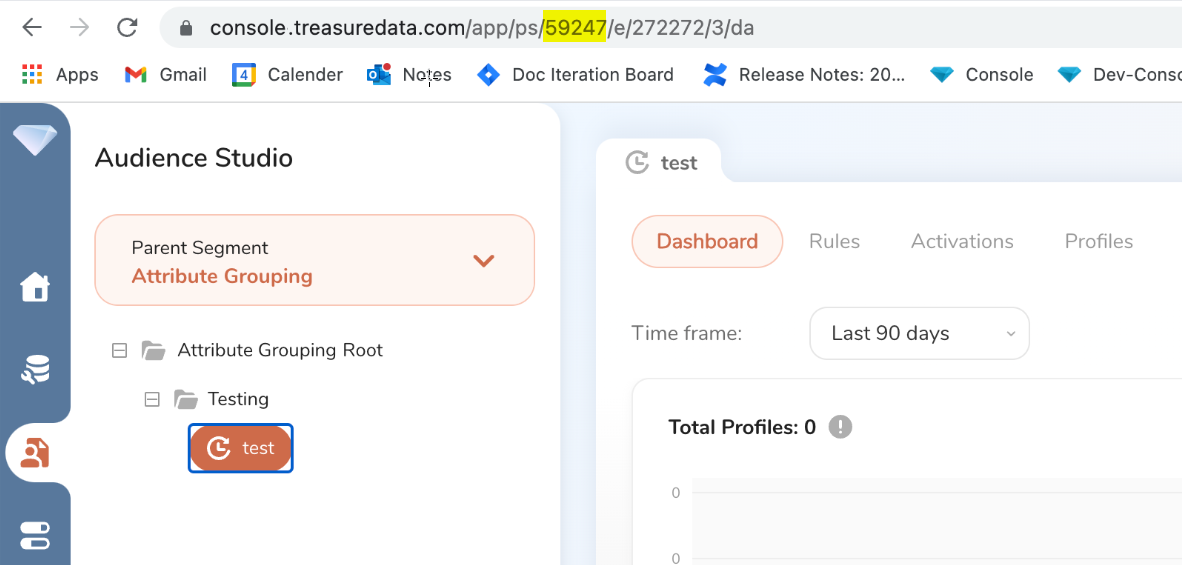

In the Treasure Data Console, navigate to Audience Studio and select the parent segment you want to work with. The segment ID can be found in the URL after the text /app/ps/.
Alternately, if make an Audience API call to display all the parent segments, the id and name of every parent segment is part of the response. For example, you could make a call similar to that shown below. The response comes back in unformatted JSON. In this example, though, the response has been edited and formatted for readability.
$ curl -H 'AUTHORIZATION: TD1 1/1234567891234567891234567891234567891234' 'https://api-cdp.treasuredata.com/audiences/'{
"id":"12345",
"name":"Attribute Grouping",
"description":"Contains grouping names set through Audience API.",
"scheduleType":"none",
"scheduleOption":null,
.
.
.
} If there are a lot of parent segments in the response, one strategy for simplifying the output is to format it and then filter it by id and 'name`. Here is an example of how that can be accomplished.
curl -H 'AUTHORIZATION: TD1 1/1234567891234567891234567891234567891234' 'https://api-cdp.treasuredata.com/audiences/' | python -m json.tool | grep '^\s\s\s\s\s\s\s\s\"id\|^\s\s\s\s\s\s\s\s\"name' % Total % Received % Xferd Average Speed Time Time Time CurrentDload Upload Total Spent Left Speed
100 1188k 0 1188k 0 0 81378 0 --:--:-- 0:00:14 --:--:-- 323k
"id": "12345",
"name": "Attribute Grouping",
"id": "23456",
"name": "PS1",
"id": "34567",
"name": "PS2",
"id": "45678",
"name": "Test Segment",
.
.
. After you have the parent segment ID you can retrieve the parent segment object. In the example below, the parent segment object ID is 12345.
curl -H 'AUTHORIZATION: TD1 1/1234567891234567891234567891234567891234' https://api-cdp.treasuredata.com/audiences/12345 The response comes back as unformatted JSON. It can be useful to use a JSON formatting tool to make the response more readable. For example, here is an example that uses the Python json.tool to format the response.
$ curl -H 'AUTHORIZATION: TD1 1/1234567891234567891234567891234567891234' 'https://api-cdp.treasuredata.com/audiences/12345' | python -m json.tool Patching the parent segment object with a groupingName
After you have the parent segment object, you can edit the response and change the null setting for groupingName on one or more attributes that you want to be included in the grouping. The string value you provide for groupingName will be the name of the attribute grouping.
After you have finished editing the parent segment object, use this edited object as the request payload for a PATCH request.
Large, unformatted JSON objects that contain multiple embedded objects can be difficult to work with. Consequently, the parent segment object that is used as the request payload has been formatted and put into a file named attrGroupingRequest.json (see Figure 1 below). After the file has been edited as necessary, the file can be included in a PATCH request that looks something like this:
$ curl --location --request PATCH -H 'AUTHORIZATION: TD1 1/1234567891234567891234567891234567891234' -H 'Content-Type: application/json' -d @attrGroupingRequest.json https://api-cdp.treasuredata.com/audiences/12345 Modifying an attribute grouping consists of editing the parent segment object and modifying the groupingName values as needed. You can change it to null to remove a column from all attribute groupings, or you can change the name to a different attribute grouping, effectively moving the column to the new attribute grouping. After modifying the parent segment object, send a PATCH request with the modified object.
To delete an attribute grouping, edit the parent segment object and remove the name of the attribute grouping you want to delete. Remove the name from from every instance of groupingName. In most cases, you will simply change the value to 'null`. After modifying the parent segment object, send a PATCH request with the new object.
Figure 1: File listing for attrGroupingRequest.json which contains a parent segment object
{
"id": "12345",
"name": "Attribute Grouping",
"description": "Contains grouping names set through Audience API.",
"scheduleType": "none",
"scheduleOption": null,
"timezone": "UTC",
"createdAt": "2022-02-10T19:17:45.107Z",
"updatedAt": "2022-02-10T19:17:45.107Z",
"createdBy": {
"id": "111",
"td_user_id": "4567",
"name": "firstName lastName"
},
"updatedBy": {
"id": "3210",
"td_user_id": "45678",
"name": "Me"
},
"matrixUpdatedAt": "2022-02-10T19:25:09.676Z",
"workflowHiveOnly": false,
"hiveEngineVersion": "cdpaudience",
"hivePoolName": null,
"prestoPoolName": null,
"population": 150000,
"enrichmentWordTaggingEnabled": true,
"enrichmentIpEnabled": true,
"enrichmentTdJsSdkEnabled": true,
"rootFolderId": "987654",
"master": {
"parentDatabaseName": "test_db_1",
"parentTableName": "sample"
},
"attributes": [
{
"audienceId": "12345",
"id": "56662",
"name": "c1-test",
"type": "string",
"parentDatabaseName": "_mobile_sdk",
"parentTableName": "android",
"parentColumn": "c1",
"parentKey": "c0",
"foreignKey": "c_comment",
"matrixColumnName": "c1",
"usedBySegmentInsight": false,
"groupingName": null
},
{
"audienceId": "12345",
"id": "56663",
"name": "c2-test",
"type": "string",
"parentDatabaseName": "_mobile_sdk",
"parentTableName": "android",
"parentColumn": "activity_date",
"parentKey": "c0",
"foreignKey": "c_comment",
"matrixColumnName": "activity_date",
"usedBySegmentInsight": false,
"groupingName": null
}
],
"behaviors": [
{
"audienceId": "12345",
"id": "23456",
"name": "Orders",
"parentDatabaseName": "test_db_1",
"parentTableName": "orders",
"parentKey": "o_custkey",
"foreignKey": "c_custkey",
"matrixDatabaseName": "audience_76543",
"matrixTableName": "behavior_orders",
"allColumns": false,
"scheduleType": "none",
"scheduleOption": null,
"defaultTimeFilterEnabled": true,
"filterRule": {},
"schema": [
{
"name": "o_clerk",
"type": "string",
"parentColumn": "o_clerk",
"matrixColumnName": "o_clerk"
}
]
}
]
}
