SAP Marketing Cloud (previously Hybris Marketing) is a marketing solution that provides real-time, context-based data about individual customers and anonymous visitors by unifying user data into a centralized hub. This allows brands to deliver consistent, contextual, and relevant experiences throughout a customer journey, regardless of the marketing channel or device. Some of the features of this solution are

• Data Management — provides a 360 degree view of people interacting with your brand, enabling you to target them in the right context in real-time.
• Recommendations — deliver timely and highly relevant recommendations to your customers, helping you translate customer interest into conversion.
• Segmentation — offers high-performing audience segmentation in real-time enabling you to personalized campaigns across multiple channels.

What can you do with this Integration?

As SAP Marketing Cloud strictly follows the Open Data Protocol (OData) principles with multiple services in their ecosystems, you can build a flexible solution which can

• Export, update, and delete data to SAP Marketing Cloud products using the OData Protocol.
• Support custom use cases offered by SAP Marketing Cloud SAP Marketing Cloud - Integration APIs. For example, you could
  • Assign an Interaction Contact to a specific target group: e.g.  SAP Marketing Cloud - Structure of OData Service API_MKT_TARGET_GROUP_SRV.
  • Update or create contact relationship data: e.g.  SAP Marketing Cloud - Structure of OData Service API_MKT_CONTACTS.
  • Incorporate any related interaction listed in SAP Marketing Cloud - API Hub.

Prerequisites

• Basic Knowledge of Treasure Data™.
• Basic Knowledge of SAP Marketing Cloud.
• Basic Knowledge of Open Data Protocol.

Requirements and Limitations

• SAP communication user account

Static IP Address of Treasure Data Integration

If your security policy requires IP whitelisting, you must add Treasure Data's IP addresses to your allowlist to ensure a successful connection.

Please find the complete list of static IP addresses, organized by region, at the following link:
https://api-docs.treasuredata.com/en/overview/ip-addresses-integrations-result-workers/

Use the TD Console to Create a Connection

In Treasure Data, you must create and configure the data connection prior to running your query. As part of the data connection, you provide authentication to access the integration.

Create a New Authentication

1. Open TD Console.

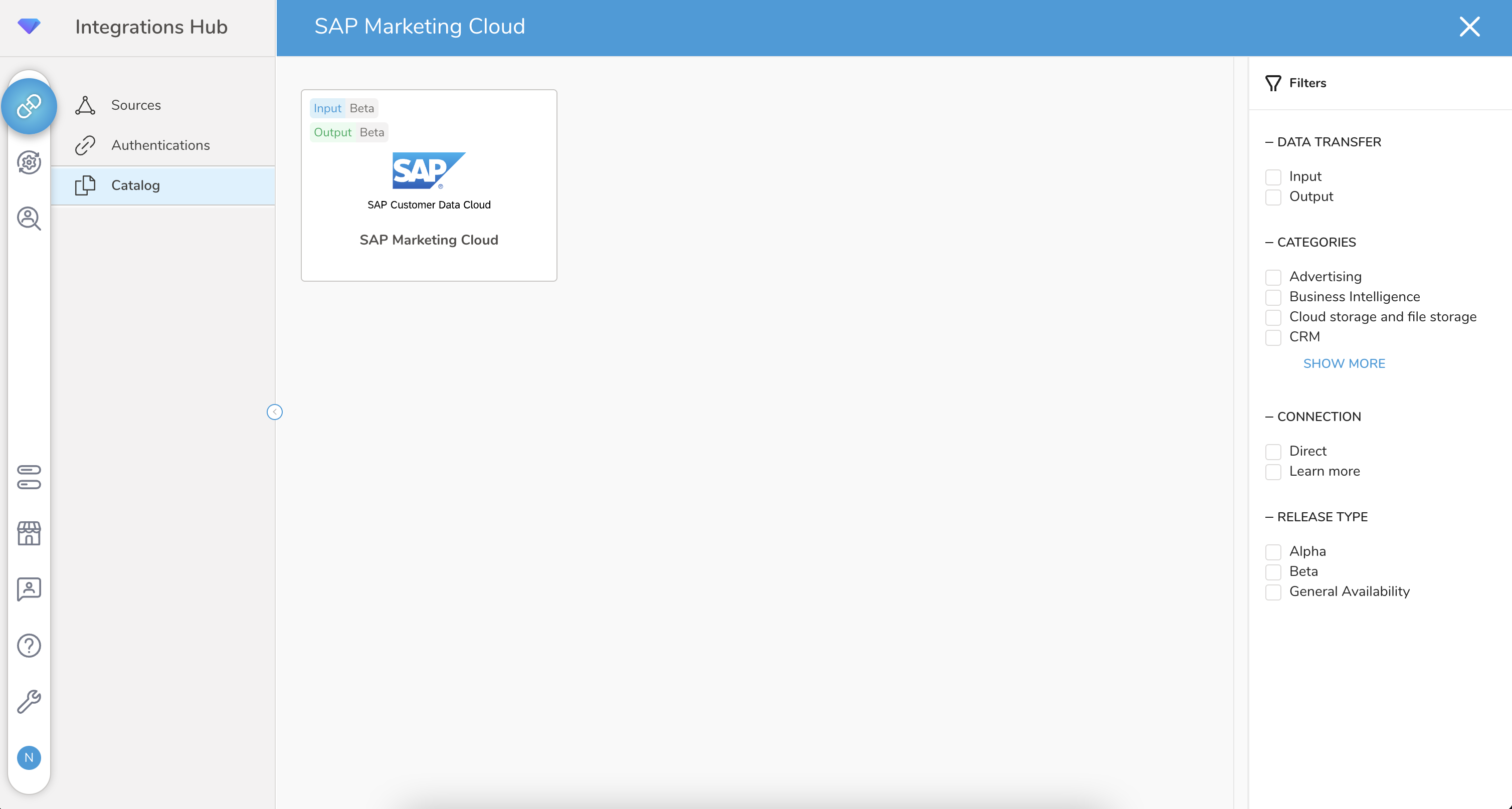

2. Navigate to Integrations Hub > Catalog.

3. Search for SAP Marketing Cloudand select it.

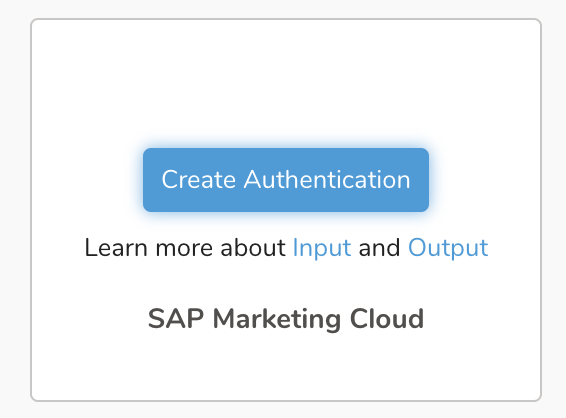

4. Select Create Authentication.

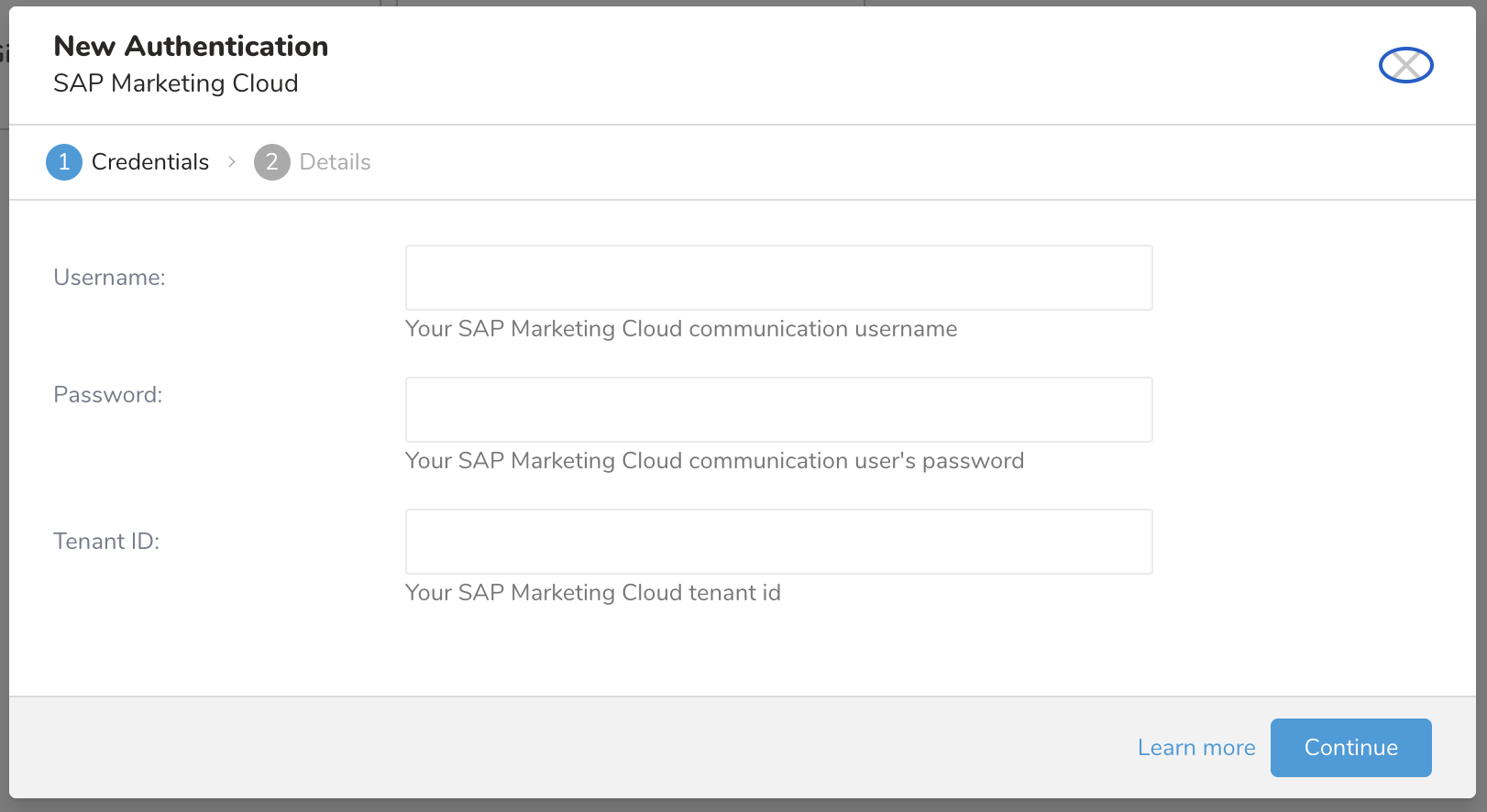

5. Enter the credentials to authenticate:

6. Select Continue.

7. Enter a name for your connection.

8. Select Done.

Define your Query

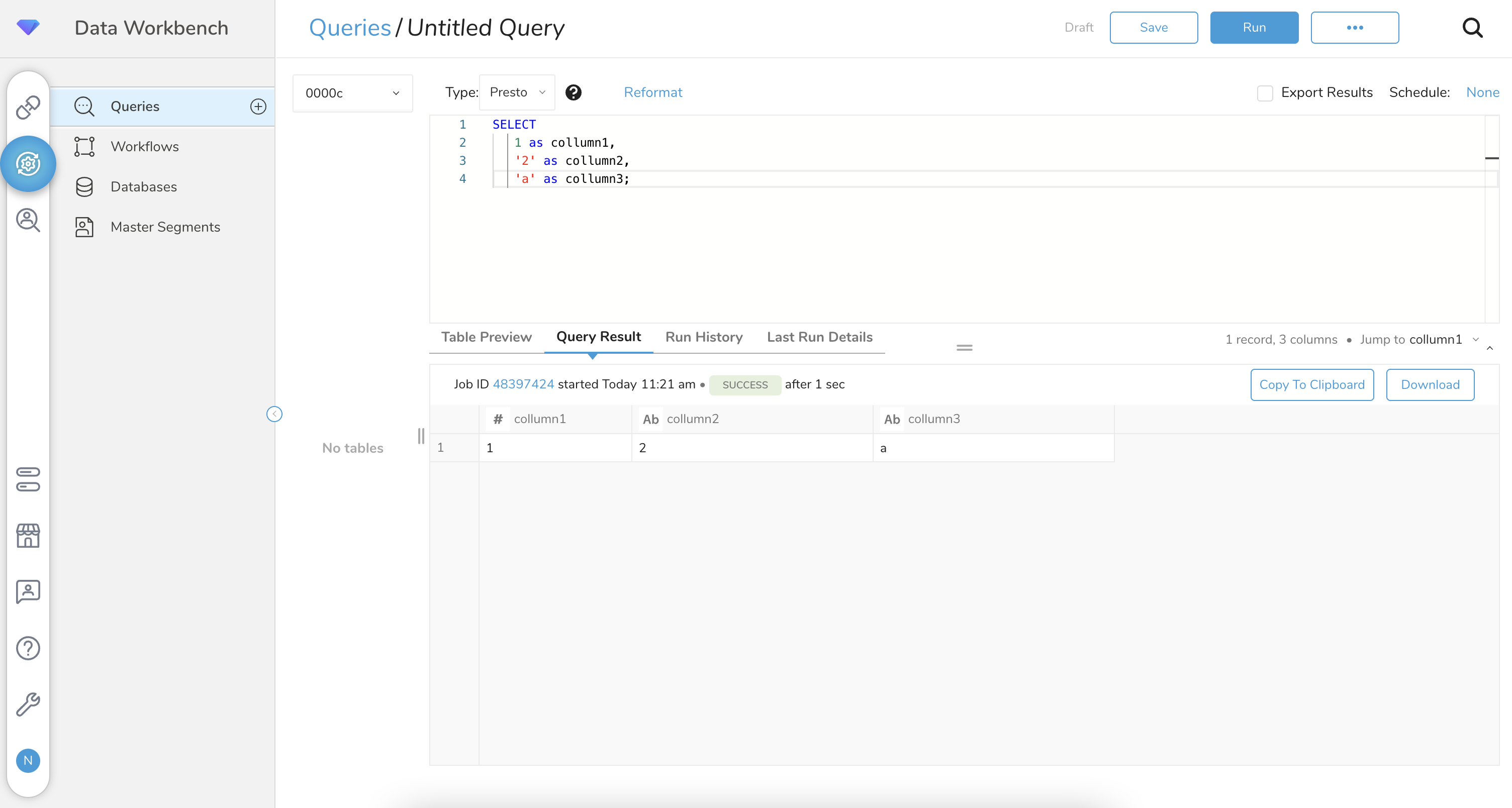

1. Navigate to Data Workbench > Queries.

2. Select New Query.

3. Enter your query.

4. Select Run to perform the query and to validate the result set.

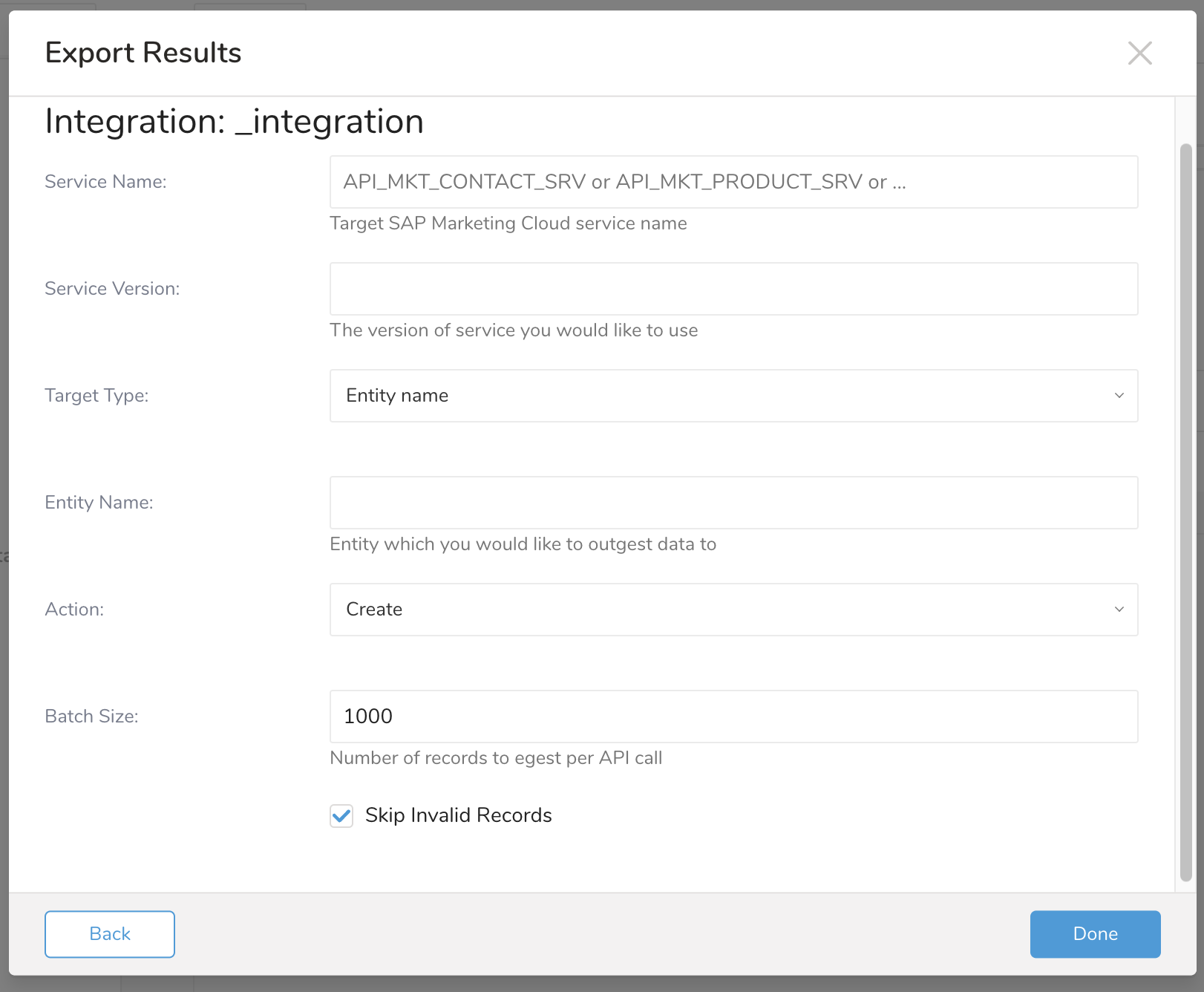

Specify the Result Export Target

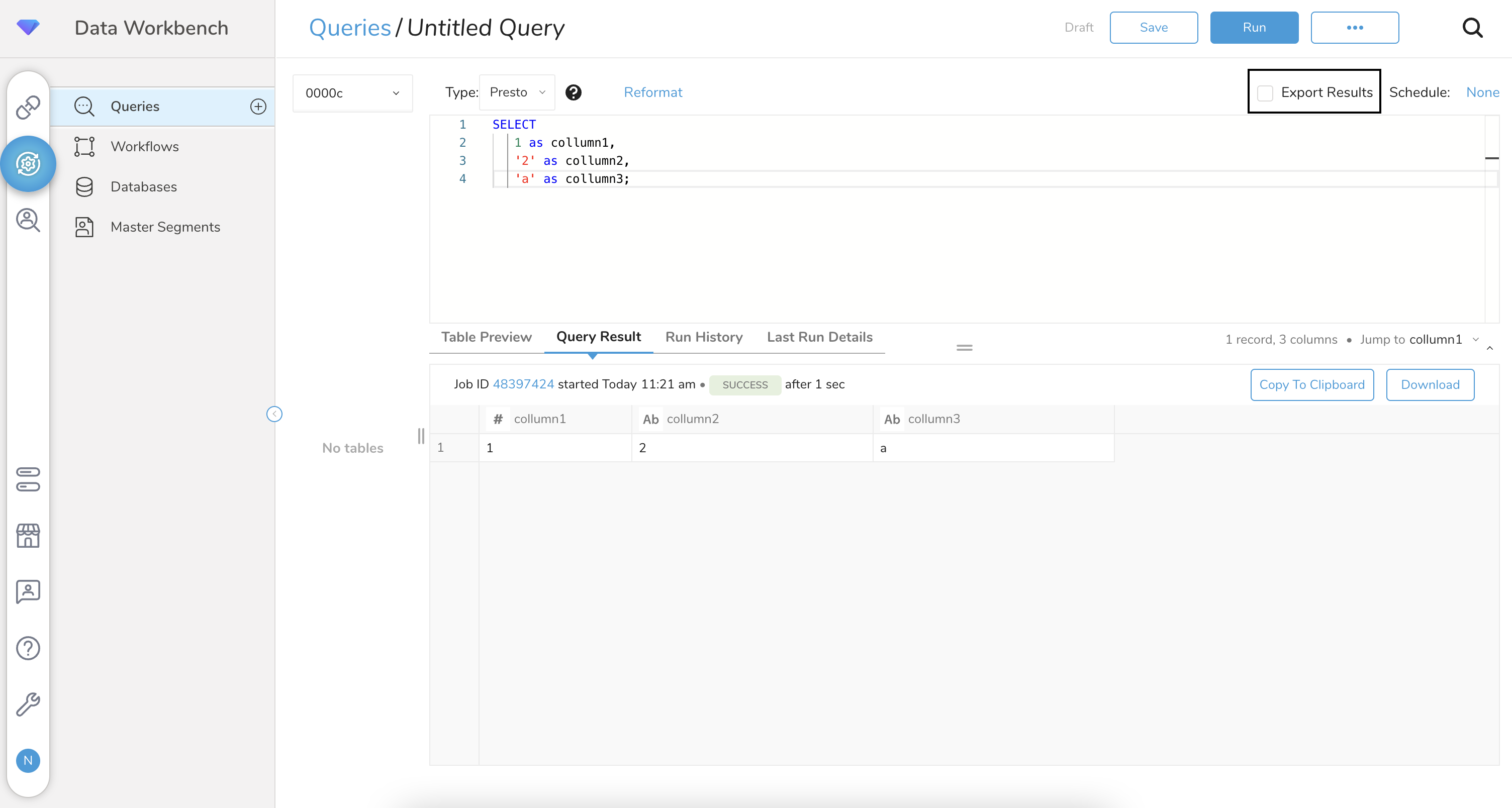

1. Select Export Results.

2. You can select an existing authentication or create a new authentication for the external service to be used for output. Choose one of the following:

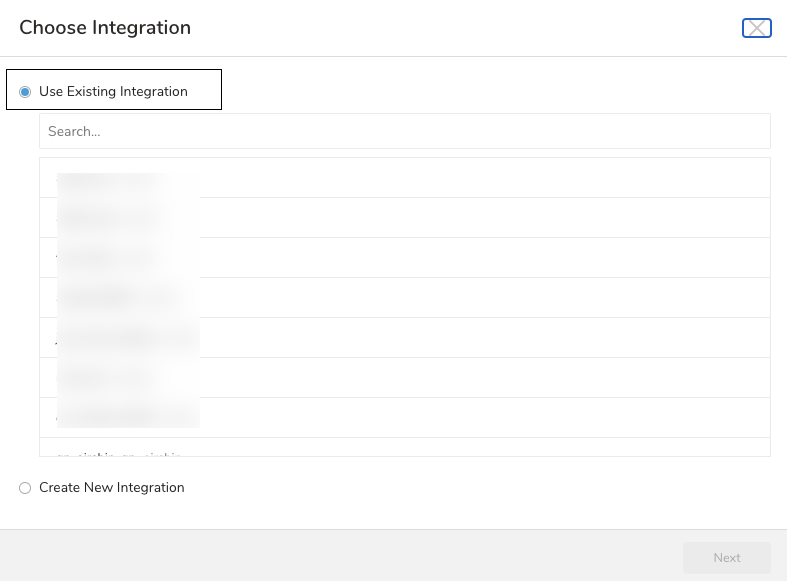

Use Existing Integration

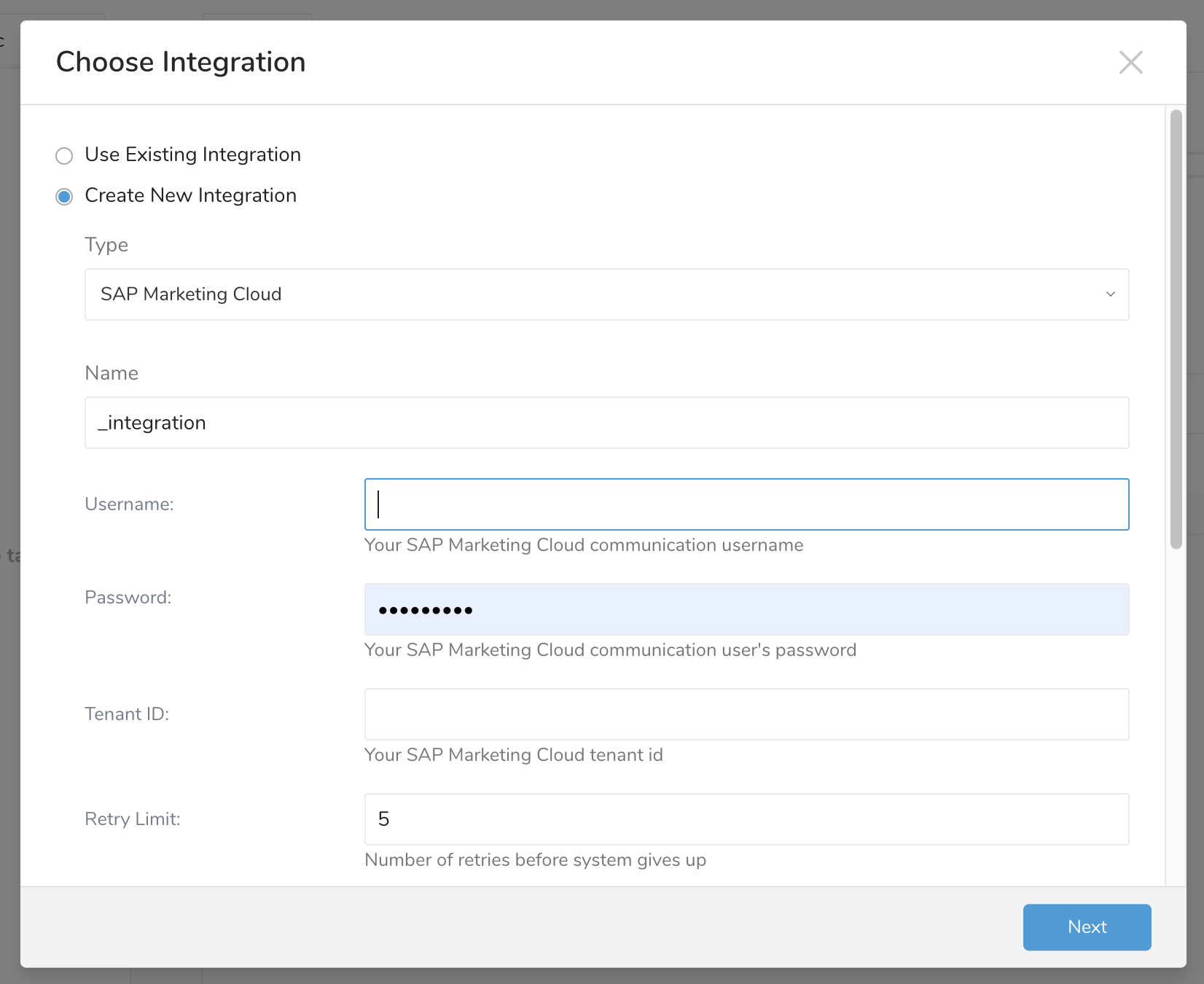

Create a New Integration

(Optional) Schedule Query Export Jobs

You can use Scheduled Jobs with Result Export to periodically write the output result to a target destination that you specify.

Treasure Data's scheduler feature supports periodic query execution to achieve high availability.

When two specifications provide conflicting schedule specifications, the specification requesting to execute more often is followed while the other schedule specification is ignored.

For example, if the cron schedule is '0 0 1 * 1', then the 'day of month' specification and 'day of week' are discordant because the former specification requires it to run every first day of each month at midnight (00:00), while the latter specification requires it to run every Monday at midnight (00:00). The latter specification is followed.

Scheduling your Job Using TD Console

1. Navigate to Data Workbench > Queries

2. Create a new query or select an existing query.

3. Next to Schedule, select None.

4. In the drop-down, select one of the following schedule options:

   Drop-down Value	Description
   Custom cron...	Review Custom cron... details.
   @daily (midnight)	Run once a day at midnight (00:00 am) in the specified time zone.
   @hourly (:00)	Run every hour at 00 minutes.
   None	No schedule.

Custom cron... Details

 *    *    *    *    *
 -    -    -    -    -
 |    |    |    |    |
 |    |    |    |    +----- day of week (0 - 6) (Sunday=0)
 |    |    |    +---------- month (1 - 12)
 |    |    +--------------- day of month (1 - 31)
 |    +-------------------- hour (0 - 23)
 +------------------------- min (0 - 59)

The following named entries can be used:

• Day of Week: sun, mon, tue, wed, thu, fri, sat.
• Month: jan, feb, mar, apr, may, jun, jul, aug, sep, oct, nov, dec.

A single space is required between each field. The values for each field can be composed of:

1. (Optional) You can delay the start time of a query by enabling the Delay execution.

Execute the Query

Save the query with a name and run, or just run the query. Upon successful completion of the query, the query result is automatically exported to the specified destination.

(Optional) You can delay the start time of a query by enabling the Delay execution.

Activate a Segment in Audience Studio

You can also send segment data to the target platform by creating an activation in the Audience Studio.

1. Navigate to Audience Studio.
2. Select a parent segment.
3. Open the target segment, right-mouse click, and then select Create Activation.
4. In the Details panel, enter an Activation name and configure the activation according to the previous section on Configuration Parameters.
5. Customize the activation output in the Output Mapping panel.

• Attribute Columns
  • Select Export All Columns to export all columns without making any changes.
  • Select + Add Columns to add specific columns for the export. The Output Column Name pre-populates with the same Source column name. You can update the Output Column Name. Continue to select + Add Columnsto add new columns for your activation output.
• String Builder
  • + Add string to create strings for export. Select from the following values:
    • String: Choose any value; use text to create a custom value.
    • Timestamp: The date and time of the export.
    • Segment Id: The segment ID number.
    • Segment Name: The segment name.
    • Audience Id: The parent segment number.

6. Set a Schedule.

• Select the values to define your schedule and optionally include email notifications.

7. Select Create.

(Optional) Configure Export Results in Workflow

Within Treasure Data Workflow, you can specify the use of this integration to export data.

Learn more at Using Workflows to Export Data with the TD Toolbelt.

(Optional) Export Integration Using the CLI

You can also use the TD Toolbelt for Result Export to SAP Marketing Cloud. You need to specify the information for export to SAP Marketing Cloud as screen-shot--resultscreen-shot option of screen-shottd queryscreen-shot command. For more information about screen-shottd queryscreen-shot see Query Commands.

The format of the option is JSON and the general structure is as follows.

{
  "type": "sap_marketing_cloud",
  "username": "user",
  "password": "pass}HrNAJE",
  "tenant_id": "mytenant",
  "service_name": "API_MKT_INTERACTION_SRV",
  "target_type": "entity_name",
  "api_version": null,
  "entity_name": "InteractionTags",
  "action": "create",
  "batchSize": 1000
}

Parameters

screen-shotentity_namescreen-shot Case

The following example uses entity_name as target_type.

td query \
  --result '{
    "type": "sap_marketing_cloud",
    "username": "user",
    "password": "pass",
    "tenant_id": "mytenant",
    "service_name": "API_MKT_INTERACTION_SRV",
    "api_version": null,
    "entity_name": "InteractionTags",
    "action": "create",
    "batchSize": 1000
  }' \
  -d sample_datasets \
  "SELECT * FROM interactiontags" \
  -T presto

screen-shotcustom_pathscreen-shot Case

The following example uses custom_pathas target_type.

td query \
  --result '{
    "type": "sap_marketing_cloud",
    "username": "user",
    "password": "pass",
    "tenant_id": "mytenant",
    "service_name": "API_MKT_TARGET_GROUP_SRV",
    "action": "create",
    "target_type": "custom_path",
    "custom_path_url": "TargetGroups(guid'\''{{TargetGroupUUID}}'\'')/TargetGroupInteractionContacts",
    "batch_size": 1000
  }' \
  -d sample_datasets \
  "SELECT * FROM targetGroupinteractioncontacts" \
  -T presto

Appendix

How To Determine Entity Name

Entity Namecan be retrieved in various ways. Here are two examples

• Using Integration APIs Document
• Using Integration APIs

In this example, API_MKT_CONTACT_SRV is used as the target service.

integrations APIs Document

To retrieve data using Integration APIs Document:

1. Go to SAP Marketing Cloud - Integration APIs to find public APIs available.
2. Go to OData Service Structure for the corresponding service (e.g. Structure of OData Service API_MKT_CONTACTS).

Related information about the structures, entity sets, and supports operations is available here.

Integrations APIs

To retrieve data using Integration APIs:

1. Call the screen-shot$metadatascreen-shot endpoint of target service.

curl --location --request GET \
  'https://{tenant}.s4hana.ondemand.com/sap/opu/odata/sap/API_MKT_CONTACT_SRV/$metadata' \
  --header 'x-csrf-token: Fetch' \
  --header 'Authorization: Basic {encode_base_64(username:password)}'

2. From the response documents, find the screen-shotEntityContainer Name="{TARGET_SERVICE}_Entities"screen-shot . In this example, this will be screen-shotEntityContainer Name="API_MKT_CONTACT_SRV_Entities".screen-shot

   <EntityContainer
     Name="API_MKT_CONTACT_SRV_Entities"
     m:IsDefaultEntityContainer="true"
     sap:supported-formats="atom json xlsx pdf">
     <EntitySet
       Name="MarketingAreas"
       EntityType="API_MKT_CONTACT_SRV.MarketingArea"
       sap:creatable="false"
       sap:deletable="false"
       sap:content-version="4"/>
     <EntitySet
       Name="MarketingLocations"
       EntityType="API_MKT_CONTACT_SRV.MarketingLocation"
       sap:creatable="false"
       sap:deletable="false"
       sap:content-version="4"/>
     <EntitySet
       Name="Contacts"
       EntityType="API_MKT_CONTACT_SRV.Contact"
       sap:creatable="false"
       sap:updatable="false"
       sap:deletable="false"
       sap:content-version="4"/>
     <EntitySet
       Name="ContactOriginData"
       EntityType="API_MKT_CONTACT_SRV.ContactOriginData"
       sap:creatable="false"
       sap:deletable="false"
       sap:content-version="4"/>
   </EntityContainer>

3. Choose the screen-shotEntitySetscreen-shot you would like to ingest.

4. Copy the text inside the screen-shotName=screen-shot quotations marks.
   This name will be used in the GUI: e.g. Contacts, MarketingAreas, MarketingLocations, ContactOriginData, etc.

Target Type

Target types affect how the URL is built for chosen action. There are two options for Target Type:

• Entity name
• Custom path.

Using the entity name option, the prefix of the URL will be built based on screen-shottenant_idscreen-shot, screen-shotservice_namescreen-shot, and screen-shotentity_namescreen-shot with following template:

https://{{tenant_id}}.s4hana.ondemand.com/sap/opu/odata/sap/{{service_name}}/{{entity_name}}

Using the custom path option, the prefix of the URL will be built based on screen-shottenant_idscreen-shot, screen-shotservice_namescreen-shot, and screen-shotcustom_path_urlscreen-shot, and exported data*.* The custom path is built by expanding tags in a screen-shotcustom_path_urlscreen-shot using values provided from the exported data. Then, it is combined with the common prefix.

https://{{tenant_id}}.s4hana.ondemand.com/sap/opu/odata/sap/{{service_name}}/{{custom path}

For example, with the following custom_path configuration:

target_type: custom_path
tenant_id: my_tenant
service_name: API_MKT_CONTACT_SRV
custom_path_url: TargetGroups(guid'{{TargetGroupUUID}}')/TargetGroupInteractionContacts

And using the following exported data:

InteractionContactUUID,TargetGroupUUID
00000000-0000-0000-0000-000000000000,00000000-0000-0000-0000-000000000001

The URL endpoint for the custom path would be:

https://my_tenant.s4hana.ondemand.com/sap/opu/odata/sap/API_MKT_CONTACT_SRV/TargetGroups(guid'00000000-0000-0000-0000-000000000001')/TargetGroupInteractionContacts
