Learn more about Repro Import Integration.
You can use the new Repro Export Integration connector to export files to your Repro’s Amazon S3 buckets with customized parameters for an easy configuration.
- Basic knowledge of Treasure Data, including the TD Toolbelt.
- An S3 bucket with region ID.

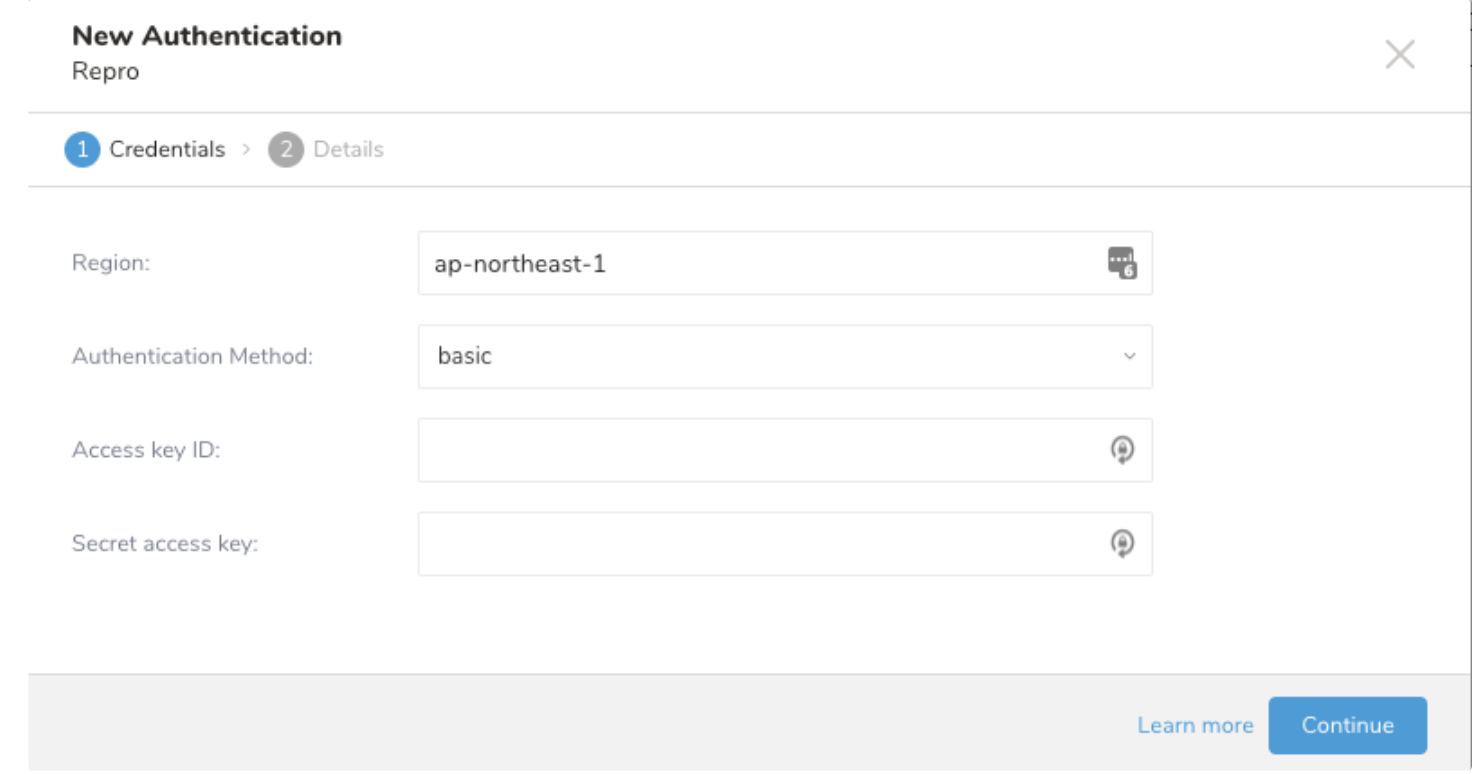

When you create a data connection, you must provide authentication to access the integration. In Treasure Data, you configure the authentication first and then specify the source information.
- Open TD Console.
- Navigate to Integrations Hub > Catalog
- Search for and select Repro.

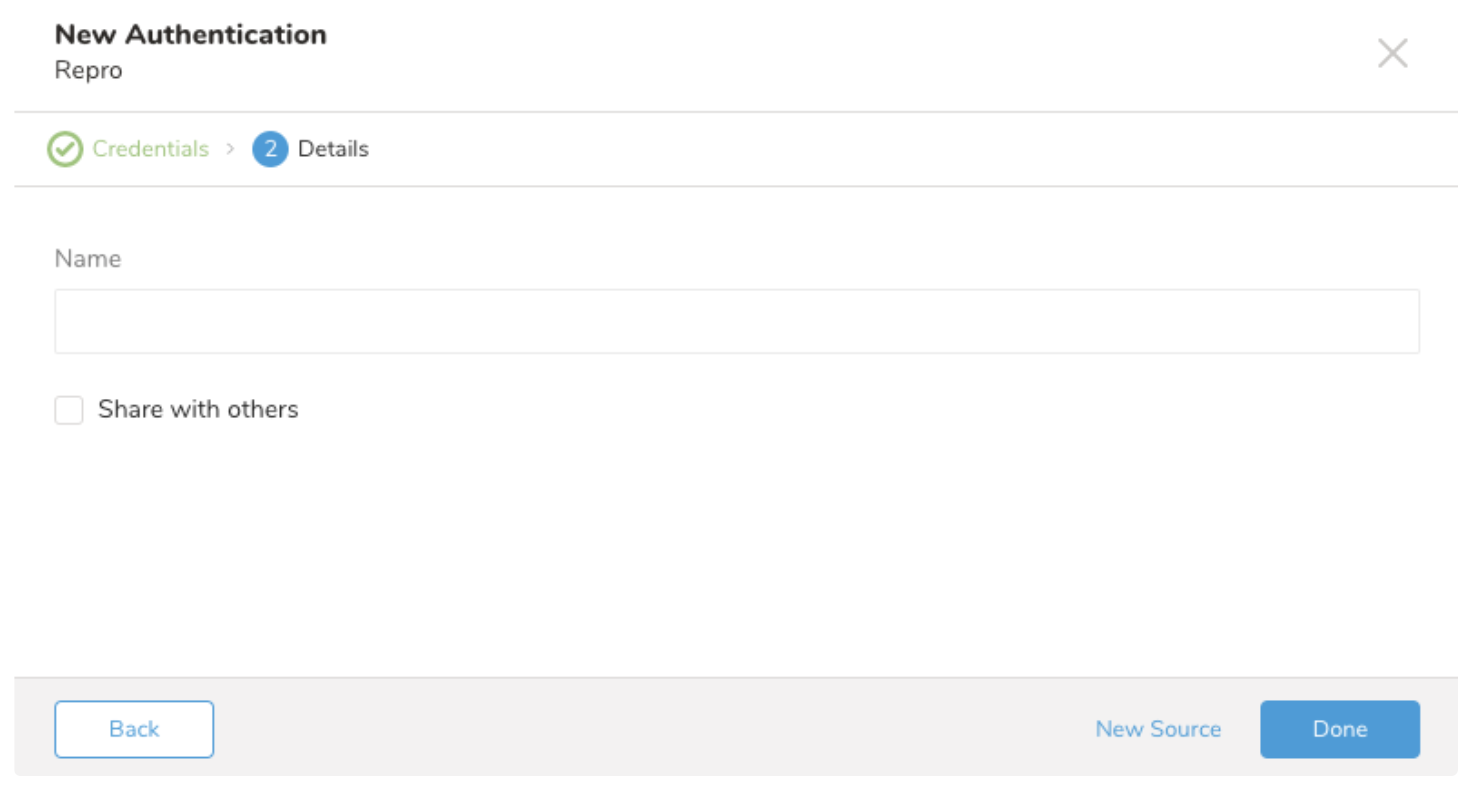

- The following dialog opens:
- Enter a name for your connection and click Done
In this step you create or reuse a query. In the query, you configure the data connection. You may need to define the column mapping in the query.
- Open the TD console.
- Navigate to Data Workbench > Queries.
- Select the query that you plan to use to export data.
- Click Export Results located at top of your query editor. The Choose Integration dialog opens. You have two options when selecting a connection to use to export the results, using an existing connection or creating a new one.
- Type the connection name in the search box to filter.
- Select your connection.
- Fill in the field values to create the new connection.

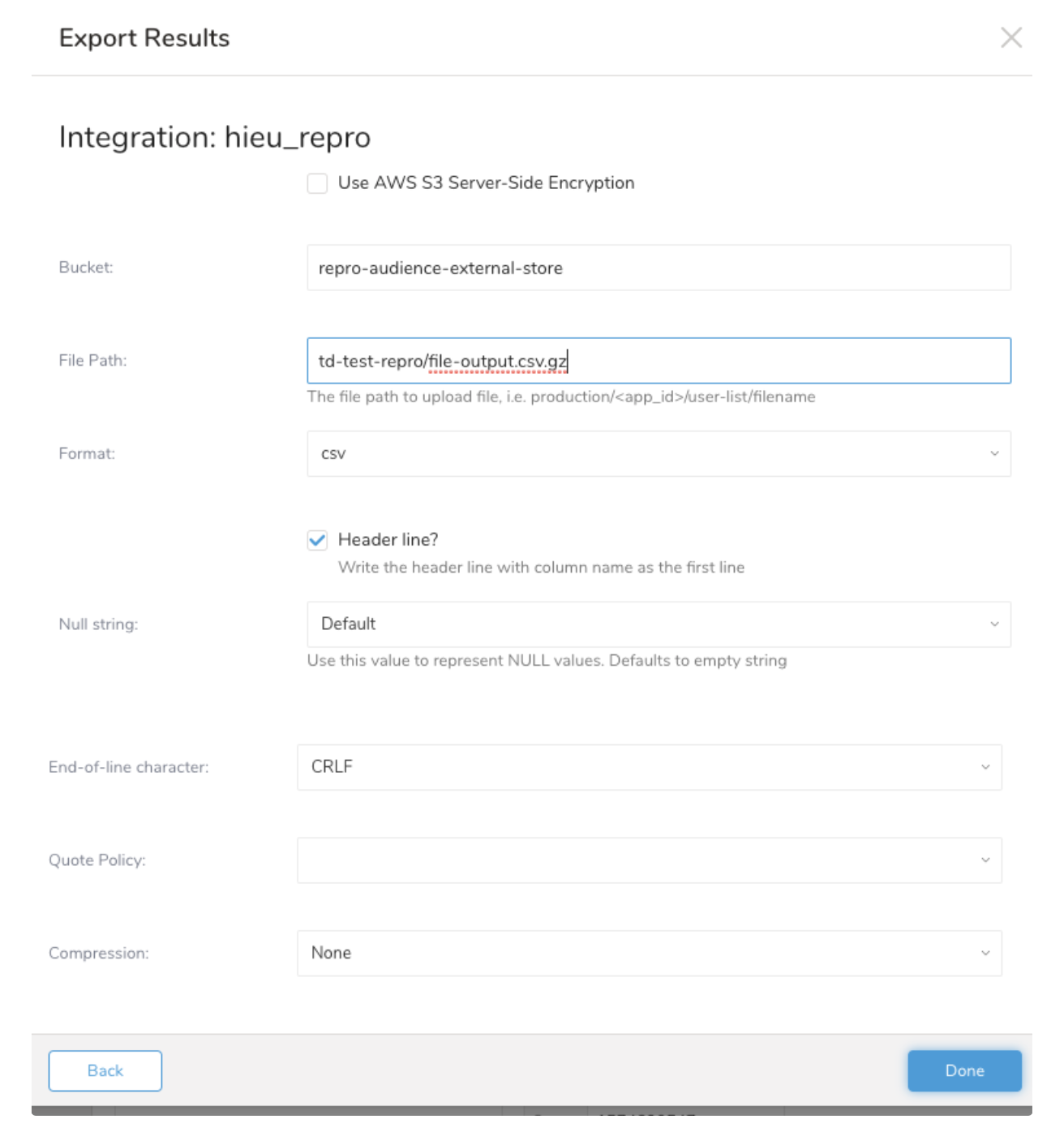

- Enter the required credentials for your new connection. Set the following parameters.
| Parameter | Description |
|---|---|
| Use AWS S3 Server-Side Encryption (optional) | Use S3 Server-side encryption |
| Server-Side Encryption algorithm: (optional) | The algorithm used for encryption |
| Bucket (required) | The bucket name in s3 |
| File Path (required) | The full path of the file includes file name and extension, i.e: production/<app_id>/user-list/filename.csv.gz |
| Format (required) | File export to csv, required extension in the file path |
| Header line (required) | The export file will contain first row as columns name |
| Null String (optional) | The value that will replace null in the file |
| End-of-line character (optional) | Character marked as end-of-line in the file |
| Quote Policy (required) | Quote policy for the file |
| Compression (required) | - Compress the file in gz, required extension in the file path - PGP Encryption - the file is encrypted using the public key before being uploaded |
| Public Key | - The public key is used to encrypt the file before being uploaded |
| Key Identifier | - Specifies the Key ID of the encryption subkey used to secure the file. The master key is excluded from the encryption process. |
| Amor | - Whether to use ASCII armor or not |
| Compression Type | - Defines the compression algorithm used to compress the file, which will be compressed before encryption for uploading to the SFTP server. - Note: Please ensure that you compress your file before encrypting and uploading. When you decrypt it, the file will return to a compressed format such as .gz or .bz2. |
Here is a sample configuration:
From Treasure Data, run the following query with export results into a connection for Repro:
Code Example
SELECT
an_email_column AS EMAIL,
another_phone_column AS PHONE
FROM
your_table;You can use Scheduled Jobs with Result Export to periodically write the output result to a target destination that you specify.
Treasure Data's scheduler feature supports periodic query execution to achieve high availability.
When two specifications provide conflicting schedule specifications, the specification requesting to execute more often is followed while the other schedule specification is ignored.
For example, if the cron schedule is '0 0 1 * 1', then the 'day of month' specification and 'day of week' are discordant because the former specification requires it to run every first day of each month at midnight (00:00), while the latter specification requires it to run every Monday at midnight (00:00). The latter specification is followed.
Navigate to Data Workbench > Queries
Create a new query or select an existing query.
Next to Schedule, select None.
In the drop-down, select one of the following schedule options:
Drop-down Value Description Custom cron... Review Custom cron... details. @daily (midnight) Run once a day at midnight (00:00 am) in the specified time zone. @hourly (:00) Run every hour at 00 minutes. None No schedule.
| Cron Value | Description |
|---|---|
0 * * * * | Run once an hour. |
0 0 * * * | Run once a day at midnight. |
0 0 1 * * | Run once a month at midnight on the morning of the first day of the month. |
| "" | Create a job that has no scheduled run time. |
* * * * *
- - - - -
| | | | |
| | | | +----- day of week (0 - 6) (Sunday=0)
| | | +---------- month (1 - 12)
| | +--------------- day of month (1 - 31)
| +-------------------- hour (0 - 23)
+------------------------- min (0 - 59)The following named entries can be used:
- Day of Week: sun, mon, tue, wed, thu, fri, sat.
- Month: jan, feb, mar, apr, may, jun, jul, aug, sep, oct, nov, dec.
A single space is required between each field. The values for each field can be composed of:
| Field Value | Example | Example Description |
|---|---|---|
| A single value, within the limits displayed above for each field. | ||
A wildcard '*' to indicate no restriction based on the field. | '0 0 1 * *' | Configures the schedule to run at midnight (00:00) on the first day of each month. |
A range '2-5', indicating the range of accepted values for the field. | '0 0 1-10 * *' | Configures the schedule to run at midnight (00:00) on the first 10 days of each month. |
A list of comma-separated values '2,3,4,5', indicating the list of accepted values for the field. | 0 0 1,11,21 * *' | Configures the schedule to run at midnight (00:00) every 1st, 11th, and 21st day of each month. |
A periodicity indicator '*/5' to express how often based on the field's valid range of values a schedule is allowed to run. | '30 */2 1 * *' | Configures the schedule to run on the 1st of every month, every 2 hours starting at 00:30. '0 0 */5 * *' configures the schedule to run at midnight (00:00) every 5 days starting on the 5th of each month. |
A comma-separated list of any of the above except the '*' wildcard is also supported '2,*/5,8-10'. | '0 0 5,*/10,25 * *' | Configures the schedule to run at midnight (00:00) every 5th, 10th, 20th, and 25th day of each month. |
- (Optional) You can delay the start time of a query by enabling the Delay execution.
Save the query with a name and run, or just run the query. Upon successful completion of the query, the query result is automatically exported to the specified destination.
Scheduled jobs that continuously fail due to configuration errors may be disabled on the system side after several notifications.
(Optional) You can delay the start time of a query by enabling the Delay execution.
Within Treasure Workflow, you can specify the use of this data connector to export data.
timezone: UTC
_export:
td:
database: sample_datasets
+td-result-into-target:
td>: queries/sample.sql
result_connection: your_connections_name
result_settings:
type: repro
bucket: bucket_name
region: ap-northeast-2
use_sse: true
sse_algorithm: AES256
auth_method: basic
session_token: session_token
path: /td-export-repro/file_output.csv
access_key_id: access_id
secret_access_key: secret_key
formatter: {type: csv, delimiter: "\t", newline: CRLF, newline_in_field: LF, charset: UTF-8,
quote_policy: MINIMAL, quote: '"', escape: \, null_string: \N, default_timezone: UTC}
encoders: {type: gzip}Click here for more information on using data connectors in workflow to export data.
- The Embulk-encoder-Encryption document: https://docs.treasuredata.com/articles/#!project-integrations/~embulk-encoder-encryption-pgp
