This data connector for Oracle Eloqua enables you to import contact and activity data into Treasure Data.

Prerequisites

Basic knowledge of Treasure Data.

Requirements and Limitations

Treasure Data account
Oracle Eloqua account

Static IP Address of Treasure Data Integration

If your security policy requires IP whitelisting, you must add Treasure Data's IP addresses to your allowlist to ensure a successful connection.

Please find the complete list of static IP addresses, organized by region, at the following link:
https://api-docs.treasuredata.com/en/overview/ip-addresses-integrations-result-workers/

Import from Oracle Eloqua via TD Console

Create Authentication

Your first step is to create a new authentication with a set of credentials.

Select Integrations Hub.
Select Catalog.

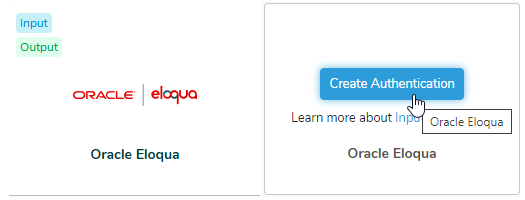

Search for Oracle Eloqua in the Catalog. Hover your mouse over the icon and select Create Authentication.

Ensure that the Credentials tab is selected and enter credential information for the integration.

Authentication Fields

Parameter	Description
Authentication Method	Basic (Default)
Eloqua Site Name	URL for the Oracle Eloqua site
Username	The username of your Oracle Eloqua account
Password	The password for your account

Select Continue.
Enter a name for your authentication, and select Done.

Create a Source

Open TD Console.
Navigate to Integrations Hub > Authentications.
Locate your new authentication and select New Source.

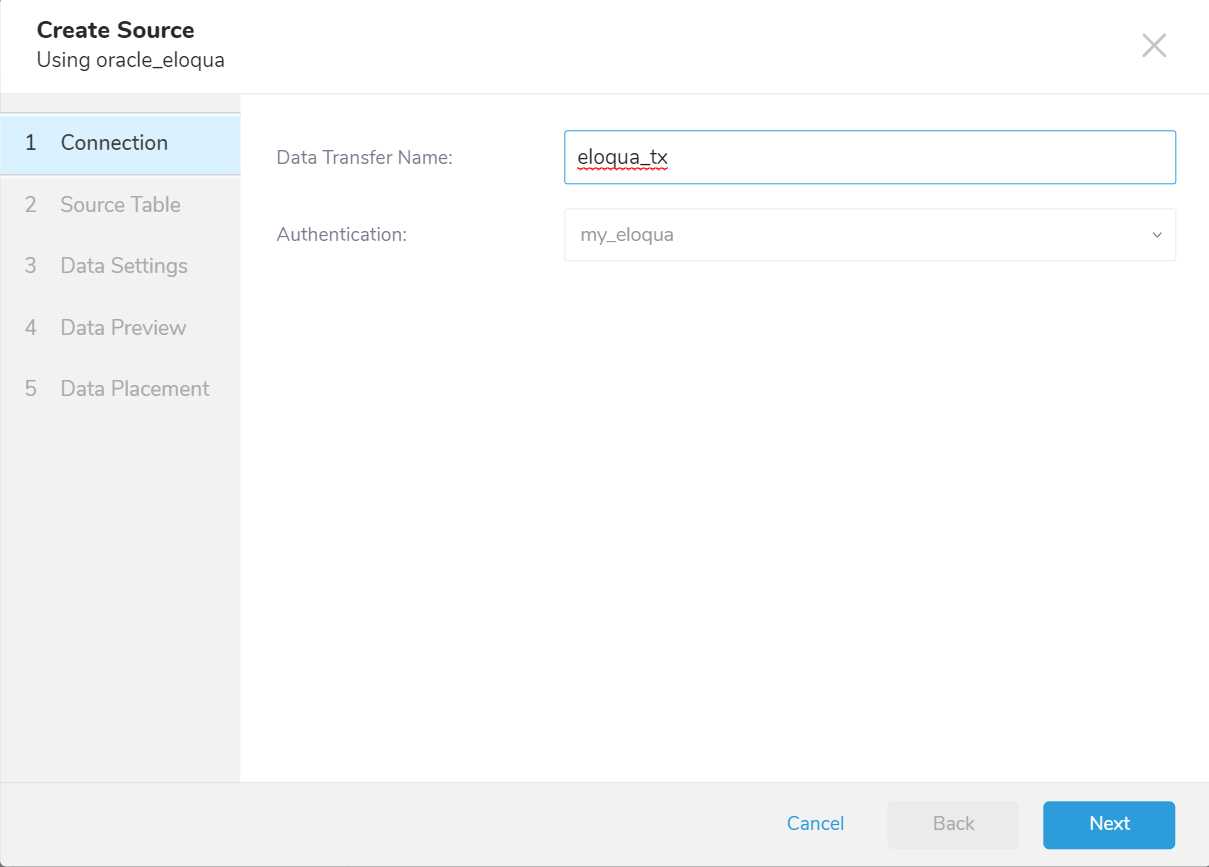

Create a Connection

In the connection tab, enter the following information and then select Next.

Parameter	Description
Data Transfer Name	You can define the name of your transfer.
Authentication	The authentication name that is used for a transfer.

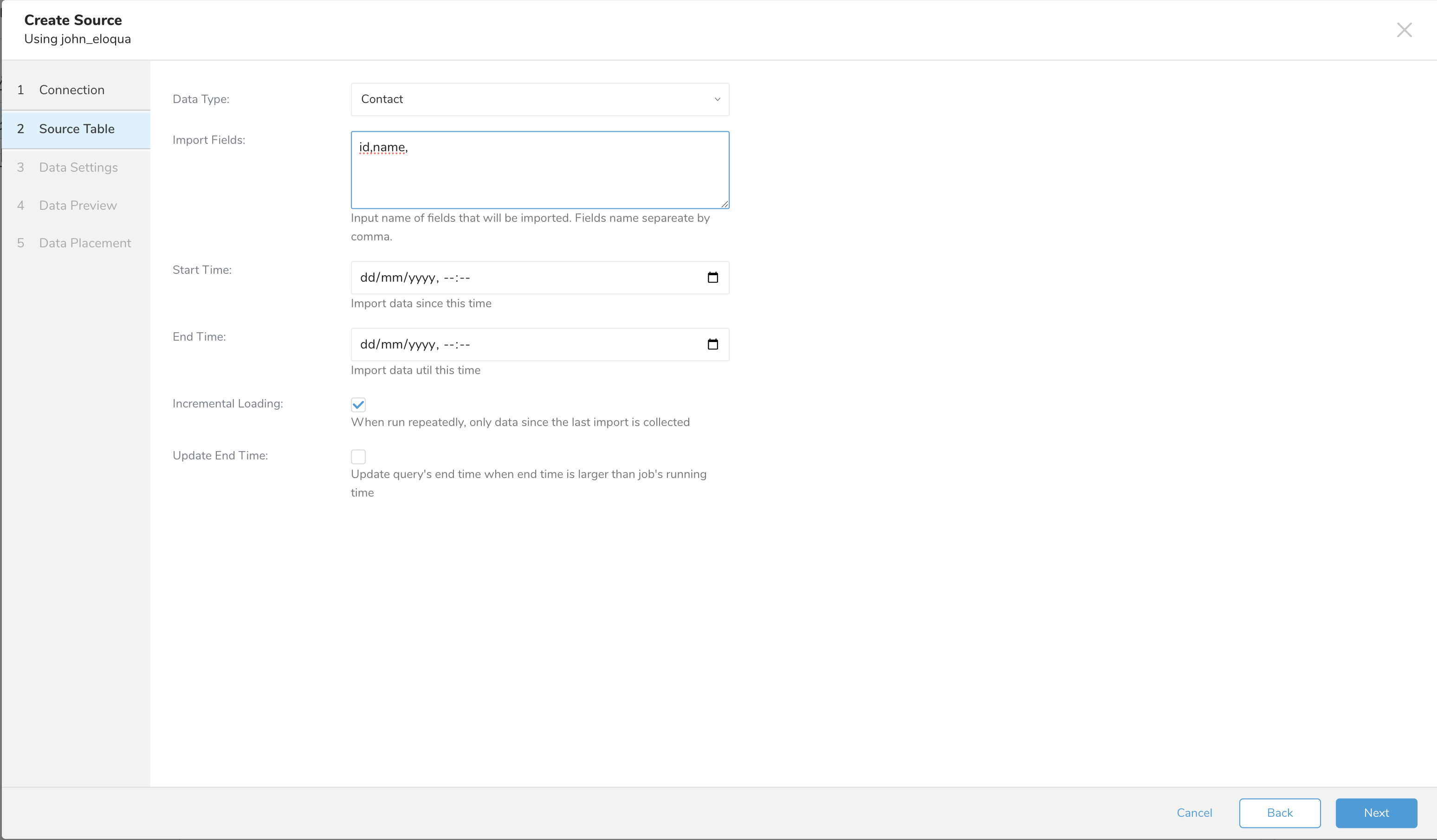

Identify a Source Table

Enter the following information in the Source Table tab and then select Next.

Parameter	Description
Data Type	Select either Contact or Activity
Import Fields	Choose the contact fields that you would like to import. Only support for Data Type Contact. Field names must be separated by comma.
Start Time	Import data since this time
End Time	Import data until this time
Incremental Loading	When the Incremental loading option is checked, it imports new and updated contacts incrementally.
Update End Time	When the end time is larger than the incremental job's running time and the Update End Time option is checked, the end time will be set to the job's running time.

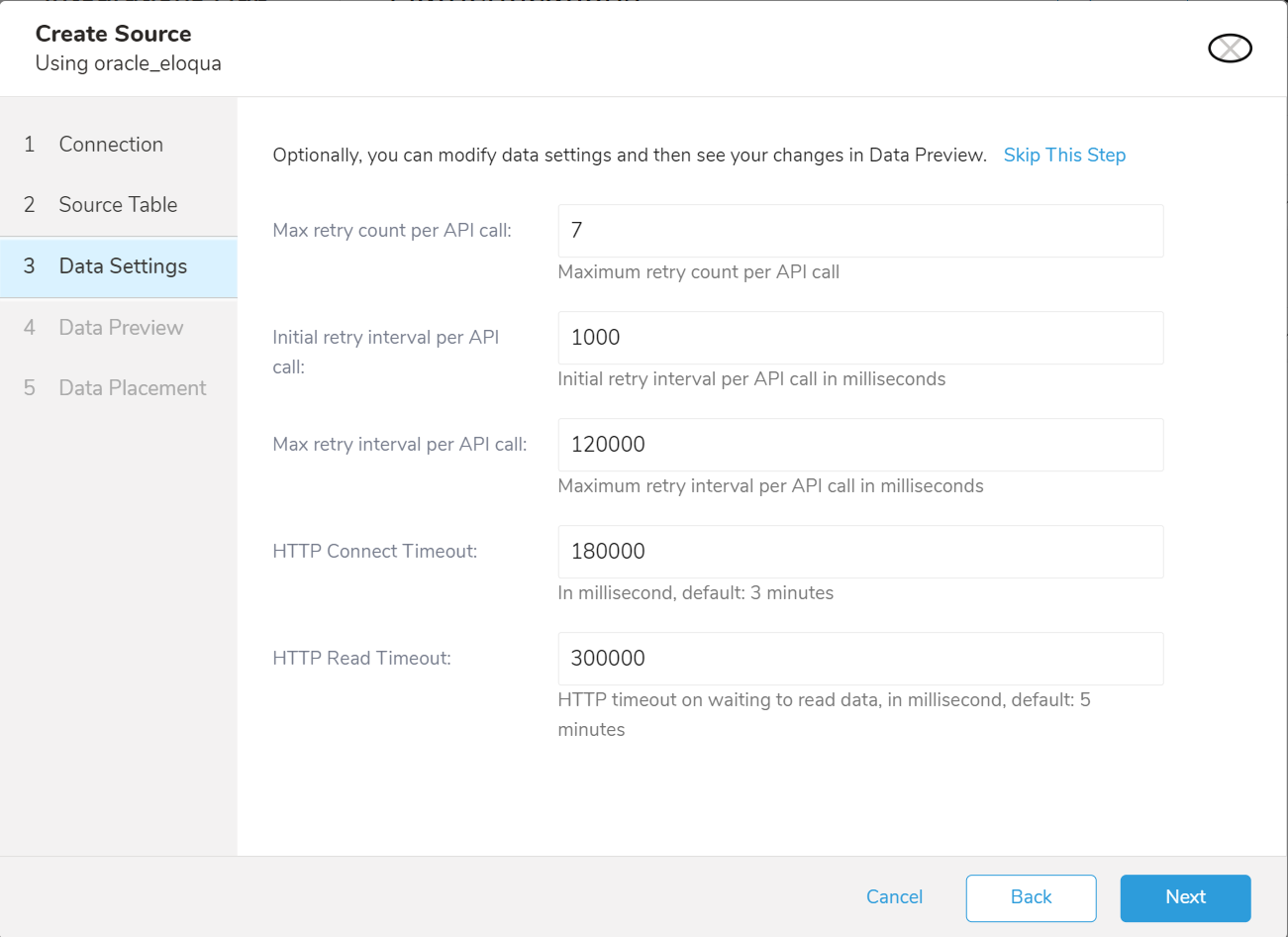

Define Data Settings

Enter the following information in the Data Setting tab and then select Next.

Parameter	Description
Max retry count per API call	Maximum retry count per API call
Initial retry interval per API call	Initial retry interval per API call in milliseconds
Max retry interval per API call	Maximum retry interval per API call in milliseconds
HTTP Connect Timeout	In milliseconds, default: 3 minutes
HTTP Read Timeout	In milliseconds, default: 3 minutes

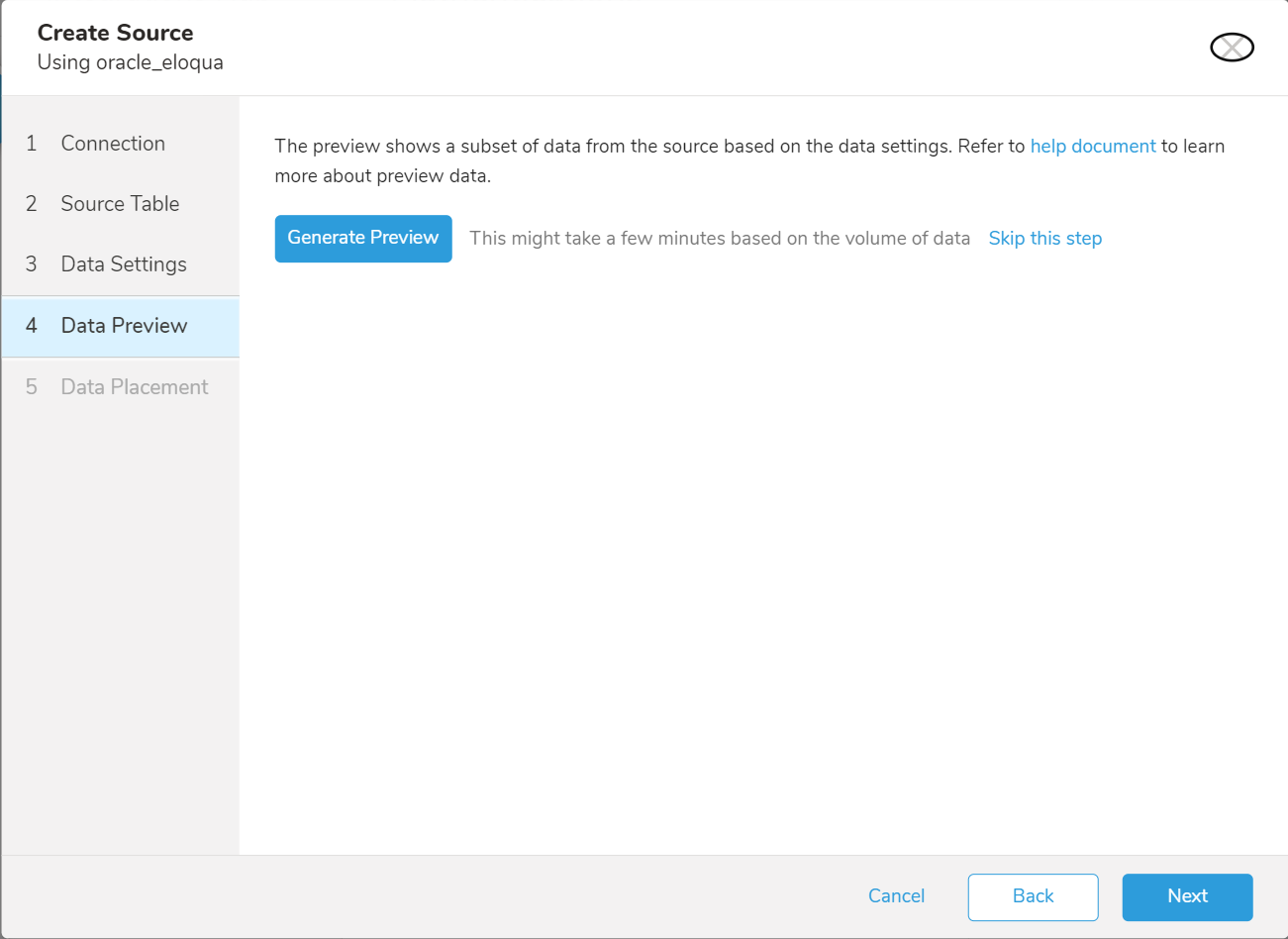

Preview Your Data

You can see a preview of your data before running the import by selecting Generate Preview.

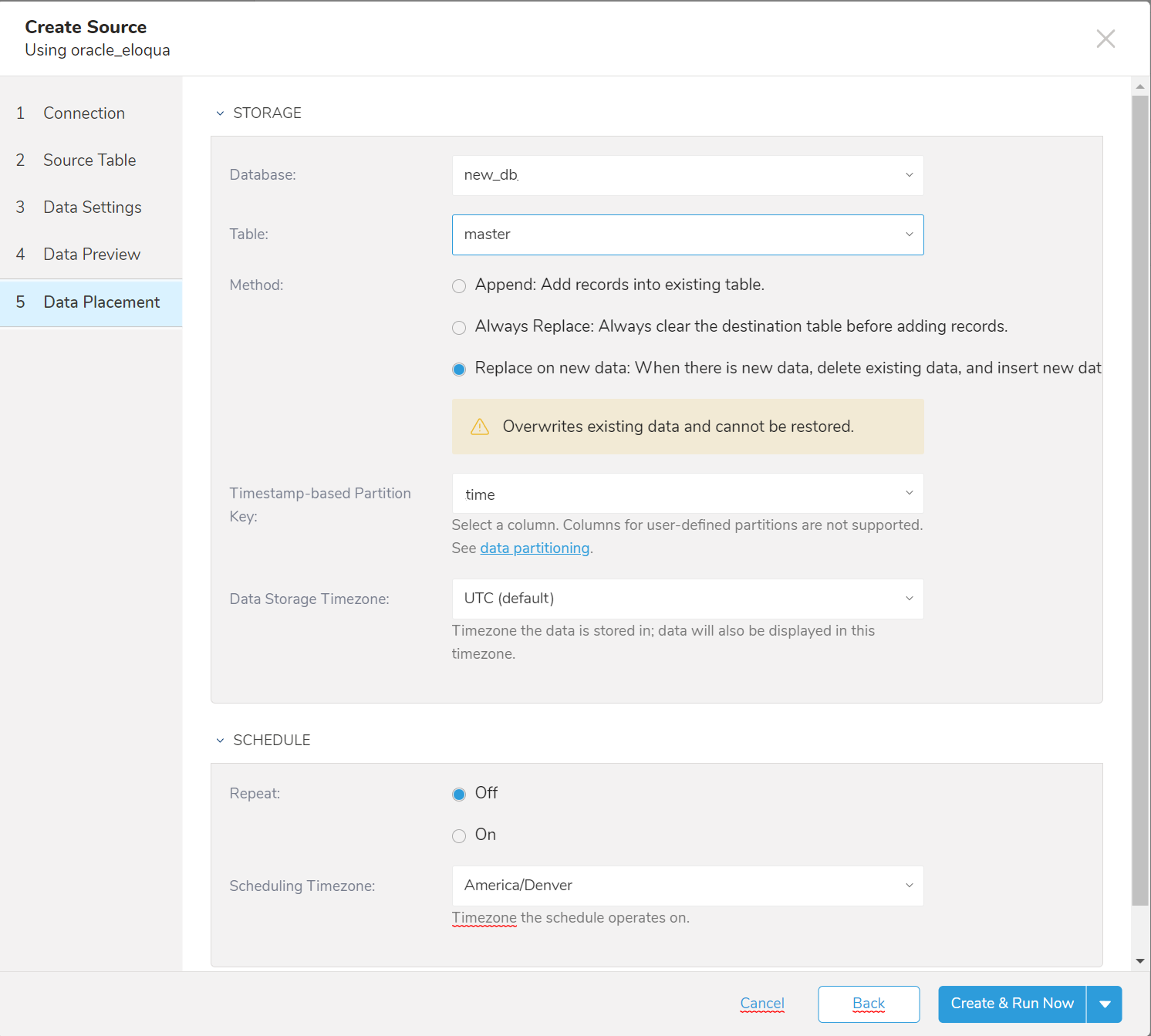

Define Your Data Placement

For data placement, select the target database and table where you want your data placed and indicate how often the import should run.

Select a Database > Select an existing or Create New Database.
Optionally, type a database name.
Select a Table> Select an existing or Create New Table.
Optionally, type a table name.
Choose the method for importing the data.
- Append (default)-Data import results are appended to the table.
  If the table does not exist, it will be created.
- Always Replace-Replaces the entire content of an existing table with the result output of the query. If the table does not exist, a new table is created.
- Replace on New Data: When new data is present, only replace the entire content of an existing table with the result output.
Select the Timestamp-based Partition Key column.
If you want to set a partition key seed different from the default key, you can specify the long or timestamp column as the partitioning time. As a default time column, it uses upload_time with the add_time filter.
Select the Data Storage Timezone for your data storage.
Under Schedule, you can choose when and how often to run this query.
- Run once:
  1. Select Off.
  2. Select Scheduling Timezone.
  3. Select Create & Run Now.
- Repeat the query:
  1. Select On.
  2. Select the Schedule. The UI provides these four options: @hourly, @daily and @monthly or custom cron.
  3. You can also select Delay Transfer and add a delay of execution time.
  4. Select Scheduling Timezone.
Select Create & Run Now.

After your transfer has run, you can see the results of your transfer in Data Workbench > Databases.

Import from Oracle Eloqua via CLI (Toolbelt)

Before setting up the connector, install the most current TD Toolbelt. You will need version 0.11.9 or later.

To determine your version:

$ td --version
0.16.10

Create Seed Configuration File (seed.yml)

in:
  type: eloqua
  site_name: "YOUR_ELOQUA_SITE_NAME"
  username: "YOUR_USERNAME"
  password: "YOURPASSWORD"
  target: activity
  data_type: EmailOpen
  start_time: "2018-05-07T00:00:00Z"
  end_time: "2018-05-08T00:00:00Z"
out:
  mode: replace

Option name	Description	Type	Required?	Default value
type
site_name	Eloqua Site name
username	Username	string	yes	N/A
password	Password	string	yes	N/A
target	contact or activity	string	yes	contact
data_type	`EmailOpen, Bounceback, Unsubscribe, EmailSend, Subscribe, EmailClickthrough,WebVisit, PageView, FormSubmit, External Activity`		yes, for activity target	EmailOpen
import_fields	The field name will be imported for the data type contact. If this value does not set and contact data type have more than 250 fields then first 250 fields will be imported. Other fields will be skipped.	string	no
start_time	Specify the date and time from which to fetch the records. Formatted `yyyy-MM-dd'T'hh:mm:ss.SSS'Z'` (e.g. ‘2018-05-07T00:00:00Z’). Exclusive	string	yes	N/A
end_time	Specify the allowable duration to fetch records. formatted `yyyy-MM-dd'T'hh:mm:ss.SSS'Z'` (e.g. ‘2018-05-08T00:00:00Z’). Inclusive	string	yes	N/A
incremental	`true` for “mode: append”, `false` for “mode: replace”.	bool	no	true
incremental_field	Incremental base on this field. Support values include: ActivityDate, LinkedToContactDate, CampaignResponseCreatedAt	string	yes, for activity data type WebVisit, PageView	ActivityDate
update_end_time	Update the query's end time when the end time is larger than the job's running time. Support for incremental job only.	bool	no	false
mode	Either append or replace records in the target table. Any manual schema changes made to the target table remain intact for replace mode.	string	yes	Append

Get a list of contact field names

Because we cannot read or get list fields on the Eloqua console, they are only supported via API. So, in the import job, we log out all contact field names to support selection and reuse for the import_fields config.

Ex:

You will see in the Eloqua import job console

2024-06-14 11:29:21.271 +0000 [INFO] (0001:transaction): All contact fields: C_EmailAddress,C_FirstName,C_LastName,C_Company............

If the contact object has more than 250 fields and the Import Fields are empty, then we will see this log.

Import contact fields: C_EmailAddress,C_FirstName,C_LastName,C_Company...........Skipped contact fields: C_Country1,C_Province1,C_City1

If you want to specify import fields, we can copy field names from all contact field logs and input them into Import Fields.

Preview the Data (Optional)

To preview the data, use the td connector:preview command.

$ td connector:preview load.yml
+-------------------+00--------------------+--------------------------+----
| activity_id:long  | activity_type:string | activity_date:timestamp  | ...
+---------------------+--------------------+--------------------------+----
| 12345678          | "__"                 | "2018-04-17 13:39:06 UTC"| ...
+-------------------+----------------------+--------------------------+----

Execute Load Job

Submit the load job. It may take a couple of hours, depending on the data size.

$ td connector:issue load.yml --database td_sample_db --table td_sample_table --time-column activity_date

You must specify the database and table where the data is stored.

Treasure Data recommends that you the -time-columnoption, because Treasure Data’s storage is partitioned by time. (See data partitioning.) If the option is not given, the data connector selects the first long or timestampcolumn as the partitioning time. The type of the column specified by -time-column must be either type long or type timestamp.

If your data doesn’t have a time column, you can add it using add_time filter option. For more details, see add_time filter function.

Thetd connector:issue command assumes that you have already created database(td_sample_db) and table(td_sample_table). If the database or the table do not exist in TD, then this command will not succeed. You can create the database and table manually by using the -auto-create-table option with the td connector:issue command:

$ td connector:issue load.yml --database td_sample_db --table td_sample_table --time-column activity_date --auto-create-table

Schedule Execution

You can schedule periodic data connector execution for the Eloqua import integration. By using this feature, you no longer need to use a cron daemon. However, Treasure Data recommends configuring your scheduler carefully to ensure high availability.

A new schedule can be created using the td connector:create command. You must specify the following:

name of the schedule
a cron-style schedule
the database and table where the data will be stored
the data connector configuration file.

$ td connector:create     daily_eloqua_import     "9 0 * * *"     td_sample_db     td_sample_table     load.yml

The cron parameter also accepts the following three options: @hourly, @daily, and @monthly.

By default, the schedule is set in the UTC timezone. You can set the schedule in a different timezone using the —t or—-timezone option. The --timezone option only supports extended timezone formats like 'Asia/Tokyo', 'America/Los_Angeles', etc. Timezone abbreviations like PST and CST are not supported and may lead to unexpected schedules.

List the Schedules

You can see the list of scheduled entries by using the command td connector:list.

$ td connector:list
+-------------------------+-------------+----------+-------+--------------+-----------------+------------------------------+
| Name                    | Cron        | Timezone | Delay | Database     | Table           | Config                       |
+-------------------------+-------------+----------+-------+--------------+-----------------+------------------------------+
| daily_eloqua_import | 9 0 * * *   | UTC      | 0     | td_sample_db | td_sample_table | {"type"=>"eloqua", ... } |
+-------------------------+-------------+----------+-------+--------------+-----------------+------------------------------+

Show the Setting and History of Schedules

td connector:show displays the execution setting of a schedule entry.

% td connector:show daily_eloqua_import
Name     : daily_eloqua_import
Cron     : 9 0 * * *
Timezone : UTC
Delay    : 0
Database : td_sample_db
Table    : td_sample_table

td connector:historydisplays the execution history of a schedule entry. To investigate the results of each execution, use td job jobid.

% td connector:history daily_eloqua_import
+--------+---------+---------+--------------+-----------------+----------+---------------------------+----------+
| JobID  | Status  | Records | Database     | Table           | Priority | Started                   | Duration |
+--------+---------+---------+--------------+-----------------+----------+---------------------------+----------+
| 678066 | success | 10000   | td_sample_db | td_sample_table | 0        | 2017-07-28 00:09:05 +0000 | 160      |
| 677968 | success | 10000   | td_sample_db | td_sample_table | 0        | 2017-07-27 00:09:07 +0000 | 161      |
| 677914 | success | 10000   | td_sample_db | td_sample_table | 0        | 2017-07-26 00:09:03 +0000 | 152      |
| 677872 | success | 10000   | td_sample_db | td_sample_table | 0        | 2017-07-25 00:09:04 +0000 | 163      |
| 677810 | success | 10000   | td_sample_db | td_sample_table | 0        | 2017-07-24 00:09:04 +0000 | 164      |
| 677766 | success | 10000   | td_sample_db | td_sample_table | 0        | 2017-07-23 00:09:04 +0000 | 155      |
| 677710 | success | 10000   | td_sample_db | td_sample_table | 0        | 2017-07-22 00:09:05 +0000 | 156      |
| 677610 | success | 10000   | td_sample_db | td_sample_table | 0        | 2017-07-21 00:09:04 +0000 | 157      |
+--------+---------+---------+--------------+-----------------+----------+---------------------------+----------+
8 rows in set

Delete the Schedule

td connector:delete removes the schedule.

$ td connector:delete daily_eloqua_import
