td-agent was discontinued in December 2023 and has been replaced by fluent-package. The fluent-package is the official successor maintained by the Cloud Native Computing Foundation.
Treasure Data provides Fluentd to collect server-side logs and events, to stream data from .NET applications.
- Basic knowledge of .NET
- Basic knowledge of Treasure Data
If your security policy requires IP whitelisting, you must add Treasure Data's IP addresses to your allowlist to ensure a successful connection.
Please find the complete list of static IP addresses, organized by region, at the following link: https://api-docs.treasuredata.com/en/overview/ip-addresses-integrations-result-workers/
If you are unsure of your account's region or require further assistance, please contact your Customer Success representative or our Technical Support team.

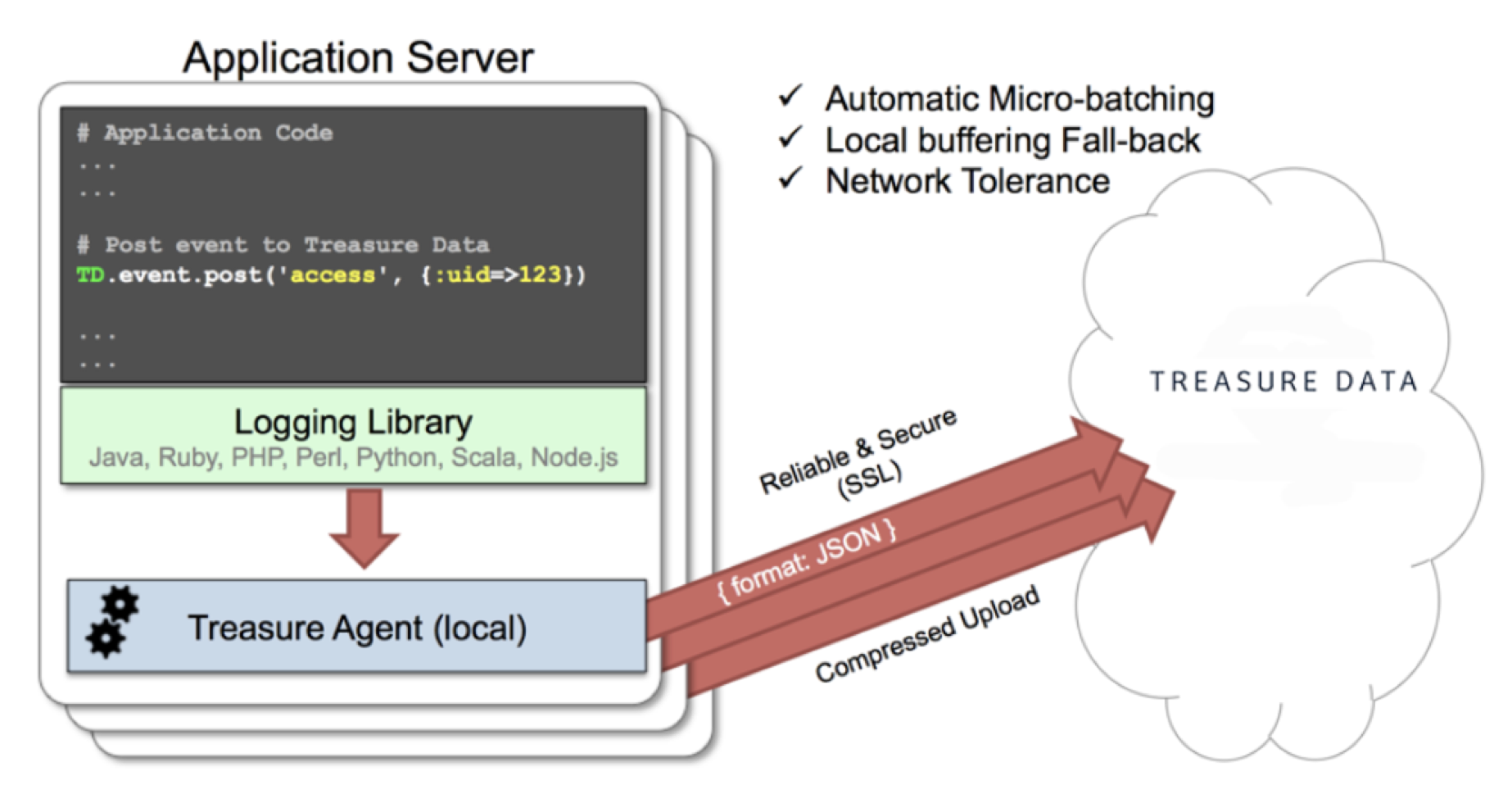

Install Fluentd (fluent-package) on your application servers. Fluentd sits within your application servers, focusing on uploading application logs to the cloud.
Fluentd receives the records via TCP/HTTP, buffers the records, and uploads the data to the cloud every 5 minutes. Because the daemon runs on a local node, the logging latency is negligible.
td-agent was discontinued in December 2023 and has been replaced by fluent-package. The fluent-package is the official successor maintained by the Cloud Native Computing Foundation. For migration guidance from td-agent, see Fluentd Installation Guide.
To install fluent-package, run one of the following commands based on your environment.
# fluent-package 6 LTS (recommended)
curl -fsSL https://fluentd.cdn.cncf.io/sh/install-redhat-fluent-package6-lts.sh | sh# Ubuntu 24.04 Noble - fluent-package 6 LTS
curl -fsSL https://fluentd.cdn.cncf.io/sh/install-ubuntu-noble-fluent-package6-lts.sh | sh
# Ubuntu 22.04 Jammy - fluent-package 6 LTS
curl -fsSL https://fluentd.cdn.cncf.io/sh/install-ubuntu-jammy-fluent-package6-lts.sh | sh# Debian Bookworm - fluent-package 6 LTS
curl -fsSL https://fluentd.cdn.cncf.io/sh/install-debian-bookworm-fluent-package6-lts.sh | sh# Amazon Linux 2023 - fluent-package 6 LTS
curl -fsSL https://fluentd.cdn.cncf.io/sh/install-amazon2023-fluent-package6-lts.sh | shDownload the MSI installer from:
After installation:
- Edit the configuration file at
C:/opt/fluent/etc/fluent/fluentd.conf - Start the service using
net start fluentdwinsvcor via Services administrative tool
fluent-package for macOS is planned to be available via Homebrew. For current installation options, see Fluentd Installation Guide.
After installation, start and verify the Fluentd service.
sudo systemctl start fluentd.service
sudo systemctl status fluentd.serviceThe configuration file is located at /etc/fluent/fluentd.conf.
net start fluentdwinsvcThe configuration file is located at C:\opt\fluent\etc\fluent\fluentd.conf.
fluentd -c /path/to/fluentd.confFor more details, see the Fluentd Documentation.
Specify your API key by setting the apikey option in your /etc/fluent/fluentd.conf file (for fluent-package).
# Input from HTTP
<source>
@type http
port 8888
</source>
# Treasure Data Output
<match td.*.*>
@type tdlog
endpoint api.treasuredata.com
apikey YOUR_API_KEY
auto_create_table
use_ssl true
<buffer>
@type file
path /var/log/fluent/buffer/td
</buffer>
</match>YOUR_API_KEY should be your actual API key string. You can retrieve your API key from your profile in TD Console. Using a write-only API key is recommended.
Restart the Fluentd service after the following lines are added:
# Linux
sudo systemctl restart fluentd.service
# macOS (gem installation)
# Restart the Fluentd process manuallyFluentd accepts data via port 8888, buffers the data (/var/log/fluent/buffer/td), and automatically uploads the data into the cloud.
Use the following code snippets to post the records to the local Treasure Agent via HTTP.
using System;
using System.Net;
using System.IO;
using System.Text;
using System.Web;
namespace CSharpTreasureAgentExample
{
class MainClass
{
public static void Main (string[] args)
{
string json_body = "{\"action\":\"login\",\"user\":2}";
string tag = "td.production.login";
// Prepare HTTP Request Object
HttpWebRequest request = (HttpWebRequest)WebRequest.Create("http://localhost:8888/" + tag);
request.Method = "POST";
request.ContentType = "application/x-www-form-urlencoded";
json_body = "json=" + System.Web.HttpUtility.UrlEncode(json_body);
byte[] bytes = Encoding.ASCII.GetBytes(json_body);
request.ContentLength = bytes.Length;
// Write the Request
Stream stream = request.GetRequestStream();
stream.Write(bytes, 0, bytes.Length);
stream.Flush();
stream.Close();
// Receive the Response
HttpWebResponse response = (HttpWebResponse)request.GetResponse();
if (response.StatusCode == HttpStatusCode.OK) {
using (StreamReader reader = new StreamReader (response.GetResponseStream ())) {
Console.WriteLine (reader.ReadToEnd ());
}
}
response.Close();
}
}
}Execute your program.
Sending a SIGUSR1 signal will flush Fluentd's buffer. The upload starts immediately.
# Linux
$ kill -USR1 $(cat /var/run/fluent/fluentd.pid)
# macOS (gem installation)
# Send SIGUSR1 to the Fluentd processTo confirm that your data has been uploaded successfully, check your dataset in the TD Console, Databases view.
Or, issue the td tables command if you have a CLI client.
$ td tables
+------------+------------+------+-----------+
| Database | Table | Type | Count |
+------------+------------+------+-----------+
| production | login | log | 1 |
+------------+------------+------+-----------+For high-traffic websites (more than 5 application nodes), use a high availability configuration of Fluentd to improve data transfer reliability and query performance.
Monitoring Fluentd itself is also important. For general monitoring methods for Fluentd, see Monitoring Fluentd.
Fluentd is fully open-sourced under the Fluentd project.
