The MediaMath Platform empowers you to take control of your marketing to deliver efficient and effective omnichannel campaigns in. With this integration, you can write Treasure Data job results directly to your MediaMath Server.
- Basic knowledge of Treasure Data, including the TD Toolbelt.
- A MediaMath account.
- Specific query columns with exact column names (case insensitive) and data type
- The size of data file upload to MediaMath SFTP server may not exceed 4 GB
If your security policy requires IP whitelisting, you must add Treasure Data's IP addresses to your allowlist to ensure a successful connection.
Please find the complete list of static IP addresses, organized by region, at the following link:
https://api-docs.treasuredata.com/en/overview/ip-addresses-integrations-result-workers/
We support two options for connecting to MediaMath. You can use Treasure Data as the Data Provider or you can use your own MediaMath credentials. We encourage you to bring your own credentials.
In Treasure Data, you must create and configure the data connection before running your query. As part of the data connection, you provide authentication to access the integration.
Open TD Console.
Navigate to Integrations Hub > Catalog.
Search for and select MediaMath.
Select Create Authentication.

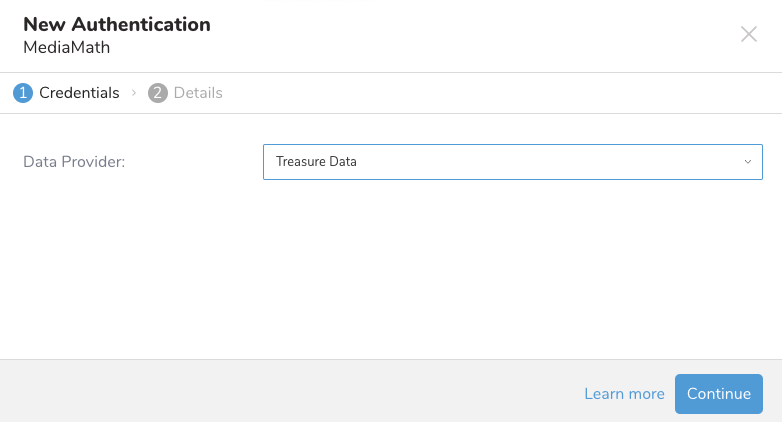

Select Data Provider. You can select either Treasure Data or User account. If you select Treasure Data, select Continue. If you select User, enter your credentials to authenticate. Select Continue.
Create a name for your authentication.
Select Done.
Your query requires one and only one column name id. Other column names will be segment names.

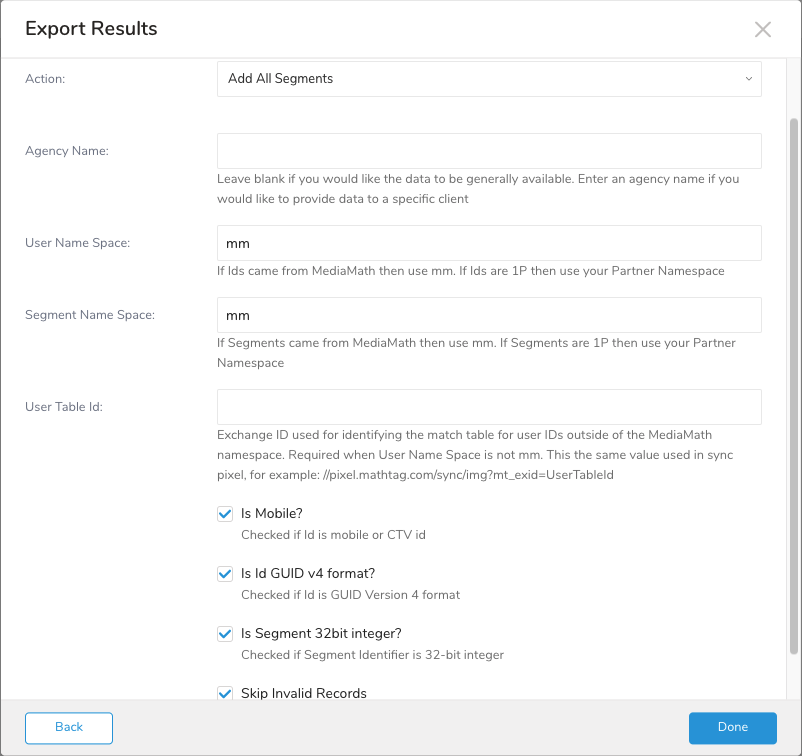

| Parameters | Value | Description |
|---|---|---|
| Action | - Add All Segments - Remove All Segments - Update Segments Based On Data | |
| Agency Name | Agency Name from MediaMath. Only accept alphanumeric. | |
| User Name Space | If Ids came from MediaMath then use mm. If Ids are 1P then use your Partner Namespace. Only accept alphabet and cannot be blank or empty. | |
| Segment Name Space | If Segments came from MediaMath then use mm. If Segments are 1P then use your Partner Namespace. Only accept alphabet and cannot be blank or empty. | |
| User Table Id | Exchange ID is used for identifying the match table for user IDs outside of the MediaMath namespace. Required when User Name Space is not mm. | |
| Is Mobile? | Checked if Id is mobile or CTV id | |
| Is Id GUID v4 format? | Checked if Id is GUID Version 4 format | |
| Is Segment 32bit integer? | Checked if Segment Identifier is a 32-bit integer (segment name from 0 - 2^32) - If this option is unchecked then the segment is the value entered in "Output Column Name" - If this option is checked then the segment is the value entered for "SegmentId" | |
| Skip Invalid Records | If you checked when data rows identify errors, the export job still continues and is successful. Otherwise, the job fails. |
Your query requires only one column with the name id and a data type of 'String'. Other columns are segment names.
custom object query
SELECT id, segment_1, segment_2 FROM your_table;You can use Scheduled Jobs with Result Export to periodically write the output result to a target destination that you specify.
Treasure Data's scheduler feature supports periodic query execution to achieve high availability.
When two specifications provide conflicting schedule specifications, the specification requesting to execute more often is followed while the other schedule specification is ignored.
For example, if the cron schedule is '0 0 1 * 1', then the 'day of month' specification and 'day of week' are discordant because the former specification requires it to run every first day of each month at midnight (00:00), while the latter specification requires it to run every Monday at midnight (00:00). The latter specification is followed.
Navigate to Data Workbench > Queries
Create a new query or select an existing query.
Next to Schedule, select None.
In the drop-down, select one of the following schedule options:
Drop-down Value Description Custom cron... Review Custom cron... details. @daily (midnight) Run once a day at midnight (00:00 am) in the specified time zone. @hourly (:00) Run every hour at 00 minutes. None No schedule.
| Cron Value | Description |
|---|---|
0 * * * * | Run once an hour. |
0 0 * * * | Run once a day at midnight. |
0 0 1 * * | Run once a month at midnight on the morning of the first day of the month. |
| "" | Create a job that has no scheduled run time. |
* * * * *
- - - - -
| | | | |
| | | | +----- day of week (0 - 6) (Sunday=0)
| | | +---------- month (1 - 12)
| | +--------------- day of month (1 - 31)
| +-------------------- hour (0 - 23)
+------------------------- min (0 - 59)The following named entries can be used:
- Day of Week: sun, mon, tue, wed, thu, fri, sat.
- Month: jan, feb, mar, apr, may, jun, jul, aug, sep, oct, nov, dec.
A single space is required between each field. The values for each field can be composed of:
| Field Value | Example | Example Description |
|---|---|---|
| A single value, within the limits displayed above for each field. | ||
A wildcard '*' to indicate no restriction based on the field. | '0 0 1 * *' | Configures the schedule to run at midnight (00:00) on the first day of each month. |
A range '2-5', indicating the range of accepted values for the field. | '0 0 1-10 * *' | Configures the schedule to run at midnight (00:00) on the first 10 days of each month. |
A list of comma-separated values '2,3,4,5', indicating the list of accepted values for the field. | 0 0 1,11,21 * *' | Configures the schedule to run at midnight (00:00) every 1st, 11th, and 21st day of each month. |
A periodicity indicator '*/5' to express how often based on the field's valid range of values a schedule is allowed to run. | '30 */2 1 * *' | Configures the schedule to run on the 1st of every month, every 2 hours starting at 00:30. '0 0 */5 * *' configures the schedule to run at midnight (00:00) every 5 days starting on the 5th of each month. |
A comma-separated list of any of the above except the '*' wildcard is also supported '2,*/5,8-10'. | '0 0 5,*/10,25 * *' | Configures the schedule to run at midnight (00:00) every 5th, 10th, 20th, and 25th day of each month. |
- (Optional) You can delay the start time of a query by enabling the Delay execution.
Save the query with a name and run, or just run the query. Upon successful completion of the query, the query result is automatically exported to the specified destination.
Scheduled jobs that continuously fail due to configuration errors may be disabled on the system side after several notifications.
(Optional) You can delay the start time of a query by enabling the Delay execution.
Within Treasure Workflow, you can specify the use of a data connector to export data.
Learn more at Using Workflows to Export Data with the TD Toolbelt.
The action accepts the following values:
- Add
- Remove
- Data driven
_export:
td:
database: mediamath_db
+mediamath_export_task:
td>: export.sql
database: ${td.database}
result_connection: new_created_mediamath_auth
result_settings:
action: add
agency_name: agency_name
id_name_space: mm
segment_name_space: mm
user_table_id: user_table_id
is_mobile: true
is_id_guid_format: true
is_numeric_segment: true
skip_invalid_records: true
