Karte Export Integration

Learn more about KARTE Import Integration.

You can use the Karte connector to write job results from queries run in Treasure Data to your Google Cloud Storage.

Prerequisites

  • Basic knowledge of Treasure Data, including the Toolbelt.
  • A Google Cloud Platform account

Getting Google Cloud Platform Credentials

Before creating the connector, you need to gather the following information: your Project ID, and JSON Credential.

JSON Credential

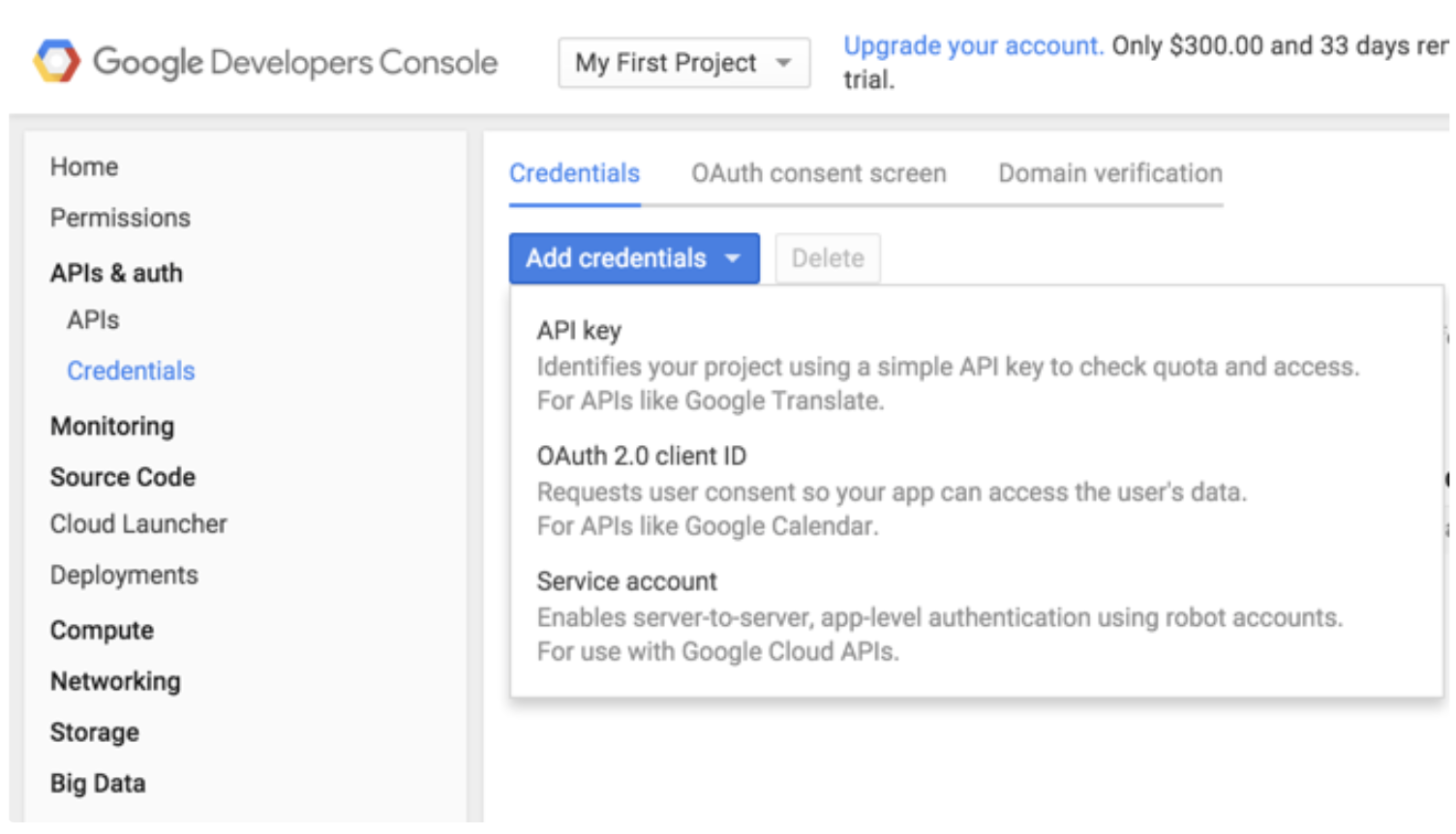

The integration with Google Cloud Storage is based on server-to-server API authentication. Go to your Google Developer Console and select Credentials under APIs & auth at the left menu. Then, select Service account.

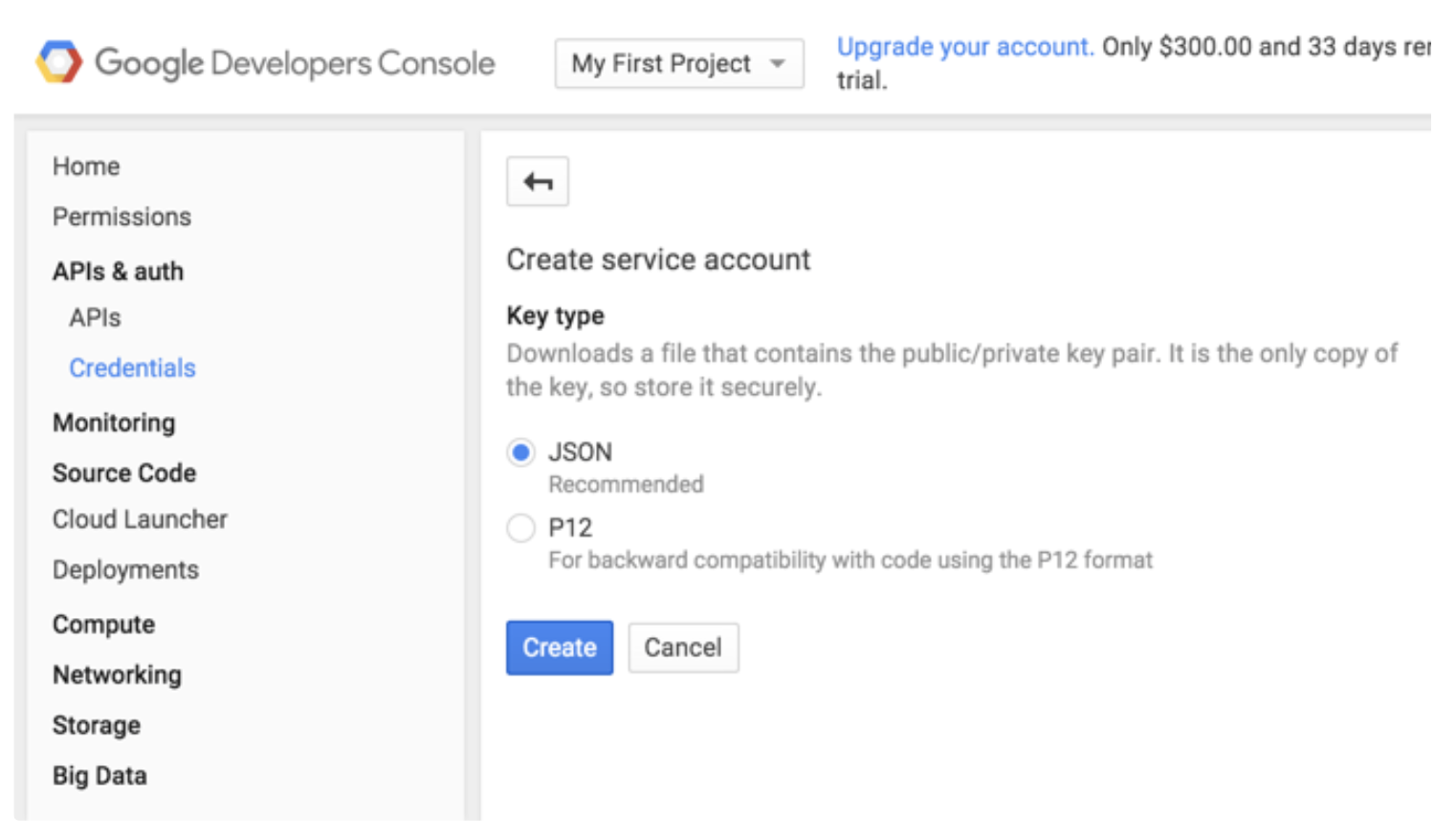

Select the JSON based key type, which is Google’s recommended configuration. The key is automatically downloaded by the browser.

The Service Account owner, who generated JSON Credentials, must have Write permission for destination bucket.

Specifying Output in Your KARTE Connector

Using the TD Console

Create the destination Bucket in Google Cloud Storage

Create your bucket from your Google Cloud Storage console.

Write the query

Go to the Treasure Data Console query editor page and compile your query.

Specify the Result Export target

In the same window, select the Create New Connection in the Result Export.

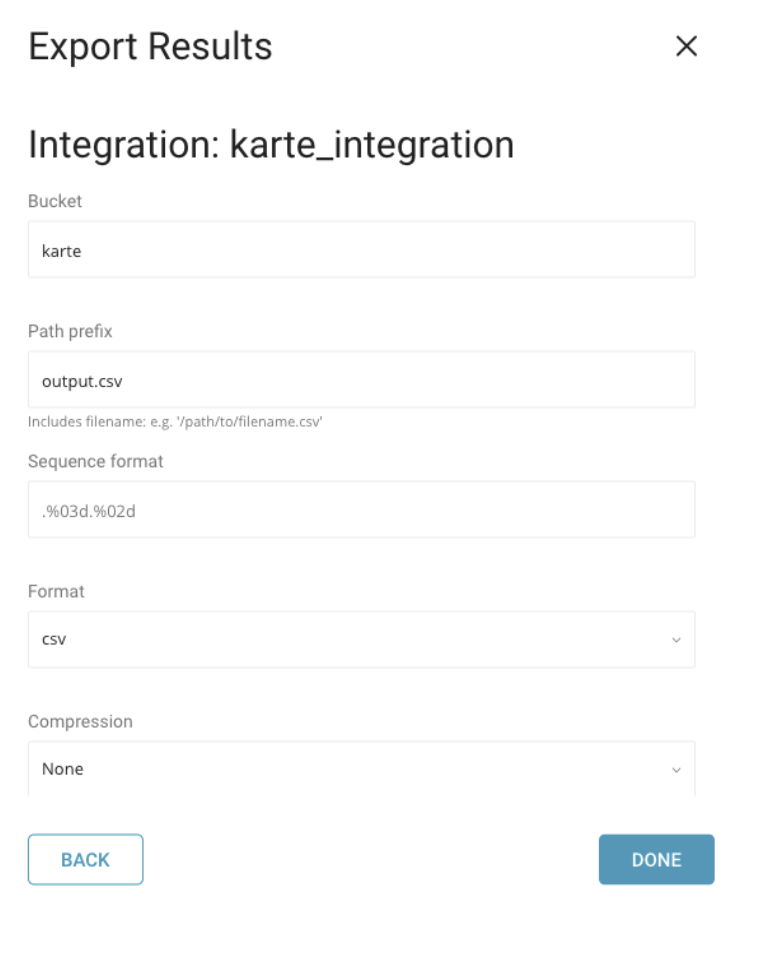

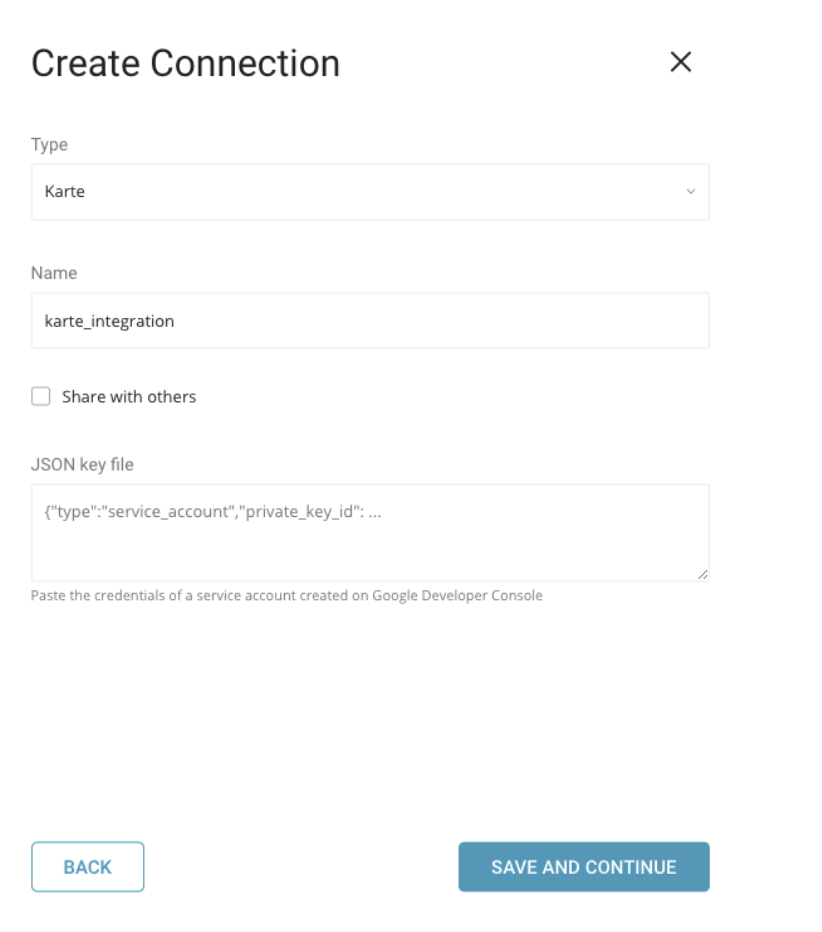

In the dialog opens, search for and select your connection type: KARTE. Provide a name for your KARTE connection. Complete the information, including your JSON Credential, Bucket name, and Path:

Execute the query

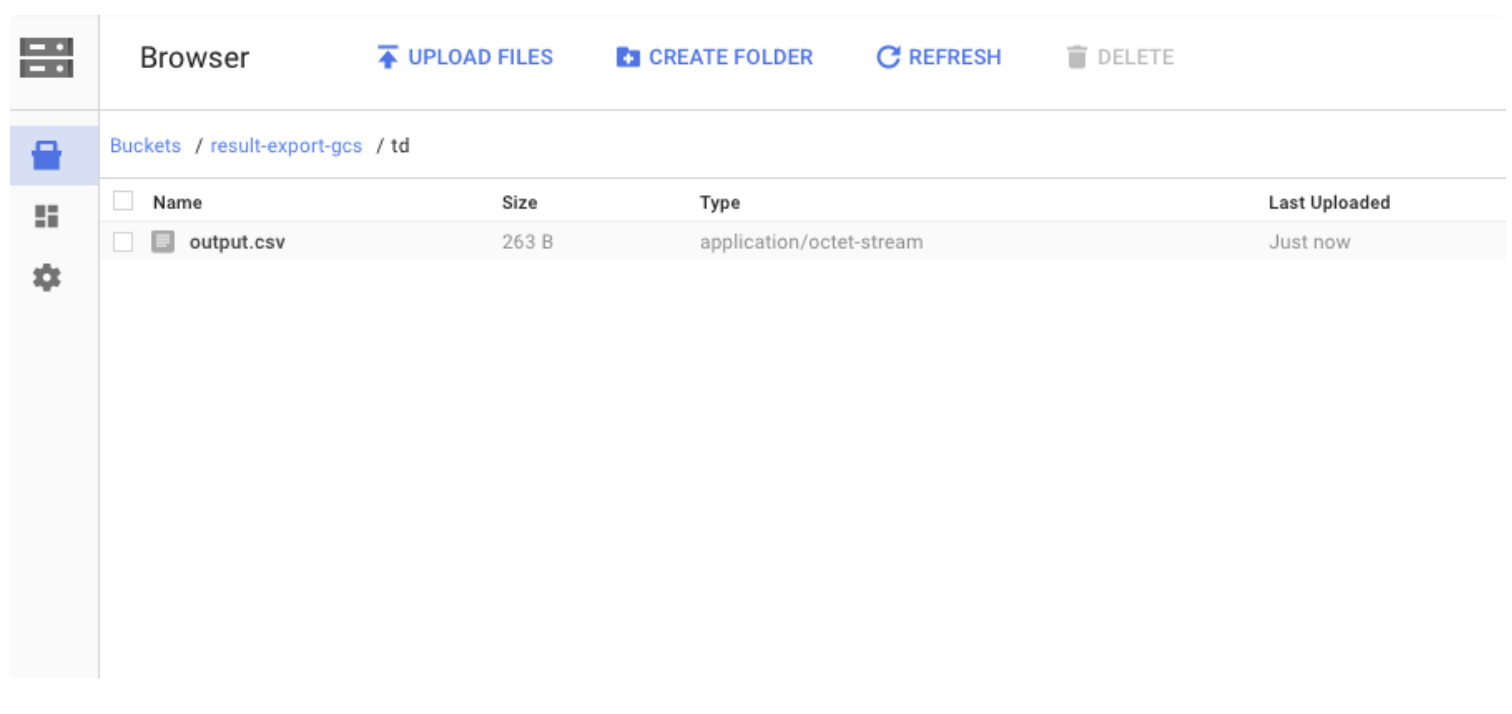

Finally, either save the query with a name or just run the query. After the successful completion of the query, the results are automatically sent to the specified Google Cloud Storage destination.

Activate a Segment in Audience Studio

You can also send segment data to the target platform by creating an activation in the Audience Studio.

  1. Navigate to Audience Studio.
  2. Select a parent segment.
  3. Open the target segment, right-mouse click, and then select Create Activation.
  4. In the Details panel, enter an Activation name and configure the activation according to the previous section on Configuration Parameters.
  5. Customize the activation output in the Output Mapping panel.

  • Attribute Columns
    • Select Export All Columns to export all columns without making any changes.
    • Select + Add Columns to add specific columns for the export. The Output Column Name pre-populates with the same Source column name. You can update the Output Column Name. Continue to select + Add Columnsto add new columns for your activation output.
  • String Builder
    • + Add string to create strings for export. Select from the following values:
      • String: Choose any value; use text to create a custom value.
      • Timestamp: The date and time of the export.
      • Segment Id: The segment ID number.
      • Segment Name: The segment name.
      • Audience Id: The parent segment number.
  1. Set a Schedule.

  • Select the values to define your schedule and optionally include email notifications.
  1. Select Create.

If you need to create an activation for a batch journey, review Creating a Batch Journey Activation.

Use the CLI

You can set a scheduled query to send job results to Google Cloud Storage using KARTE.

Designate your json_key and escape the newline with backslash.

Example

$ td sched:create scheduled_karte "10 6 * * *" \
-d dataconnector_db "SELECT id,account,purchase,comment,time FROM data_connectors" \
-r '{"type":"karte","bucket":"samplebucket","path_prefix":"/output/test.csv","format":"csv","compression":"","header_line":false,"delimiter":",","null_string":"","newline":"CRLF",  "json_keyfile":"{\"private_key_id\": \"ABCDEFGHIJ\", \"private_key\": \"-----BEGIN PRIVATE KEY-----\\nABCDEFGHIJ\\ABCDEFGHIJ\\n-----END PRIVATE KEY-----\\n\", \"client_email\": \"ABCDEFGHIJ@developer.gserviceaccount.com\", \"client_id\": \"ABCDEFGHIJ.apps.googleusercontent.com\", \"type\": \"service_account\"}"}'

(Optional) Configure Export Results in Workflow

Within Treasure Workflow, you can specify the use of this data connector to output data.

timezone: UTC

_export:
  td:
    database: sample_datasets

+td-result-into-target:
  td>: queries/sample.sql
  result_connection: karte_integration
  result_settings:
    bucket: your_bucket
    path_prefix: dir/example.csv.gz
    format: csv
    compression: gz
    newline: CR
    ....

For more information on using data connectors in Treasure Data Workflow to export data, review Exporting Data with Parameters.

KARTE Connector Parameters

You can use the following parameters when configuring the KARTE connector.

bucketbucket name
path_prefixfile path
format"csv" or "tsv"
compression"" or "gz", "encryption_pgp"
public keyThe public key is used to encrypt the file before being uploaded
Key IdentifierSpecifies the Key ID of the encryption subkey used to secure the file. The master key is excluded from the encryption process.
AmorWhether to use ASCII armor or not
Compression Type- Defines the compression algorithm used to compress the file, which will be compressed before encryption for uploading to the SFTP server. - Note: Please ensure that you compress your file before encrypting and uploading. When you decrypt it, the file will return to a compressed format such as .gz or .bz2.
header_linetrue or false
delimiter"," or "\t" or "
null_string"" or "\N"
newline"CRLF" or "CR" or "LF"
