Use this data connector to directly import data from your FTP server to Treasure Data.
For sample workflows on importing data from your FTP server, view Treasure Boxes.
- Basic knowledge of Treasure Data
- Basic knowledge of FTP
- Make sure you have a valid protocol. If you intend to FTP or FTPS, you can use this Data Connector for FTP. If SFTP, use the SFTP Integration.
- If you’re using a firewall, check your accepted IP range/port. Server administrators sometimes change the default port number for security reasons.
- Be sure that FTP uses TCP/21 as the default control port but also uses any TCP ports as a data transfer port when you’re using passive mode. This port range will depend on your server’s settings.
- Check that you’re connecting with passive mode. activeP mode generally doesn’t work because it establishes the connection from the FTP server-side.
- If you’re using FTPS, there are 2 modes Explicit and Implicit. Explicit mode is typically used.
- For some integrations, if you choose incremental loading, you might need to ensure that the columns have an index to avoid a full table scan.
- Only Timestamp, Datetime, and numerical columns are supported as incremental_columns.
- The incremental_columns is required for the raw query because it cannot detect the Primary keys for a complex query.
In Treasure Data, you must create and configure the data connection prior to running your query. As part of the data connection, you provide authentication to access the integration.
Open TD Console.
Navigate to Integrations Hub > Catalog.

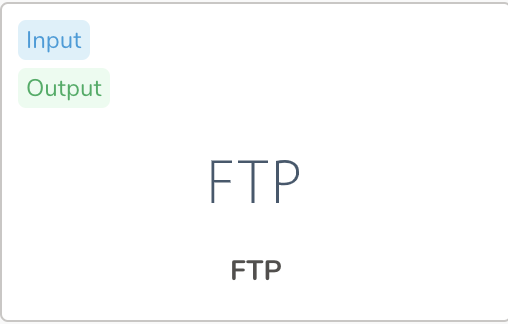

Search for and select FTP.
- Select Create Authentication.

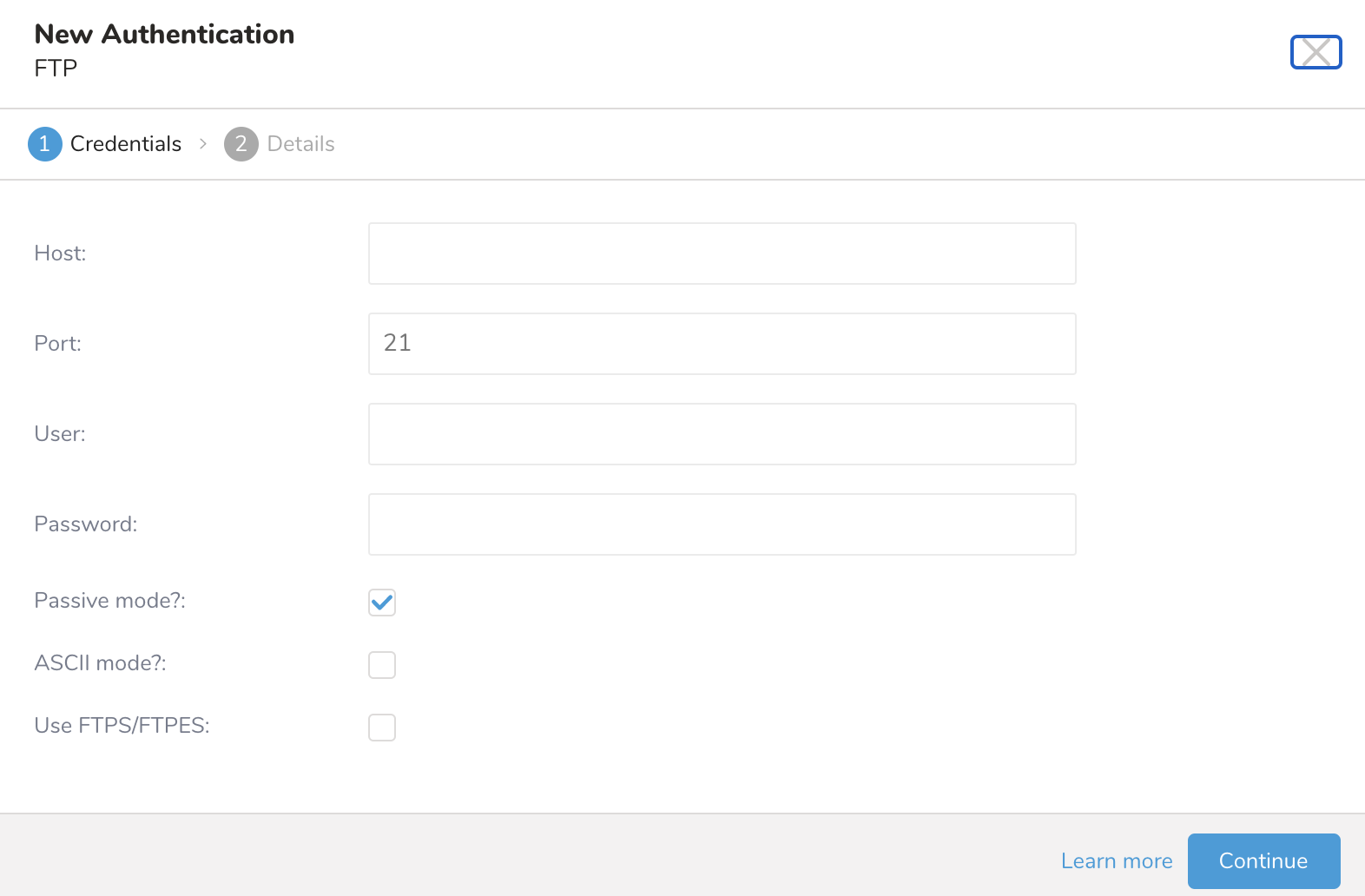

- Enter the required credentials for your remote FTP instance. Depending on your selections, the fields you see might vary:
| Field | Description |
|---|---|
| Host | The host information of the remote FTP instance, for example, an IP address. |
| Port | The connection port on the remote FTP instance the default is 21. |
| User | The user name used to connect to the remote FTP instance. |
| Password | The password used to connect to the remote FTP instance. |
| Passive mode | Use passive mode (default: checked) |
| ASCII mode | Use ASCII mode instead of binary mode (boolean, default: unchecked) |
| Use FTPS/FTPES | Use FTPS (SSL encryption). (boolean, default: unchecked) |
| Verify cert | Verify the certification provided by the server. By default, the connection fails if the server certificate is not signed by one of the CAs in JVM's default trusted CA list. |
| Verify hostname | Verify server's hostname matches the provided certificate. |
| Enable FTPES | FTPES is a security extension to FTPS |
| SSL CA Cert Content | Paste the contents of the certificate file |
Select Continue.
Enter a name for your connection.
Select Continue.
After creating the authenticated connection, you are automatically taken to Authentications.
- Search for the connection you created.
- Select New Source.
- Type a name for your Source in the Data Transfer field**.**
- Select Next.
The Source Table dialog opens.

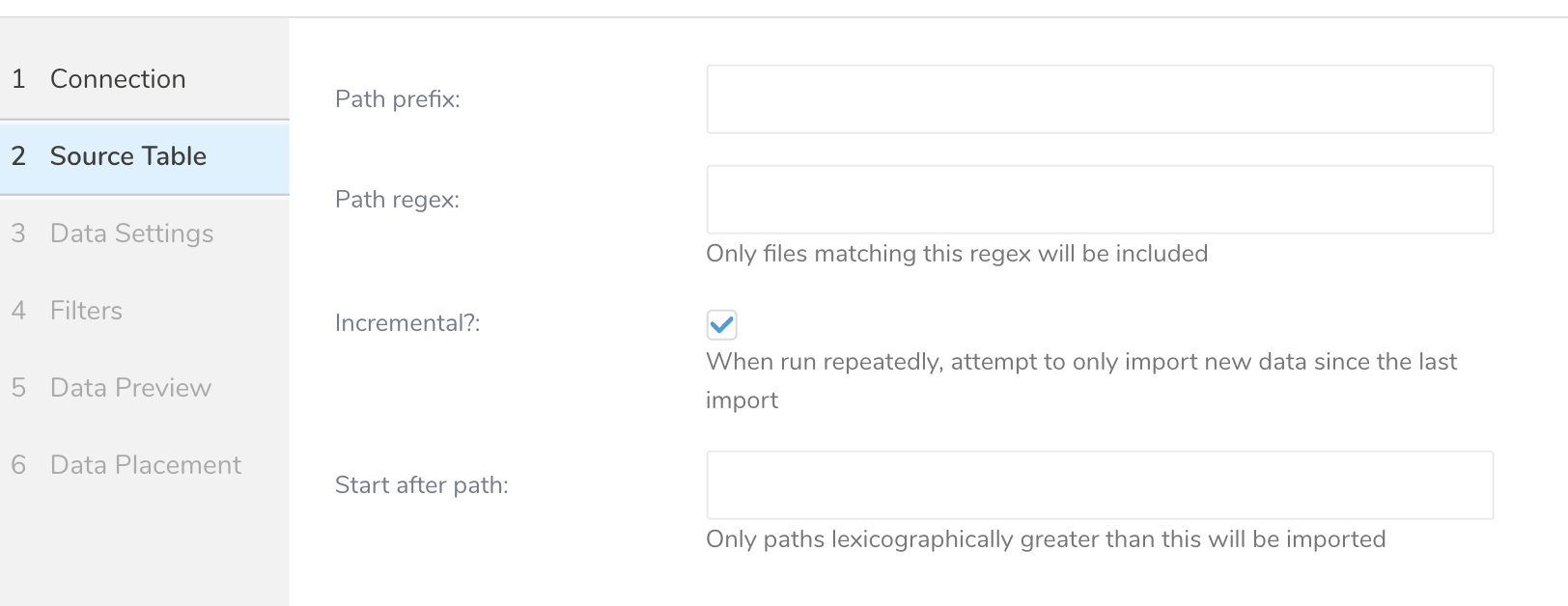

- Edit the following parameters:
| Parameters | Description |
|---|---|
| Path prefix | The prefix of target files (string, required). For example, resultoutputtest. |
| Path regex | Type a regular expression to query file paths. If a file path doesn’t match the specified pattern, the file is skipped. For example, if you specify the pattern .csv$ #, then a file is skipped if its path doesn’t match the pattern. |
| Incremental | Enables incremental loading (boolean), optional. default: true. If incremental loading is enabled, the config diff for the next execution will include last_path parameter so that the next execution skips files before the path. Otherwise, last_path is not included. |
| Start after path | Only paths lexicographically greater than this will be imported. |
- Select Next.

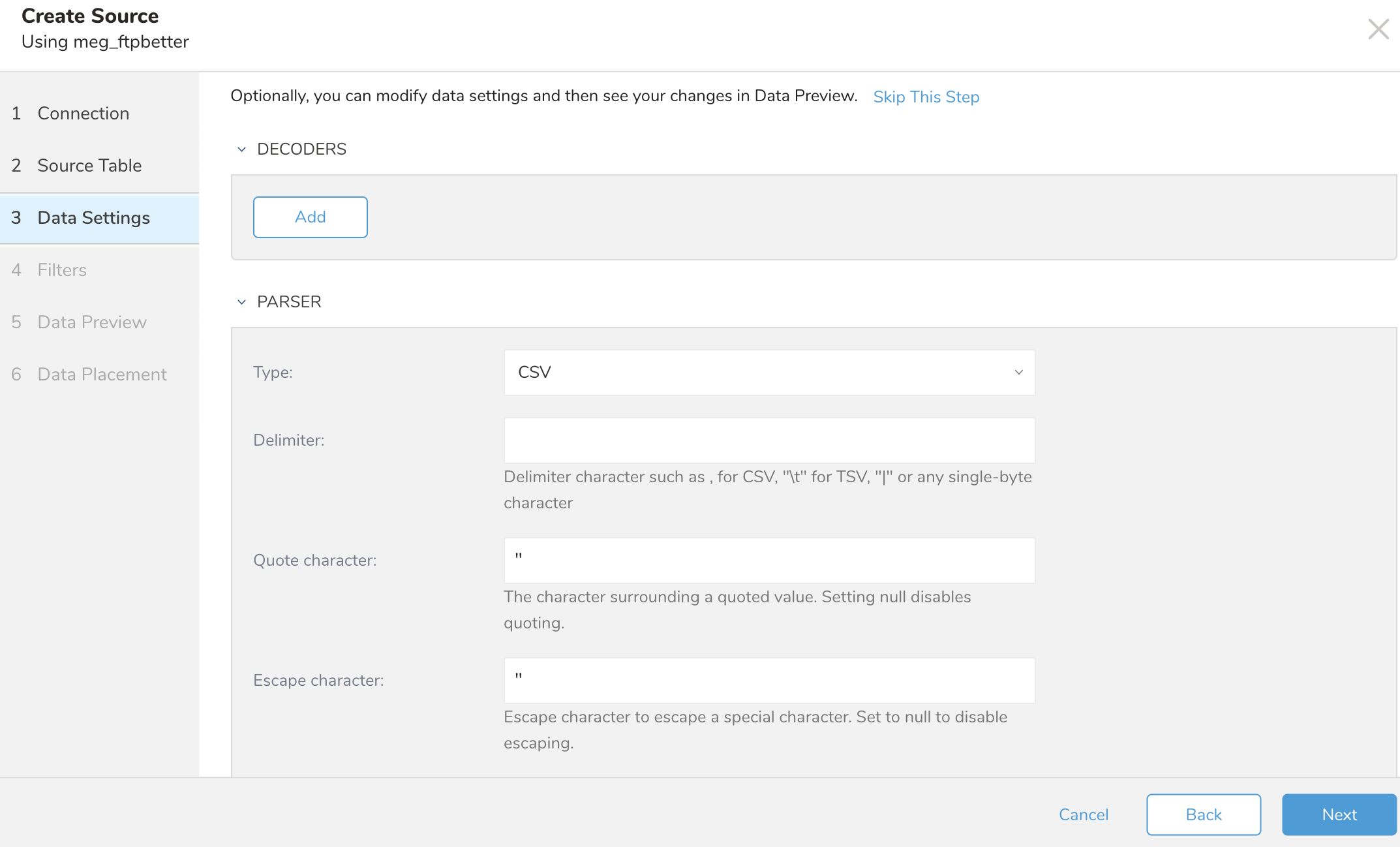

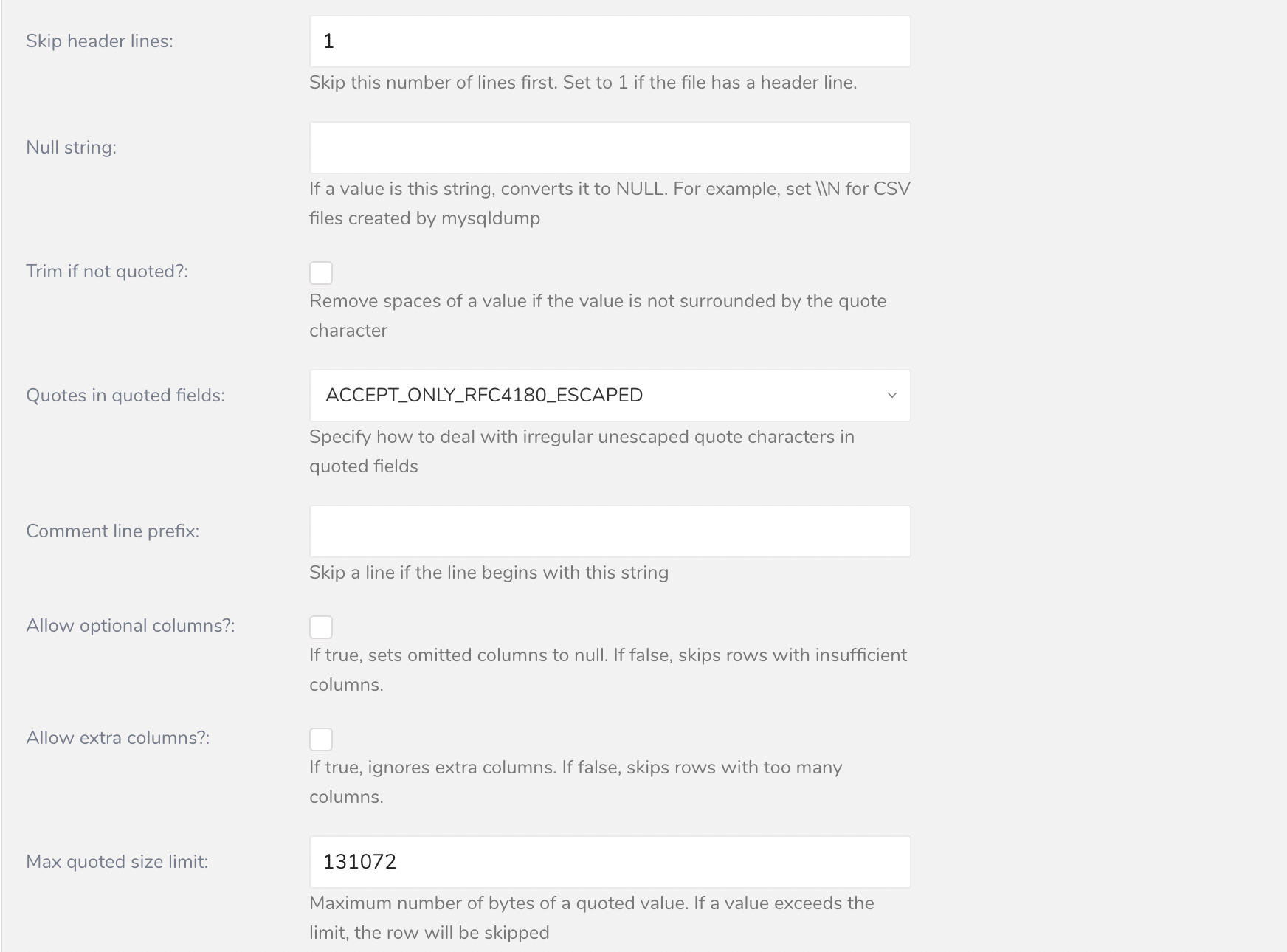

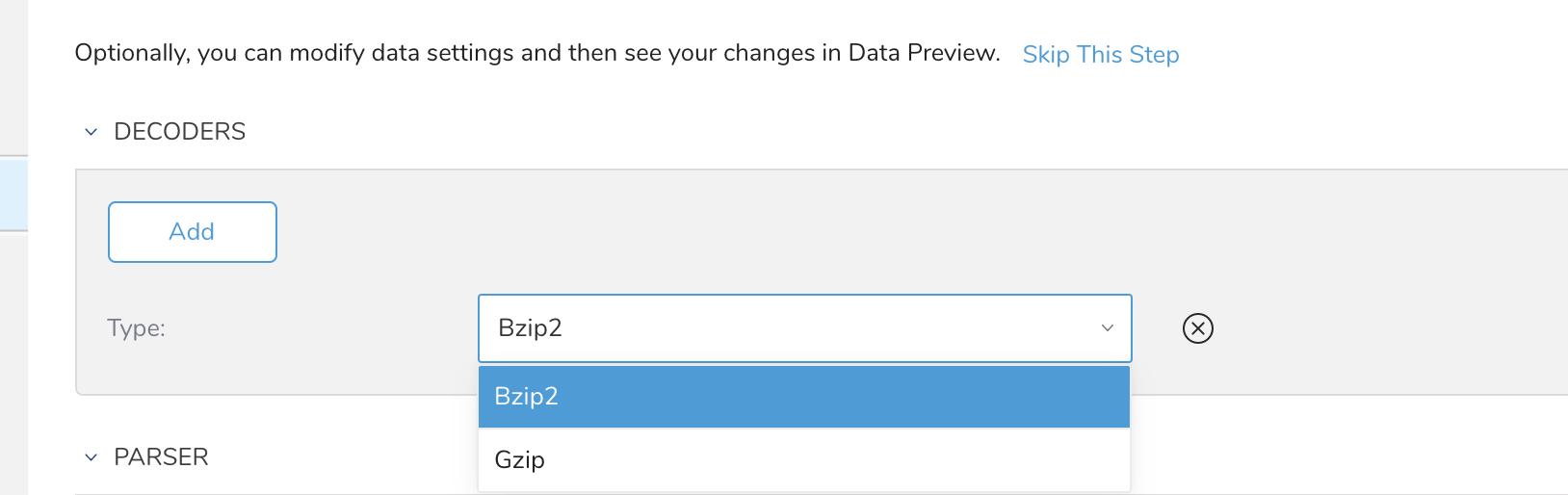

The Data Settings page can be modified for your needs or you can skip the page.
Optionally, edit the parameters.
Select Next.
Filters are available in the Create Source or Edit Source import settings for your S3, FTP, or SFTP connectors.
Import Integration Filters enable you to modify your imported data after you have completed Editing Data Settings for your import.
To apply import integration filters:
- Select Next in Data Settings.The Filters dialog opens.
- Select the filter option you want to add.
- Select Add Filter. The parameter dialog for that filter opens.
- Edit the parameters. For information on each filter type, see one of the following:
- Retaining Columns Filter
- Adding Columns Filter
- Dropping Columns Filter
- Expanding JSON Filter
- Digesting Filter
- Optionally, to add another filter of the same type, select Add within the specific column filter dialog.
- Optionally, to add another filter of a different type, select the filter option from the list and repeat the same steps.
- After you have added the filters you want, select **Next.**The Data Preview dialog opens.
You can see a preview of your data before running the import by selecting Generate Preview. Data preview is optional and you can safely skip to the next page of the dialog if you choose to.
- Select Next. The Data Preview page opens.
- If you want to preview your data, select Generate Preview.
- Verify the data.
For data placement, select the target database and table where you want your data placed and indicate how often the import should run.
Select Next. Under Storage, you will create a new or select an existing database and create a new or select an existing table for where you want to place the imported data.
Select a Database > Select an existing or Create New Database.
Optionally, type a database name.
Select a Table> Select an existing or Create New Table.
Optionally, type a table name.
Choose the method for importing the data.
- Append (default)-Data import results are appended to the table. If the table does not exist, it will be created.
- Always Replace-Replaces the entire content of an existing table with the result output of the query. If the table does not exist, a new table is created.
- Replace on New Data-Only replace the entire content of an existing table with the result output when there is new data.
Select the Timestamp-based Partition Key column. If you want to set a different partition key seed than the default key, you can specify the long or timestamp column as the partitioning time. As a default time column, it uses upload_time with the add_time filter.
Select the Timezone for your data storage.
Under Schedule, you can choose when and how often you want to run this query.
- Select Off.
- Select Scheduling Timezone.
- Select Create & Run Now.
- Select On.
- Select the Schedule. The UI provides these four options: @hourly, @daily and @monthly or custom cron.
- You can also select Delay Transfer and add a delay of execution time.
- Select Scheduling Timezone.
- Select Create & Run Now.
After your transfer has run, you can see the results of your transfer in Data Workbench > Databases.
Review the job log. Warning and errors provide information about the success of your import. For example, you can identify the source file names associated with import errors.
Within Treasure Workflow, you can specify the use of this data connector to export data.
Learn more at Using Workflows to Export Data with the TD Toolbelt.
timezone: UTC
schedule:
daily>: 02:00:00
sla:
time: 08:00
+notice:
mail>: {data: Treasure Workflow Notification}
subject: This workflow is taking long time to finish
to: [meg@example.com]
_export:
td:
dest_db: dest_db
dest_table: dest_table
ftp:
ssl: true
ssl_verify: false
+prepare_table:
td_ddl>:
database: ${td.dest_db}
create_tables: ["${td.dest_table}"]
+load_step:
td_load>: config/daily_load.yml
database: ${td.dest_db}
table: ${td.dest_table}
