DialogOne Export Integration

This feature is in BETA version. For more information, contact your Customer Success Representative.

This TD export integration allows you to write job results from Treasure Data directly to a DialogOne account.

Prerequisites

  • Basic knowledge of Treasure Data, including the TD Toolbelt.
  • An account identifier and service account JSON key provided by DialogOne.

An account Identifier is published for every user contracted with DAC. The Service Account information is published when a user makes a request to use the API.

Requirements and Limitations

You must specify query columns with exact column names (case insensitive) and data type.

Static IP Address of Treasure Data Integration

If your security policy requires IP whitelisting, you must add Treasure Data's IP addresses to your allowlist to ensure a successful connection.

Please find the complete list of static IP addresses, organized by region, at the following link:
https://api-docs.treasuredata.com/en/overview/ip-addresses-integrations-result-workers/

Use the TD Console to Create Your Connection

Create a New Connection

In Treasure Data, you must create and configure the data connection before running your query. Authentication is required as part of the data connection to access the integration.

  1. Open TD Console.
  2. Navigate to Integrations Hub > Catalog.

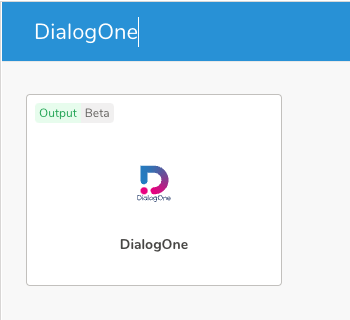

  3. Search for and select DialogOne.

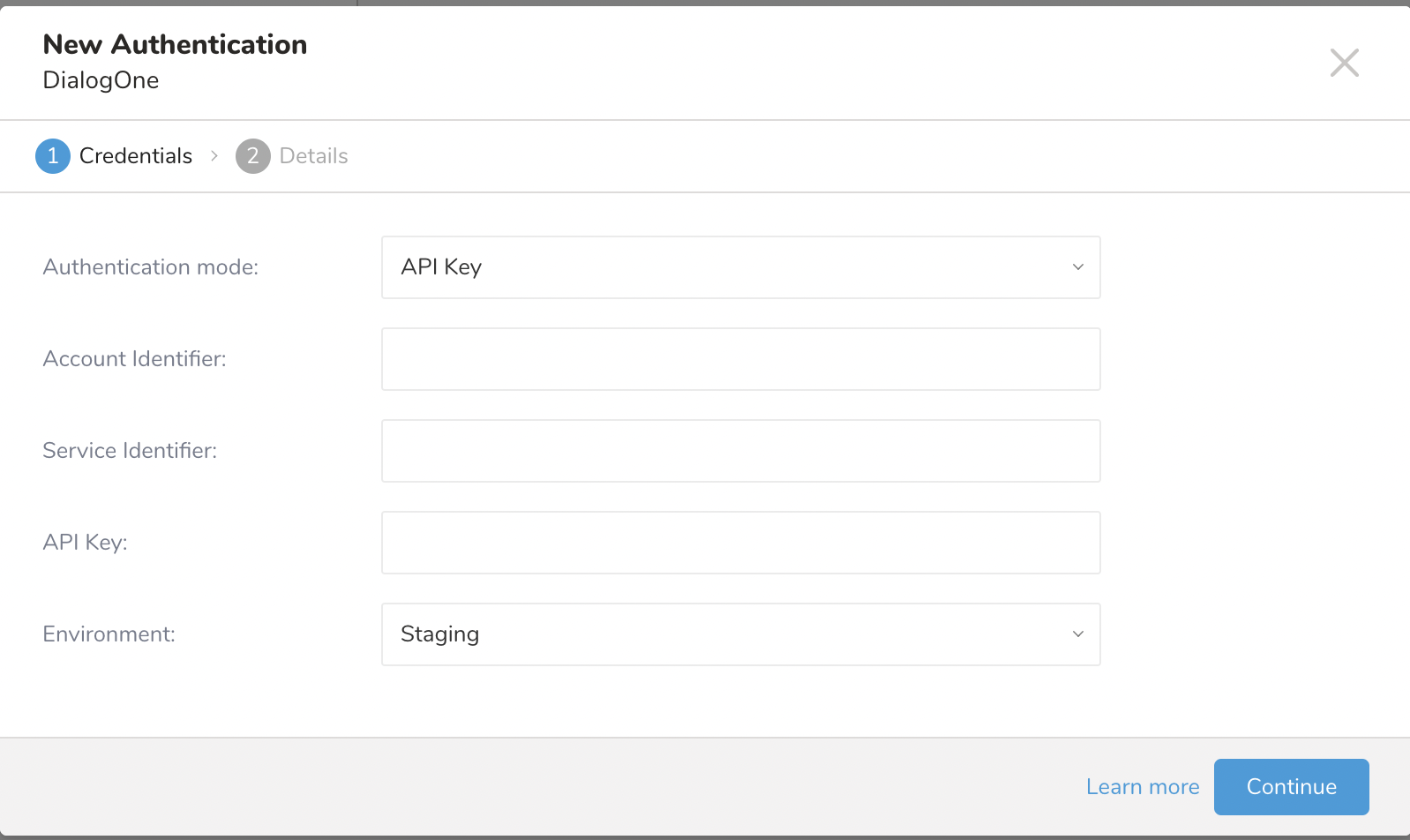

  4. Select Create Authentication.
  5. From the Authentication Method dropdown, select API Key.
  6. Enter the Account Identifier.
  7. Enter the Service Identifier.
  8. Enter the API Key.
  9. From the Environment dropdown, select Staging or Production.
  10. Select Continue.
  11. Type a name for your connection.
  12. Select Done.

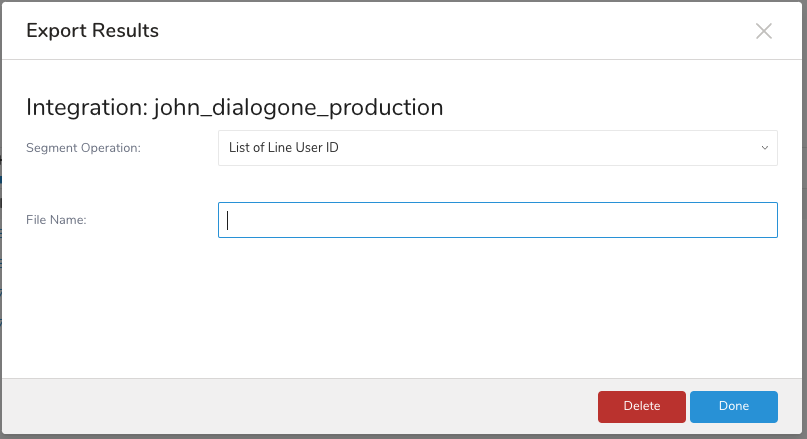

Integration Parameters for DialogOne

You need to specify your expected file name which will be used to create file upload on DialogOne server.

ParametersDescription
File NameThe name of the file is stored on the DialogOne server. If a file exists with the same name, it will be overwritten.

Define your Query

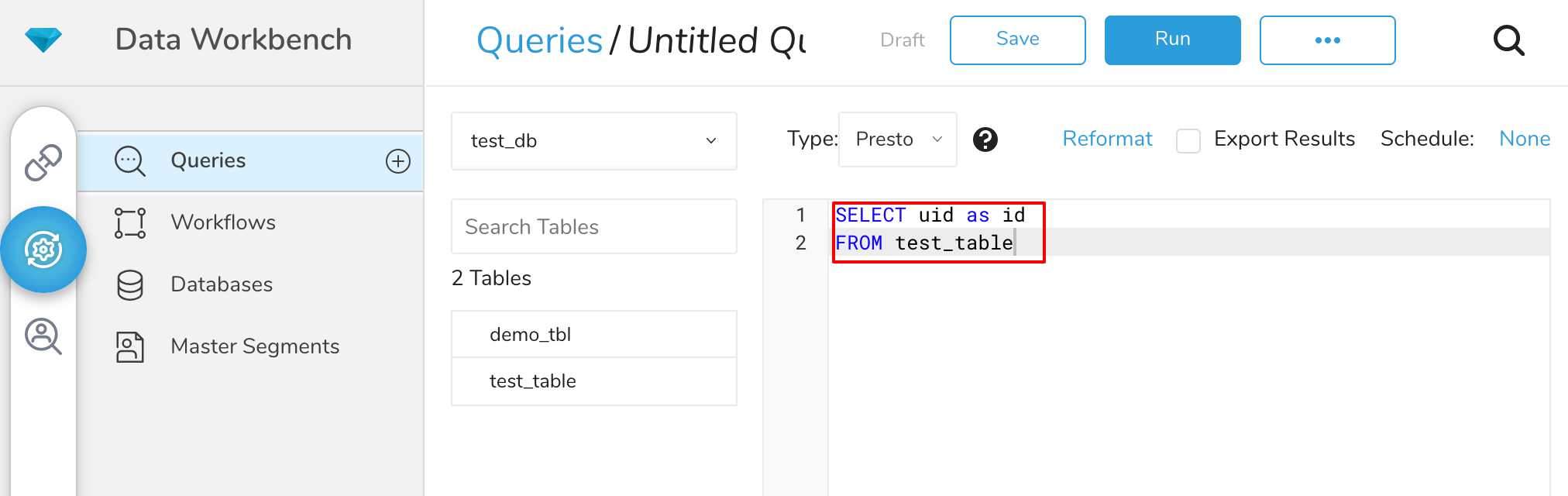

  1. Navigate to Data Workbench > Queries.
  2. Select New Query.
  3. In the database drop-down, enter the database you want to query. This example uses test_db.
  4. In the query pane, enter your SQL query.
  5. Select Run to validate the results of the query.

Your query requires only one column with the name id (case insensitive)  of data type 'String'. Other columns will be ignored.

custom object query

SELECT id FROM your_table;

(Optional) Schedule Query Export Jobs

You can use Scheduled Jobs with Result Export to periodically write the output result to a target destination that you specify.

Treasure Data's scheduler feature supports periodic query execution to achieve high availability.

When two specifications provide conflicting schedule specifications, the specification requesting to execute more often is followed while the other schedule specification is ignored.

For example, if the cron schedule is '0 0 1 * 1', then the 'day of month' specification and 'day of week' are discordant because the former specification requires it to run every first day of each month at midnight (00:00), while the latter specification requires it to run every Monday at midnight (00:00). The latter specification is followed.

Scheduling your Job Using TD Console

  1. Navigate to Data Workbench > Queries

  2. Create a new query or select an existing query.

  3. Next to Schedule, select None.

  4. In the drop-down, select one of the following schedule options:

    Drop-down ValueDescription
    Custom cron...Review Custom cron... details.
    @daily (midnight)Run once a day at midnight (00:00 am) in the specified time zone.
    @hourly (:00)Run every hour at 00 minutes.
    NoneNo schedule.

Custom cron... Details

Cron ValueDescription
0 * * * *Run once an hour.
0 0 * * *Run once a day at midnight.
0 0 1 * *Run once a month at midnight on the morning of the first day of the month.
""Create a job that has no scheduled run time.
 *    *    *    *    *
 -    -    -    -    -
 |    |    |    |    |
 |    |    |    |    +----- day of week (0 - 6) (Sunday=0)
 |    |    |    +---------- month (1 - 12)
 |    |    +--------------- day of month (1 - 31)
 |    +-------------------- hour (0 - 23)
 +------------------------- min (0 - 59)

The following named entries can be used:

  • Day of Week: sun, mon, tue, wed, thu, fri, sat.
  • Month: jan, feb, mar, apr, may, jun, jul, aug, sep, oct, nov, dec.

A single space is required between each field. The values for each field can be composed of:

Field ValueExampleExample Description
A single value, within the limits displayed above for each field.
A wildcard '*' to indicate no restriction based on the field.'0 0 1 * *'Configures the schedule to run at midnight (00:00) on the first day of each month.
A range '2-5', indicating the range of accepted values for the field.'0 0 1-10 * *'Configures the schedule to run at midnight (00:00) on the first 10 days of each month.
A list of comma-separated values '2,3,4,5', indicating the list of accepted values for the field.0 0 1,11,21 * *'Configures the schedule to run at midnight (00:00) every 1st, 11th, and 21st day of each month.
A periodicity indicator '*/5' to express how often based on the field's valid range of values a schedule is allowed to run.'30 */2 1 * *'Configures the schedule to run on the 1st of every month, every 2 hours starting at 00:30. '0 0 */5 * *' configures the schedule to run at midnight (00:00) every 5 days starting on the 5th of each month.
A comma-separated list of any of the above except the '*' wildcard is also supported '2,*/5,8-10'.'0 0 5,*/10,25 * *'Configures the schedule to run at midnight (00:00) every 5th, 10th, 20th, and 25th day of each month.
  1. (Optional) You can delay the start time of a query by enabling the Delay execution.

Execute the Query

Save the query with a name and run, or just run the query. Upon successful completion of the query, the query result is automatically exported to the specified destination.

Scheduled jobs that continuously fail due to configuration errors may be disabled on the system side after several notifications.

(Optional) You can delay the start time of a query by enabling the Delay execution.

Activate a Segment in Audience Studio

You can also send segment data to the target platform by creating an activation in the Audience Studio.

  1. Navigate to Audience Studio.
  2. Select a parent segment.
  3. Open the target segment, right-mouse click, and then select Create Activation.
  4. In the Details panel, enter an Activation name and configure the activation according to the previous section on Configuration Parameters.
  5. Customize the activation output in the Output Mapping panel.

  • Attribute Columns
    • Select Export All Columns to export all columns without making any changes.
    • Select + Add Columns to add specific columns for the export. The Output Column Name pre-populates with the same Source column name. You can update the Output Column Name. Continue to select + Add Columnsto add new columns for your activation output.
  • String Builder
    • + Add string to create strings for export. Select from the following values:
      • String: Choose any value; use text to create a custom value.
      • Timestamp: The date and time of the export.
      • Segment Id: The segment ID number.
      • Segment Name: The segment name.
      • Audience Id: The parent segment number.
  1. Set a Schedule.

  • Select the values to define your schedule and optionally include email notifications.
  1. Select Create.

If you need to create an activation for a batch journey, review Creating a Batch Journey Activation.

Optionally Configure Export Results in Workflow

Within Treasure Workflow, you can specify the use of a data connector to export data.

Learn more at Using Workflows to Export Data with the TD Toolbelt.

_export:
  td:
    database: dialog_one_db

+dialog_one_export_task:
  td>: export.sql
  database: ${td.database}
  result_connection: new_created_dialog_one_auth
  result_settings:
    type: dialog_one
    account_identifier: account_identifier
    service_identifier: service_identifier
    api_key: api_key
    file_name: xxxxx
