# Continuous Deployment of Treasure Workflow with Azure DevOps

Toru Takahashi
Treasure Workflow can be used with version control tools like Git and CI/CD. However, a recent enablement now allows you to set up a continuous deployment pipeline using Azure Repos and Azure Pipelines in Azure DevOps Sevices.

## Prerequisites

- Azure Repos
- Azure Pipelines
- Treasure Data User Account


## Azure Repo repository

If you have not already done so, create a `git` repository on Azure Repo for your workflow project. For more information on how to use Azure Repos, see the [Azure Repos documentation](https://learn.microsoft.com/en-us/azure/devops/repos/?view=azure-devops).

I recommend having the following directory structure in your Treasure Workflow repo.


```bash
my_project
├── README.md
├── config
│   ├── params.test.yml     <- Configuration file for run through test. Mirrors params.yml except for `td.database`
│   └── params.yml          <- Configuration file for production
├── awesome_workflow.dig    <- Main workflow to be executed
├── ingest.dig              <- Data ingestion workflow
├── py_scripts              <- Python scripts directory
│   ├── __init__.py
│   ├── data.py             <- Script to upload data to Treasure Data
│   └── my_script.py        <- Main script to execute e.g. Data enrichment, ML training
├── queries                 <- SQL directory
│   └── example.sql
├── run_test.sh             <- Test shell script for local run through test
└── test.dig                <- Test workflow for local run through test
└── azure-pipeline.yml           <- Deploy this repo to Treasure Workflow through Azure Pipeline (This file is automatically created when a new pipeline is created)
```

![Directory Layout](/assets/azure_1.2e1f9e453fd4d3c4f77bac43b71bee3f441310cb15d7fadc8ba826af64120c07.8446fe5d.png)

For more information on custom script development, see the blog post "[py> operator development guide for Python users](https://chezo.uno/blog/2020-03-05_py-operator-development-guide-for-python-users)."

## Configure Azure Pipeline

To createa new Azure Pipeline for your project:

1. Select **Azure Repos Git** in Select section
2. Select **Python Package** in Configure section


![image2](/assets/azure_2.7ac650b876c6b701675cdf2785f82e26ff3679113167480e7f782ce407dd8238.8446fe5d.png)

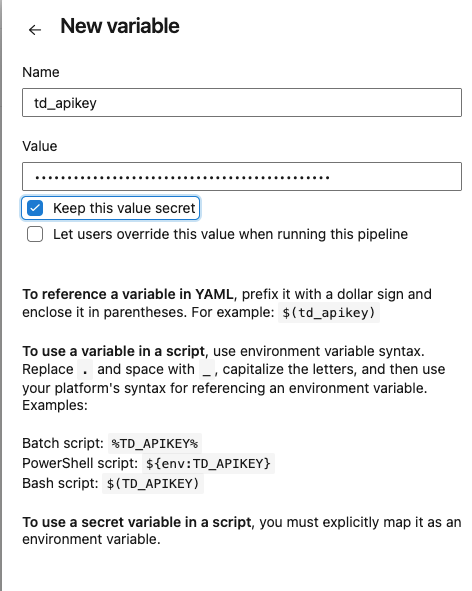

1. Set Variables on the right-hand side.
2. Enter **td_apikey** into the Name field
3. Enter your TD API key in the Value field.
4. Select **Keep this value secret**.
5. Select **Save variables**.


![image3](/assets/azure_3.1802282ec40ed412fba896a9c0211ccd7f91ccc9711e4434eaf67ead15e40e6a.8446fe5d.png)

1. Update the Azure Pipeline configuration file for the project. You must update `tdWorkflowEndpoint` for your account region and `tdPrjName` for your workflow project in variables



```yaml
jobs:
- job: 'td_workflow_deployment'
  pool:
    vmImage: 'ubuntu-latest'
  strategy:
    matrix:
      Python311:
        python.version: '3.11'

  variables:
    tdWorkflowEndpoint: api-workflow.treasuredata.com
    # US: api-workflow.treasuredata.com
    # EU01: api-workflow.eu01.treasuredata.com
    # Tokyo: api-workflow.treasuredata.co.jp
    # AP02: api-workflow.ap02.treasuredata.com
    # Ref. /en/overview/aboutendpoints
    tdPrjName: azure_devops_wf # YOUR PROJECT NAME


  steps:
  - script: pip install tdworkflow mypy_extensions
    displayName: 'Install tdworkflow lib'

  - task: PythonScript@0
    inputs:
      scriptSource: inline
      script: |
        import os
        import sys
        import shutil
        import tdworkflow
        endpoint = "$(tdWorkflowEndpoint)"
        apikey = "$(td_apikey)"
        project_name = "$(tdPrjName)"
        shutil.rmtree('.git/') # Remove unnessary temp files
        client = tdworkflow.client.Client(endpoint=endpoint, apikey=apikey)
        project = client.create_project(project_name, ".")
```

For more information on Azure Pipeline configuration, see "[Azure Pipelines: Create and target an environment](https://learn.microsoft.com/bs-latn-ba/azure/devops/pipelines/process/environments?view=azure-devops)."

## Configure TD Credentials

For workflows to be pushed to Treasure Data, you must configure a TD Master API Key for the project. See [Getting Your API Keys](https://docs.treasuredata.com/products/my-settings/getting-your-api-keys) for more information.

## Start Deploying

Azure Pipelines pushes your workflow to Treasure Data and does this every time you push a change to Azure Repos. You can change a deployment condition depending on your needs. Once deployment is completed, Treasure Workflow on Treasure Data is updated automatically.

![image4](/assets/azure_4.31fe652714c60776ee487e27479eb613e3df303dde715c157975f99b8da25aa4.8446fe5d.png)
